LimePath EcoWalk UV System
Application

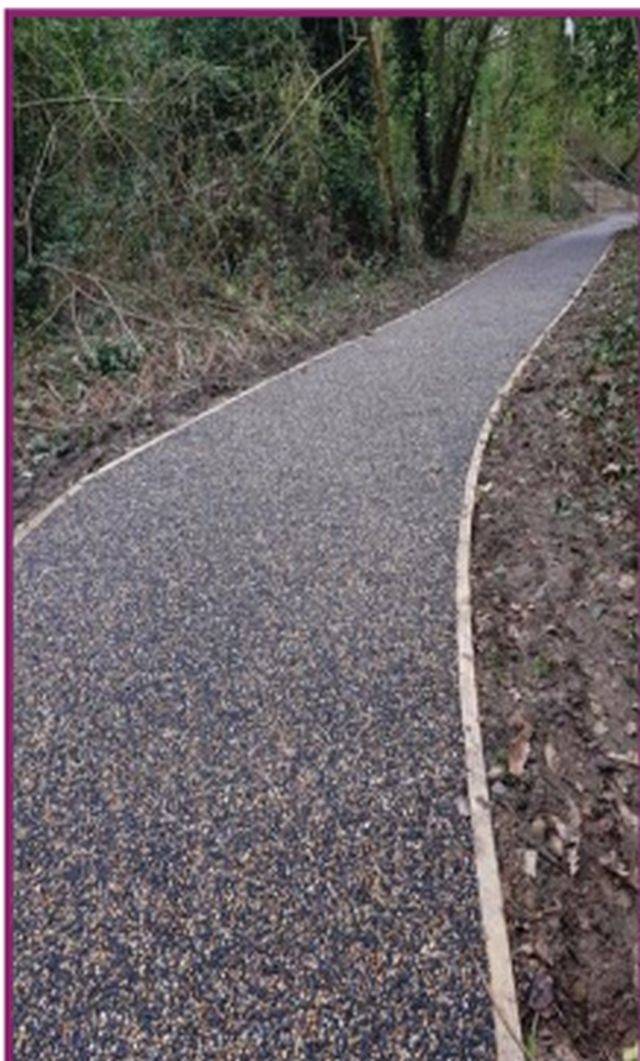

Suitable for pathways.

Description

LimePath EcoWalk UV is a combination of recycled rubber sourced from used vehicle tyres and natural aggregates, bound together with a specially formulated aliphatic HDI polyurethane resin, which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A; see FeRFA guidance notes, 2020.

LimePath EcoWalk UV was developed to be a SuDS-compliant, permeable, resin-bound system that provides environmental benefits as a surface for pedestrian and low vehicular traffic, remaining slip-resistant, resistant to freeze-thaw, decorative, functional and seamless.

The environmentally designed open matrix allows water to drain through to the base, eliminating water ponding and allowing water to drain to planted areas or land drains. The ‘no binder’ system eliminates the need for macadam and/ or concrete bases, reducing the impact of additionally sourced materials, and greatly reducing transportation and emission.

Edgings created from brick, stone, timber or steel should be installed to retain and protect the system.

Resin and aggregate:

LimePath EcoWalk UV system uses an ultraviolet (UV)-resistant polyurethane resin, and will not yellow on exposure to UV light. This is a more attractive option than some other types of resin, which can yellow and dramatically alter the appearance of the finished surface. The resin is formulated using aliphatic HDI, which will not deteriorate nor become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A; see FeRFA guidance notes, 2020.

The performance and appearance of the finished surface is dependent on the aggregate used (see Limegate Solutions LimePath EcoWalk UV mix blend swatch sheet for colour options).

The LimePath EcoWalk UV System Aggregate blends have been designed to achieve strength, resilience, porosity and decoration.

Features and benefits:

  • Over 25% recycled content.
  • Tested to slip-resistant BS 8204-6.
  • SuDS-compliant, permeable paving in excess of 1000 L/m²/minute.
  • Reduced transportation and emissions.
  • Reduction of waste to landfill.
  • Resistant to freeze-thaw.
  • Reduction in oil-derived binder courses.
  • Suitable for nature walks, pedestrian paths and local authority recreational parks.
  • All aggregates selected to reduce the chances of rust appearing.
  • Optimized ratio of resin to rubber/ aggregate mix blends.
  • Foot traffic after 14–15 hours at 20°C.
  • LimePath EasiWalk UV is a specialist product, and must only be applied by specialist applicators.

Manufactured UKAS ISO9001 in line with the guidance notes published by the Resin Bound Technical Committee as part of FeRFA: the Resin Flooring Association.

Application:

Suitable for pathways.

General information
Features

Tested to slip-resistant BS 8204-6

SuDS-compliant permeable paving: 850 L/m²/minute

Natural and recycled aggregate available

25 mm depth installation onto an existing concrete base

35/40 mm depth installation, directly onto type 1 or 3

Material

Resin and recycled rubber and aggregate

Uniclass 2015
Ss_30_14_02_71 Resin-bound aggregate light-duty paving systemsPrimary
CAWS

Q23/225 Proprietary resin bound chippings

Specification data - Resin-bound aggregate light-duty paving systems
Product Reference

LimePath EcoWalk UV System

Geotextile below granular sub-base

Required

Not required

Granular sub-base

150 mm minimum well-compacted type 3 granular sub-base or similar approved – SuDS-compliant (no binder course)

Surface course

LimePath, 40 mm minimum depth

Edge restraints

Required

Impermeable membrane

Not required

Required

Thickness

35 mm

40 mm

Aggregate

Dior 10 mm

Espresso 10 mm

Honey gold 10 mm

Honey pebble 10 mm

Marscape 10 mm

Silver buff 10 mm

Woodland walk 10 mm

Standard product features

Colour:

Various. Refer to manufacturer mix blend sheets.

Features:

  • Tested to slip-resistant BS 8204-6.
  • SuDS-compliant permeable paving: 850 L/m²/minute.
  • Natural and recycled aggregate available.
  • 25 mm depth installation onto an existing concrete base.
  • 35/40 mm depth installation, directly onto type 1 or 3.

Material:

Resin and recycled rubber and aggregate.

Recycled content:

>25%. Meets the environmental policy requirements to increase the use of recycled materials in excess of 50%.

Country of origin:

United Kingdom.

Environmental information
Recycled content

>25%. Meets the environmental policy requirements to increase the use of recycled materials in excess of 50%

Third party certifications
  • FeRFA: UKAS ISO9001
