Light Industrial Gully (Pedestrian)
Description

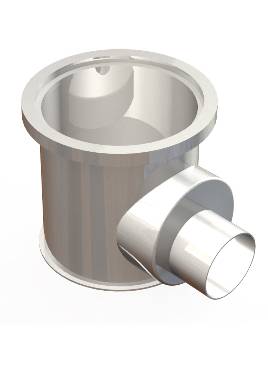

The KHCR265/4"RD Gully is a Round Body, Round Top/Side Outlet Gully for Heavy Duty Areas with High Flow Rates. This is a sealed clean room gully with a strong positive seal created by machining away a 10mm groove from a 20mm top plate. A 10mm top plate with a recessed 'o-ring' creates the seal. This top plate is then removable with a heavy duty suction cup available as an accessory. They are designed for use primarily in Food/Beverage/Pharmaceutical factories. They can be used in both light duty and very heavy duty trafficked areas (sealed gullies are most often used in laboratories or clean rooms which are limited to pedestrian traffic - however the 10mm top plate makes it possible to drive heavy factory traffic over these gullies). The KHCR265/4"RD standard gully takes 10mm thick sealed gratings but 10mm slotted and perforated gratings can also be used.

Features and Benefits:

  • Grade 304 (1.4301) or 316 (1.4401) Stainless Steel to BS EN 10088
  • Strong
  • Short lead time
  • Usable in both heavy and light duty areas
  • Suitable for internal factory drainage and external civil drainage projects

General information
Features

Custom patterns available, lock down as standard, optional trap available, ex stock

Material

Stainless steel

Shape

Square

Size

162 x 93 x 110 x 162 mm

162 x 185 x 110 x 162 mm

162 x 185 x 110 x 162 mm

162 x 250 x 110 x 162 mm

Uniclass 2015
Pr_65_52_24_31 Floor gulliesPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
