Leisure Lockers
Verified by manufacturer 2 months ago
Accessible locker
Accessible locker

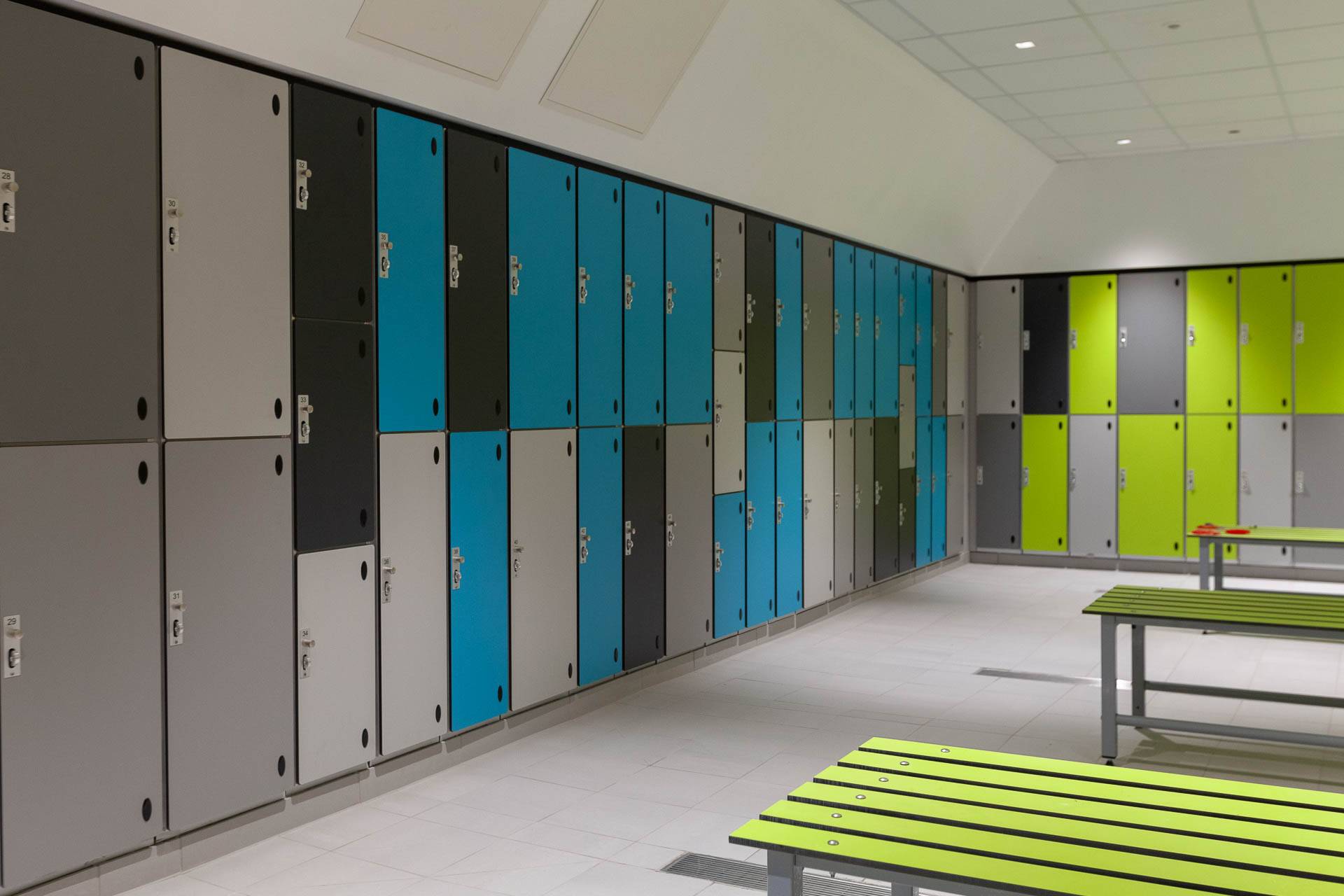

Aluminium lockers with laminate doors for wet area. Ideal for areas such as leisure centres, swimming pool changing rooms, and spas.
Application
Suitable for use in wet and humid environments, these lockers are ideal for shower areas, changing rooms, and other high moisture spaces within leisure centres, gyms, swimming pools and sports facilities.
Description
Leisure Lockers are manufactured with durability and hygiene in mind, featuring a robust aluminium body and 12mm solid grade laminate (SGL) doors.
The curved, single-piece locker is designed without sharp edges or dirt traps, making it easy to clean and ideal for high-traffic and high-humidity environments. Integrated extruded aluminium door frames and continuous hinges provide long-lasting performance, even with frequent use.
Features and benefits:
- Available in a variety of door colours and compartment configurations to suit project requirements.
- Plant-on doors create a clean, uninterrupted wall of colour.
- Door frame uprights are constructed from heavy-duty aluminium.
- Lockers can be nested on-site for seamless integration.
- Hygienic design with raised internal corners to facilitate cleaning.
- Supplied fully assembled; installation service available upon request.
General information
Color | Black Beige Blue Cream Orange Manufacturer guidanceSelect from the manufacturers colour range. |
Material | Aluminium Guidance for specification option: Body and door frame: Heavy-gauge extruded aluminium, profiled to allow smooth removal of bags. Laminate Guidance for specification option: Door: 12 mm-thick solid grade laminate (SGL). |
Shape | Rectangle Square |
Length | 500 mm 400 mm Manufacturer guidanceDepth. |
Width | 300 mm 400 mm |
Height | 1800 mm |
Warranty description | One year Guidance for specification option: Standard. Manufacturer guidanceOther options available, consult with the manufacturer. |
Uniclass | |
CAWS | N10/10 Purpose-made N10/220 Lockers |
Specification data - Lockers
Classification data | |
Locker type | Aluminium laminate locker. |
Dimensions | 1800 x 300 x 450 mm. 1800 x 300 x 500 mm. 1800 x 400 x 450 mm. 1800 x 400 x 500 mm. Bespoke. Guidance for specification option: Bespoke sizes available on request. |
Material | Solid grade laminate (SGL) door and aluminium frame. |
Finish | Smooth. Guidance for specification option: Profiled to allow smooth removal of bags. |
Colour | Guidance for specification option: A wide range of colours available from Helmsman standard colour cards. Consult manufacturer for information. |
Type | Accessible locker. Guidance for specification option: Height, 917 mm. Special order. Guidance for specification option: Other heights are available on request. Consult manufacturer and insert requirement. |
Locking | Coin refund lock/ free use. Guidance for specification option: See 'Options' below for acceptable coinage and insert requirements. Coin operated lock, RETAIN. Guidance for specification option: Includes coin collection cash box, located on the inside of each door. |
Accessories | Not required. Numbering. Guidance for specification option: Standard oval laminate number plate. Plate numbered to suit number on patron key number disc or wrist strap. Aluminium plate with engraved numbers optional upgrade. Optional to have Braille numbering. Stands / seats. Guidance for specification option: Stand frames are manufactured from 40 mm electric resistance welded (ERW) steel tube, zinc plated and coloured. Seats are manufactured from ash hardwood, finished with two coats catalysed lacquer, or solid grade laminate (SGL). End panels. Guidance for specification option: All necessary fixings supplied. Wristbands. Guidance for specification option: Available in a variety of colours. Consult manufacturer for information. Plinth. Guidance for specification option: Whilst the locker can be mounted straight to the floor, the manufacturer recommends they be raised slightly above floor level. Infills. Guidance for specification option: Not required. Manufactured from Solid Grade Laminate. Slopping tops. Guidance for specification option: Solid grade laminate from manufacturer’s colour range. |
Base and top units | Pressed aluminium. |
Shelf units | Pressed aluminium. |
Door panel | 12mm solid grade laminate. |
Hinges | Aluminium spring loaded for automatic door closing. |
End panel | 12 mm solid grade laminate (SGL). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Manufacturer guidanceLaminate material is manufactured in Italy. |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Body and door frame: Heavy-gauge extruded aluminium, profiled to allow smooth removal of bags. Laminate Guidance for specification option: Door: 12 mm-thick solid grade laminate (SGL). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Aluminium is 100% recyclable. Manufacturer guidanceLaminate have a long product life. |
Expected Life | 15 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
Leisure Lockers
Glass Colour Brochure
Helmsman Leisure Brochure
Product Data Sheet - Leisure Lockers
Case studies
Blyth Sports Centre Lockers and Bench Seating Project
Bunn Leisure Holiday Park Lockers
Dairy Hall Leisure Centre
Ponteland High School Lockers Project
University of Strathclyde Health & Wellbeing Centre
St Sidwells Point Leisure Centre Project
Leisure Lockers at Colraine Leisure Centre in Northern Ireland
Leisure Lockers at North City Operation Depot
Leisure Lockers at Sobell Leisure Centre
Leisure Lockers Project at Central Park Leisure Centre, Romford
