Leicester Multi Yellow Stock
Verified by manufacturer 2 months ago

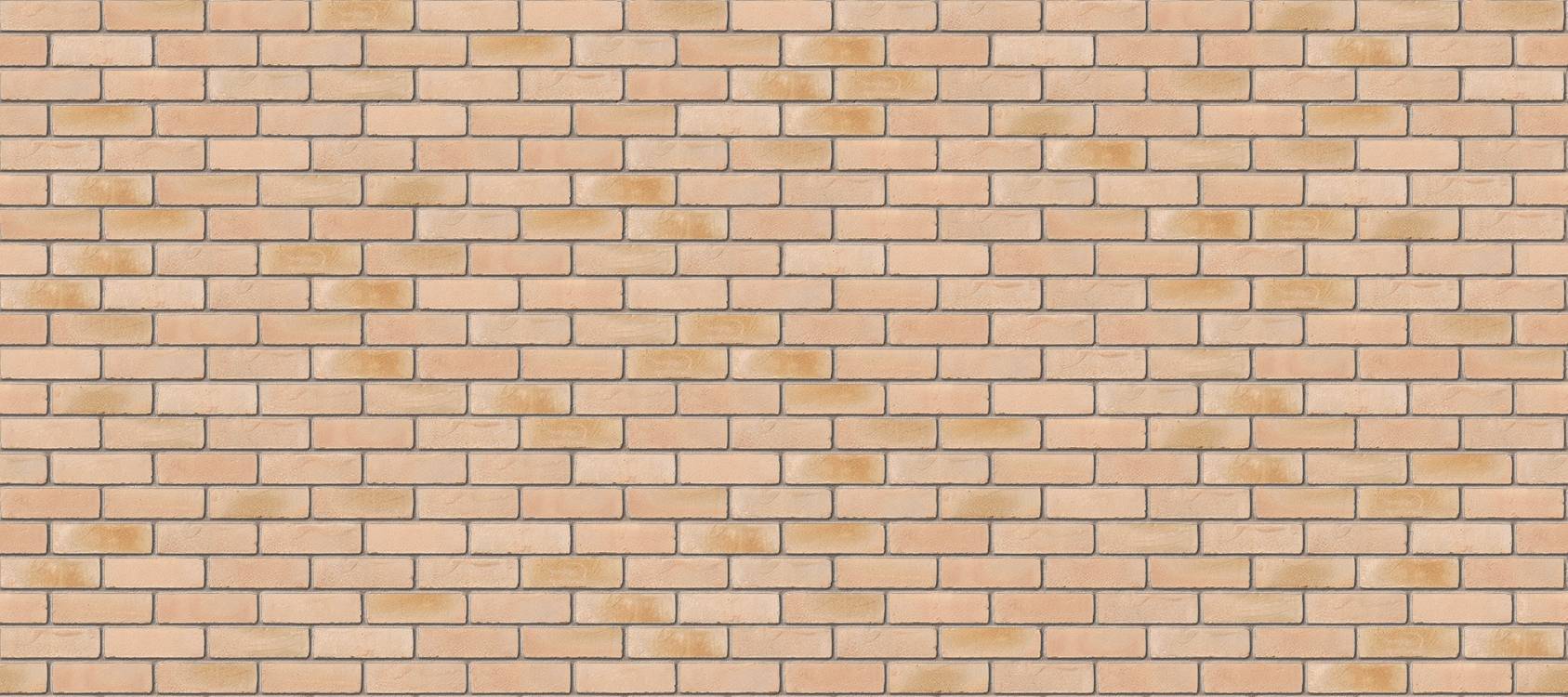

Sandfaced facing brick.
Application
Brickwork applications.
Description
Buff, 2 kg, sand faced, clay facing bricks.
Features and benefits:
- Manufactured in Leicester.
- Single frog configuration.
- Manufactured to BS EN77-1.
General information
Color | Yellow |
Finish | Sandfaced |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | Q10/130 Clay brick Q10/20 Clay brick F10/5 Facing brickwork F10/110 Clay facing brickwork |
SKU Code | A0841A |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 15 N/mm². |
Durability designation | F2 S2. |
Density | |
Gross dry | 1450 kg/m³. |
Net dry | 1580 kg/m³. |
Tolerance | T2, R1. |
Water absorption | 25%. |
Configuration | Frogged. |
Thermal conductivity | 0.69 K. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Class A1 to BS EN 13501-1. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
