Description

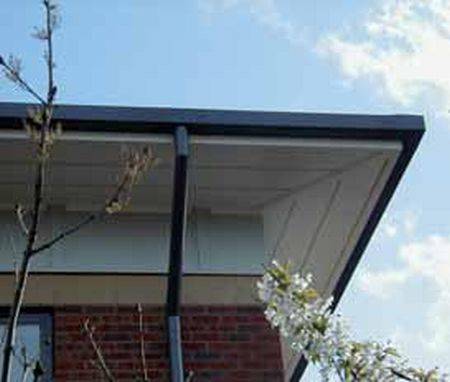

Pressed aluminium box gutters, with `joggle joints`. The gutters can be either direct or fascia bracket fixed at 750 mm centres maximum. Available in mill finish or polyester powder coated on the external face, the system is available with a range of fittings.

General information
Size

100 x 75 mm

125 x 100 mm

150 x 100 mm

150 x 150 mm

200 x 150 mm

As drawing ___

Uniclass 2015
Aluminium eaves gutters (Pr_65_50_35_06)Primary
Specification data - Aluminium eaves gutters
Product Reference

Legion Box Gutter

Size

100 x 75 mm

125 x 100 mm

150 x 100 mm

150 x 150 mm

200 x 150 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Box gutters up to 150 x 150 mm are made from 1.5 mm aluminium alloy sheet; larger sizes are manufactured from 2.0 mm aluminium alloy sheet.

Additional profiles, faceted and radius box gutters can be supplied to order.

Product Options

Size:

100 x 75 mm:

  • 43BG0.5S - 0.5 m long.
  • 43BG1S - 1.0 m long.
  • 43BG2S - 2.0 m long.
  • 43BG2.5S - 2.5 m long.
  • 43BG3S - 3 m long.

125 x 100 mm:

  • 54BG0.5S - 0.5 m long.
  • 54BG1S - 1.0 m long.
  • 54BG2S - 2.0 m long.
  • 54BG2.5S - 2.5 m long.
  • 54BG3S - 3 m long.

150 x 100 mm:

  • 64BG0.5S - 0.5 m long.
  • 64BG1S - 1.0 m long.
  • 64BG2S - 2.0 m long.
  • 64BG2.5S - 2.5 m long.
  • 64BG3S - 3 m long.

150 x 150 mm:

  • 66BG0.5S - 0.5 m long.
  • 66BG1S - 1.0 m long.
  • 66BG2S - 2.0 m long.
  • 66BG2.5S - 2.5 m long.
  • 66BG3S - 3 m long.

200 x 150 mm:

  • 86BG0.5S - 0.5 m long.
  • 86BG1S - 1.0 m long.
  • 86BG2S - 2.0 m long.
  • 86BG2.5S - 2.5 m long.
  • 86BG3S - 3 m long.

Angles:

100 x 75 mm gutters:

  • 43BAI90 - 90º internal.
  • 43BAX90 - 90º external.
  • 43BAI135 - 135º internal.
  • 43BAX135 - 135º external.
  • 43BAN - non standard.

125 x 100 mm gutters:

  • 54BAI90 - 90º internal.
  • 54BAX90 - 90º external.
  • 54BAI135 - 135º internal.
  • 54BAX135 - 135º external.
  • 54BAN - non standard.

150 x 100 mm gutters:

  • 64BAI90 - 90º internal.
  • 64BAX90 - 90º external.
  • 64BAI135 - 135º internal.
  • 64BAX135 - 135º external.
  • 64BAN - non standard.

150 x 150 mm gutters:

  • 66BAI90 - 90º internal.
  • 66BAX90 - 90º external.
  • 66BAI135 - 135º internal.
  • 66BAX135 - 135º external.
  • 66BAN - non standard.

200 x 150 mm gutters:

  • 86BAI90 - 90º internal.
  • 86BAX90 - 90º external.
  • 86BAI135 - 135º internal.
  • 86BAX135 - 135º external.
  • 86BAN - non standard.

Outlets:

100 x 75 mm gutters:

  • 43BO2R - 63 mm diameter.
  • 43BO3R - 76 mm diameter.
  • 43BO4R - 101 mm diameter.
  • 43BO2S - 63 mm square.
  • 43BO3S - 76 mm square.
  • 43BO4S - 101 mm square.
  • 43BO3 - 101 mm x 76 mm rectangle.

125 x 100 mm gutters:

  • 54BO2R - 63 mm diameter.
  • 54BO3R - 76 mm diameter.
  • 54BO4R - 101 mm diameter.
  • 54BO2S - 63 mm square.
  • 54BO3S - 76 mm square.
  • 54BO4S - 101 mm square.
  • 54BO3 - 101 mm x 76 mm rectangle.

150 x 100 mm gutters:

  • 64BO2R - 63 mm diameter.
  • 64BO3R - 76 mm diameter.
  • 64BO4R - 101 mm diameter.
  • 64BO2S - 63 mm square.
  • 64BO3S - 76 mm square.
  • 64BO3 - 101 mm x 76 mm rectangle.
  • 64BO4S - 101 mm square.

150 x 150 mm gutters:

  • 66BO2R - 63 mm diameter.
  • 66BO3R - 76 mm diameter.
  • 66BO4R - 101 mm diameter.
  • 66BO2S - 63 mm square.
  • 66BO3S - 76 mm square.
  • 66BO4S - 101 mm square.
  • 66BO3 - 101 mm x 76 mm rectangle.

200 x 150 mm gutters:

  • 86BO2R - 63 mm diameter.
  • 86BO3R - 76 mm diameter.
  • 86BO4R - 101 mm diameter.
  • 86BO2S - 63 mm square.
  • 86BO3S - 76 mm square.
  • 86BO4S - 101 mm square.
  • 86BO3 - 101 mm x 76 mm rectangle.

Stopends (150 mm long):

100 x 75 mm gutters:

  • 43BSEL - Left hand.
  • 43BSRL - Right hand.

125 x 100 mm gutters:

  • 54BSEL - Left hand.
  • 54BSRL - Right hand.

150 x 100 mm gutters:

  • 64BSEL - Left hand.
  • 64BSRL - Right hand.

150 x 150 mm gutters:

  • 66BSEL - Left hand.
  • 66BSRL - Right hand.

200 x 150 mm gutters:

  • 86BSEL - Left hand.
  • 86BSRL - Right hand.

Union connectors:

100 x 75 mm gutters:

  • 43BUC.

125 x 100 mm gutters:

  • 54BUC.

150 x 100 mm gutters:

  • 64BUC.

150 x 150 mm gutters:

  • 66BUC.

200 x 150 mm gutters:

  • 86BUC.
