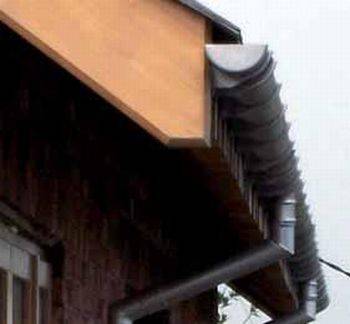

Legacy Plain Half Round Cast Aluminium Gutters
Description

Cast aluminium gutters, half-round, designed for fixing with fascia brackets at 600 mm centres maximum. A range of fittings, inclusive of rafter brackets, are also available and finishes include mill finish or polyester powder coated.

General information
Size

100 mm

114 mm

125 mm

150 mm

As drawing ___

Uniclass 2015
Pr_65_50_35_06 Aluminium eaves guttersPrimary
Specification data - Aluminium eaves gutters
Product Reference

Legacy Plain Half Round Cast Aluminium Gutters

Size

100 mm

114 mm

125 mm

150 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Legacy gutters and fittings to BS 2997 and BS EN 612 using 6063 T6 grade extruded aluminium in accordance with BS 1474.

Legacy gutters have loose internal union connectors and ARP Ltd recommends the use of Arbosil 1096 Low Modulus Silicone sealant to seal each side of the joint.

Additional sizes, profiles, faceted and radius gutters can be supplied to order, whilst bespoke items can be manufactured to customers own specifications.

Product Options

Size (1.8 m long):

100 mm:

  • 4CHRG1.8.

114 mm:

  • 4.5CHRG1.8.

125 mm:

  • 5CHRG1.8.

150 mm:

  • 6CHRG1.8.

Angles:

100 mm gutter:

  • 4CHRAI90 - 90º internal angle.
  • 4CHRAX90 - 90º external angle.
  • 4CHRAXI135 - 135º internal angle.
  • 4CHRAX135 - 135º external angle.
  • 4CHRAN - non-standard angle.

114 mm gutter:

  • 4.5CHRA190 - 90º internal angle.
  • 4.5CHRAX90 - 90º external angle.
  • 4.5CHRAXI135 - 135º internal angle.
  • 4.5CHRAX135 - 135º external angle.
  • 4.5CHRAN - non-standard angle.

125 mm gutter:

  • 5CHRA190 - 90º internal angle.
  • 5CHRAX90 - 90º external angle.
  • 5CHRAXI135 - 135º internal angle.
  • 5CHRAX135 - 135º external angle.
  • 5CHRAN - non-standard angle.

150 mm gutter:

  • 6CHRA190 - 90º internal angle.
  • 6CHRAX90 - 90º external angle.
  • 6CHRAXI135 - 135º internal angle.
  • 6CHRAX135 - 135º external angle.
  • 6CHRAN - non-standard angle.

Outlets:

100 mm gutter:

  • 4CHRO2R - 63 mm diameter.
  • 4CHRO3R - 76 mm diameter.

114 mm gutter:

  • 4.5CHRO2R - 63 mm diameter.
  • 4.5CHRO3R - 76 mm diameter.

125 mm gutter:

  • 5CHRO2R - 63 mm diameter.
  • 5CHRO3R - 76 mm diameter.

150 mm gutter:

  • 6CHRO2R - 63 mm diameter.
  • 6CHRO3R - 76 mm diameter.

Stopends:

  • 4CHRSEI - internal to suit 100 mm gutter.
  • 4CHRSEX - external to suit 100 mm gutter.
  • 4.5CHRSEI - internal to suit 114 mm gutter.
  • 4.5CHRSEX - external to suit 114 mm gutter.
  • 5CHRSEI - internal to suit 125 mm gutter.
  • 5CHRSEX - external to suit 125 mm gutter.
  • 6CHRSEI - internal to suit 150 mm gutter.
  • 6CHRSEX - external to suit 150 mm gutter.

Union connectors:

  • 4CHRUC - to suit 100 mm gutter.
  • 4.5CHRUC - to suit 114 mm gutter.
  • 5CHRUC - to suit 125 mm gutter.
  • 6CHRUC - to suit 150 mm gutter.
