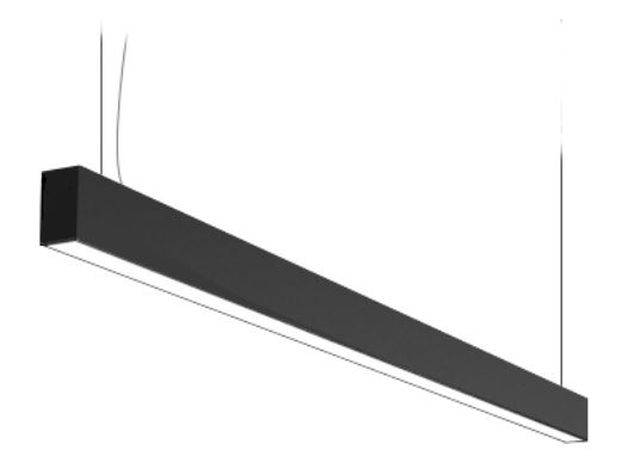

Leck Suspended Linear Lighting
Application

Suitable for offices, retail, galleries, lobby areas and healthcare.

Description

Thin suspended linear LED lighting.


Features and benefits:

  • Forms a thin, decorative line of continuous light.
  • Designed to blend seamlessly into the room.
  • A range of size and colour variations are possible.
  • Wide selection of modules available - can be used both as a standalone light and as part of a lighting system. Versatile design blends in with most room geometries.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Suspension wires slide into central profile groove and screw into ceiling.
  • Diffuser clicks out and into place for cleaning and easy access.
  • Internal ballasts or drivers are supplied.

Also available as recessed or surface mounted (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Linear

Size

Ten sizes, ranging from 561–4488 mm.

-

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Third-party certification

Photometrics.

Luminaire description

Suspended, tubular strip.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.96.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

Non-SELV.

Initial LED luminaire efficacy (minimum)

95 lm/W.

Wattage

11 W/ 990 lm up to 57 W/ 5400 lm.

Colour temperature

3000K.

4000K.

Tunable White (TW) 2700-6500K.

Insert requirements. Not available with emergency.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

DALI Dimming/ Bluetooth.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Accessories

Not required.

Ceiling cup, 80 mm.

Insert colour requirements.

Corner joint.

Insert colour requirements.

End cap.

Insert colour requirements.

Power cable, 2000 mm, 4 core.

Power cable, 2000 mm, 5 core.

Straight connector.

Suspension wire.

Available 2000 mm, 4000 mm, and 6000 mm.

Unlit profile, 1000 mm.

Insert colour requirements.

Product Reference

Leck Suspended - LED

Leck Suspended - T5

Fluorescent light.

Control gear position

Integral within luminaire.

Mode of operation

Maintained.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Length

561 mm.

842 mm.

1122 mm.

1403 mm.

1682 mm.

Show more

Optics

Microprismatic Diffuser.

Opal Diffuser.

Colour

Anthracite.

Black.

Corten.

Cream Beige.

Driftwood.

Show more

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<24.6.

Longitudinal

<24.6.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
