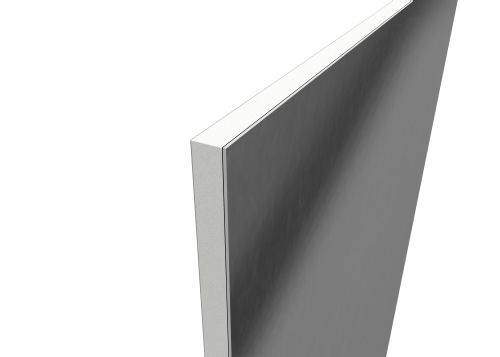

Gypsum plasterboard with a single lead sheet continuously bonded to one side.

Jump to:
+44 (0)1283 224555 www.midlandlead.co.uk


Providing complete protection against x-rays for staff and patients, Midland Lead lead-lined boards are used extensively in hospitals, dental surgeries and veterinary practices where x-ray radiation protection is essential to safeguard staff and patients. When fitted, the lead is completely hidden from view; securely bonded to high quality plasterboard. This gives the benefit of complete x-ray protection whilst the finished piece is aesthetically like any other high quality room-lining material. All the lead sheet used in the boards is custom manufactured by Midland Lead. The machine cast lead (approved by the British Board of Agrément) carries the CE mark (BS EN 14783) confirming its suitability for use as an internal lining material. Thanks again to its high density, lead is also an exceptional material for soundproofing. Lead-lined boards prevent the escape of noise from either internal or external sources so have a wide range of potential applications in media studios, cinemas, leisure, maritime and industrial environments where enhanced acoustic protection is needed.

General information

Uniclass 2015

Pr_25_71_35_99 X-ray-resistant gypsum plasterboards



K10/415 Gypsum plasterboard

Specification data - X-ray-resistant gypsum plasterboards

Product Reference

Lead Lined Plasterboard




9.0 mm

12.5 mm

As standard.

15.0 mm

Lead lining

UK code 1

0.45 mm.

UK code 2

0.89 mm.

UK code 3

1.32 mm.

UK code 4

1.80 mm.

UK code 5

2.24 mm.

UK code 6

2.65 mm.

UK code 7

3.15 mm.

UK code 8

3.55 mm.

Standard product features

Size (l x w):

2400 x 600 mm – other bespoke sizes on request.

Product Options

Product reference:

Plasterboard can also be supplied as moisture resistant, impact resistant and sound resistant product – consult manufacturer for details.


- Lead lining:

Thicknesses can be chosen to line the board with machine cast lead sheet in standard codes 1–8 (0.45–3.55 mm) or any thickness in between. Consult manufacturer for recommendations.
