NBS Source

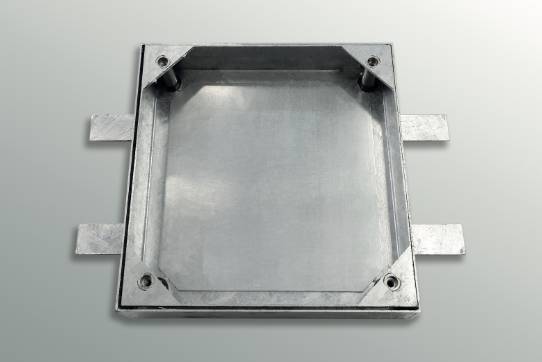

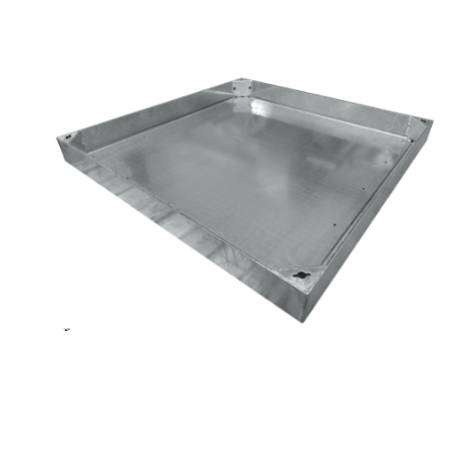

Landscape 1000 Series (Galvanized and Stainless Steel) Floor Access Cover
Compare variants

Landscape 1000 Series (Galvanized and Stainless Steel) Floor Access Cover

Verified by manufacturer 2 months ago

Stainless Steel

Howe Green Variant:

Galvanized and stainless steel, value engineered, non-fire rated floor access covers.

Jump to:
+44 (0)1920 463230 www.howegreen.com

Application

Suitable for external hard landscape applications.

Description

Howe Greens’ LANDSCAPE 1000 Series range of floor access covers provides safe and easy access to external under-floor services. The range is available in galvanized steel or stainless steel options.


Single, galvanized steel, unsecured (not-bolted) access covers are available in standard sizes directly from stock.


Alternatively, single, duct or multipart configurations, bespoke sizes and shapes, with optional secured (bolted down) designs can be made to order in stainless steel or galvanized steel, to meet each project’s floor access requirements.


Features and benefits:

  • Load rating: FACTA A – B.
  • Loading achieved without filling the cover.
  • Higher FACTA ratings manufactured on request.
  • Stainless steel or galvanized steel options.
  • Galvanized to BS EN ISO 1461.
  • Maximum stone or concrete depth: 85 mm.
  • Deeper recess available on request.
  • Unsecured (not-bolted) covers supplied as standard.
  • Optional secured (bolted down) covers are made to order.
  • Lifting points: triangular corner plates, with optional threaded inserts for use with our Cover Skates lifting equipment.
  • UKPN lifting keyhole available (certification pending).
  • Easy slab or stone installation.
  • Standard sizes available from stock.
  • Bespoke shapes and sizes made to order on request.

General information

Color

Silver

Material

Steel

Galvanized

Stainless steel

Shape

Square

Rectangle

Rhombus

Length

Bespoke shapes and sizes made to order on request.

450 mm

600 mm

750 mm

900 mm

Bespoke

Width

Bespoke shapes and sizes made to order on request.

450 mm

600 mm

750 mm

900 mm

Bespoke

WarrantyDescription

Five year

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

P31/370 Access covers/ gratings for

R12/471 Access covers and frames

P30/301 Access covers, manhole tops and frames

Specification data - Access covers, gratings and frames

Configuration

Single cover.

Duct.

Multipart.

Finish

Stainless steel.

Clear opening (minimum)

450 x 450 mm.

600 x 600 mm.

750 x 750 mm.

900 x 900 mm.

Bespoke.

Bespoke shapes and sizes made to order, please contact the manufacturer.

Load class (minimum)

FACTA A – B.

As standard.

Other.

Higher FACTA loadings on request.

Integral accessories

Not required.

Edge trims.

Corner guards.

Standard

Material standard.

Galvanized to BS EN ISO 1461.

Weight

64 kg/m².

Depth

Overall depth.

105 mm.

Security

Unsecured, non-bolted.

As standard.

Secured, bolted down.

Made to order.

Finishes

All types of external hard floor finishes including:

Stone.

Tiles.

Marble.

Concrete.

Other.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

98%

Recycled content

20 %

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
