Description

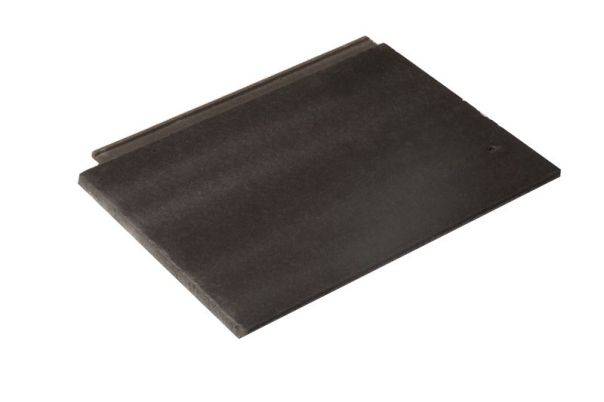

Interlocking concrete slate effect tile incorporating subtle colour differences to replicate the variations typical of natural slate whilst offering low minimum pitch for maximum flexibility and performance.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–22.4°: 100 mm; ≥22.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Redland ColourFusion™ coating process provides authentic slate appearance.
  • Thin leading edge, low profile tile with hidden interlock.

General information
Features

Redland ColourFusion™ coating process provides authentic slate appearance

Thin leading edge, low profile tile with hidden interlock

Material

Concrete with ColourFusion™ coating process - a very dense layer of highly pigmented amalgam fused to the surface, cured with a clear protective layer of polymer

Size

418 x 330 mm

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Landmark Slate 10 - 4671

Standard product features

Size:

418 x 330 mm.

Material:

Concrete with ColourFusion™ coating process - a very dense layer of highly pigmented amalgam fused to the surface, cured with a clear protective layer of polymer.

Colour:

Brecon grey (47).

Pitch:

  • Minimum: 100 mm headlap: 17.5°; 75 mm headlap: 22.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 293 mm.
  • Maximum: <22.5°: 318 mm; ≥22.5°: 343 mm.

Linear cover:

300 mm.

Covering capacity:

9.7 tiles/m².

Weight (at maximum gauge):

46 kg/m².
