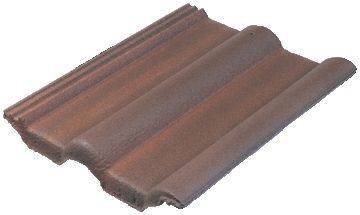

Landmark Double Roman Tile

Description

Concrete double Roman roof tile available in two authentic clay colours, ideal for creating the look of a traditional clay Roman roof. It has a long-lasting surface finish, retaining its look for years, whilst the subtle but rich variations of colour blend in to create a traditional clay effect.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–22.4°: 100 mm; ≥22.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Revolutionary ColourFusion™ coating process to protect and preserve tile finish.
  • Subtle curve softens tile front edge.
  • Concrete materials technology provides superior performance.

General information

Material

Concrete with ColourFusion™ coating process - a very dense layer of highly pigmented amalgam fused to the surface, cured with a clear protective layer of polymer

Size

418 x 330 mm

Uniclass 2015

Pr_25_93_72_17 Concrete interlocking tilesPrimary

Product range

Tiles / Profile Range

Specification data - Concrete interlocking tiles

Product Reference

Landmark Double Roman Tile - 5201

Colour

Brown brindle (44)

Terracotta brindle (43)

Standard product features

Size:

418 x 330 mm.

Material:

Concrete with ColourFusion™ coating process - a very dense layer of highly pigmented amalgam fused to the surface, cured with a clear protective layer of polymer.

Pitch:

  • Minimum: 100 mm headlap: 17.5°; 75 mm headlap: 22.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 293 mm.
  • Maximum: <22.5°: 318 mm; ≥22.5°: 343 mm.

Linear cover:

300 mm.

Covering capacity:

9.7 tiles/m².

Weight (at maximum gauge):

42 kg/m².
