Description

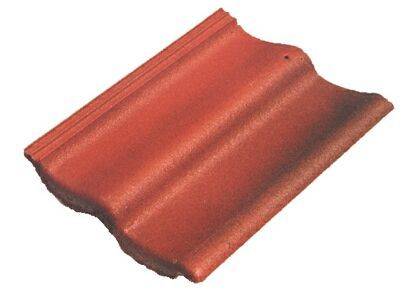

Concrete profiled roof pantile with a long-lasting surface finish, retaining their look for years, whilst the subtle but rich variations of colour, blend in to create a traditional clay effect.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 15–17.4°: 100 mm; ≥17.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Revolutionary ColourFusion™ coating process to protect and preserve tile finish.
  • Subtle colour variations imitate clay.
  • Bullnose front edge to soften roof appearance.

General information
Finish

Dependent on colour

Features

Revolutionary ColourFusion™ coating process to protect and preserve tile finish, subtle colour variations imitate clay, bullnose front edge to soften roof appearance, half tiles available

Material

Concrete

Shape

Rectangular

Size

418 x 332 x 29 mm

WarrantyDescription

Redland 60 year Concrete Tile Guarantee

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Landmark Double Pantile - 5901

Colour

Brown brindle (44)

Terracotta brindle (43)

Standard product features

Size:

418 x 332 mm.

Material:

Concrete with ColourFusion™ coating process - a very dense layer of highly pigmented amalgam fused to the surface, cured with a clear protective layer of polymer.

Pitch:

  • Minimum: 100 mm headlap: 15°; 75 mm headlap: 17.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 293 mm.
  • Maximum: <17.5°: 318 mm; ≥17.5°: 343 mm.

Linear cover:

300 mm.

Covering capacity:

9.7 tiles/m².

Weight (at maximum gauge):

47 kg/m².

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 4 1.3
