Ladders - Skylotec
Description

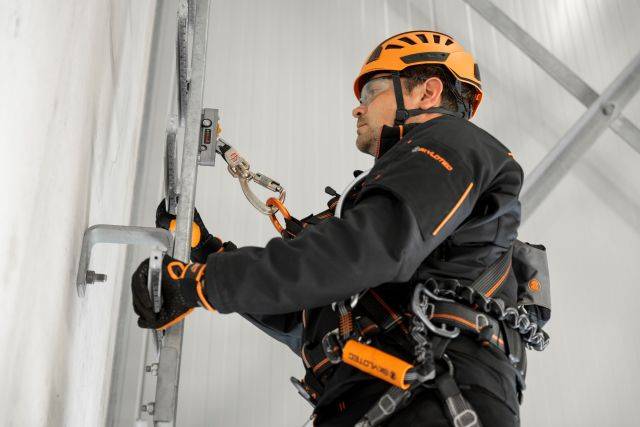

Ladders incorporating a fixed or removeable vertical fall protection system which moving up and down a central rail. One-year warranty.

General information
Uniclass 2015
Ss_35_10_30_62 Permanently-fixed vertical ladder systemsPrimary
CAWS

L35/130 Ladder system

Specification data - Permanently-fixed vertical ladder systems
Product Reference

Ladders - Skylotec

Design

As drawing

Insert reference, consult manufacturer for information.

Ladder -
Type

Climbing protection ladder

Available in 560–5600 mm lengths, rungs with anti-skid surface.

TAC rail with ladder

Available in 59 m or 71 m lengths.

Material

Aluminium

For TAC rail with ladder only.

Steel

Fall arrest system

Speed

Fixed vertical fall-arrestor.

Speed Attach

Detachable vertical fall-arrestor.

Standard product features

Fixing:

Wall brackets.

Product Options

Climbing protection ladder:

  • Climbing safety ladder, rungs with anti-skid surface.
  • Profile of the guide rail with coupling, without fixture: 50 x 30 mm.
  • Recommended mounting distance: 1400–1680 mm.
  • Rung distance: 280 mm.
  • Step width per side: 150 mm.
  • Maximum overhang: 8° (with Speed capture device, more is also possible).

Fall arrest system:

- Speed:

  • Durable rollers of har­dened steel with sleeve be­arings. Built-in shock-absorber and ultra-robust 360° rotating TriLock steel carabiner with fall indicator.
  • Material: Aluminium housing.
  • Standard: BS EN 353-1 (50–150 kg).
  • Weight: 1 kg.

- Speed Attach:

  • Attachable/ detachable mechanism with built-in shock-absorber and ultra-robust 360° rotating TriLock steel carabiner with fall indicator.
  • Material: Aluminium housing.
  • Standard: BS EN 353-1 (50–150 kg).
  • Size: 137 x 44 x 85 mm.
  • Weight: 1.4 kg.
