L5-XHD
Verified by manufacturer over a year ago

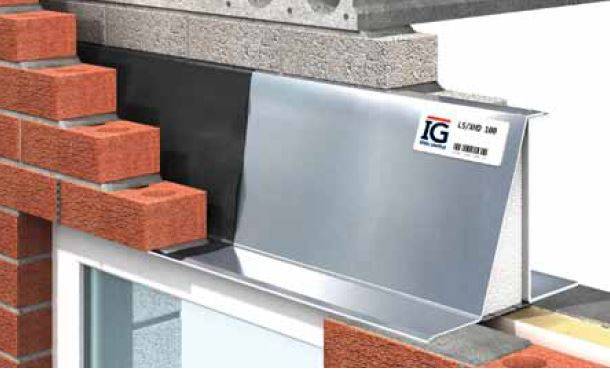

IG L5 XHD Cavity Wall Lintels for cavity widths 50-165mm with 100mm Inner Leaf
Description
IG L5 XHD Cavity Wall lintels are used to support Extra Heavy Duty loads for cavity widths 50-165mm with 100mm inner leaf blockwork. The L5 XHD Cavity Wall lintel range has a thermal break plate and is insulated to minimise cold bridging.
General information
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
