NBS Source
L1-S

Description

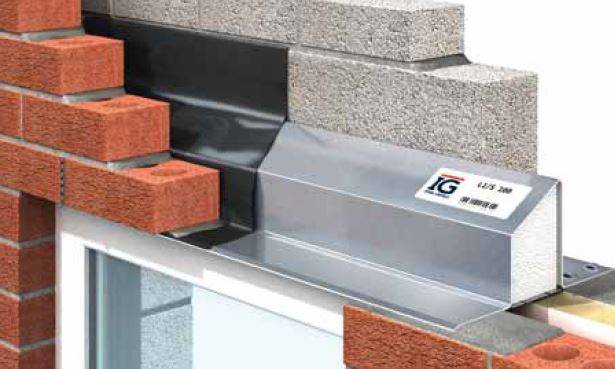

IG L1/S Cavity Wall lintels are used to support Standard Duty loads for cavity widths 50-165mm with 100mm Inner leaf blockwork. The L1/S Cavity Wall lintel range has a thermal break plate and is insulated to minimise cold bridging.

General information

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
