KVT162/ 110TP

Application

  • Pools.
  • Leisure centres.
  • Washrooms.
  • Office blocks.

Description

The KVT162 Gully is a square top stainless steel gully for tiled and poured floor areas.

It is supplied as standard with a lockdown perforated grating.

A modified version of KVT162/110 floor gully to suit a 1.5 or 2" BSP and 50 mm push fit bottom outlet are also available (KVT162/50).

Features and benefits:

  • Meets BS EN 1253 Loading Class K3 (barefoot and pedestrian areas).
  • Manufactured from grade 1.4301 (304) or 1.4401 (316) stainless steel to BS EN 10088.
  • Satin finish as standard.
  • Customised perforated patterns available.
  • Lockdown perforated grating supplied as standard.

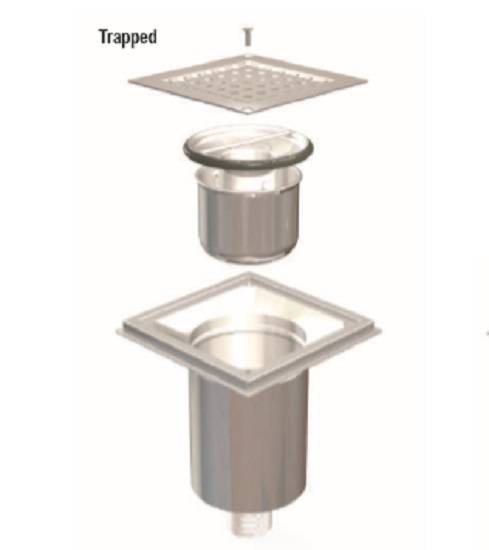

  • Trap optionally available, see separate product.

Applications:

  • Pools.
  • Leisure centres.
  • Washrooms.
  • Office blocks.

General information

Material

Grade 1.4301 (304) stainless steel

Grade 1.4401 (316) stainless steel

Finish

Satin

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Commercial Gully (Pedestrian)

Type

KHT162/1.5" BSP

Adjustable height two-part side outlet 1.5" BSP.

KHT162/50

Adjustable height two-part side outlet 50 mm.

KVT162/1.5"BSP

1.5"BSP fixed height untrapped.

KVT162/1.5”BSP(T)

1.5"BSP fixed height trapped.

KVT162/110

Adjustable height two-part bottom outlet.

KVT162/110TP

Top part only bottom outlet 110 mm.

KVT162/2"BSP

2"BSP fixed height untrapped.

KVT162/2"BSP(T)

2"BSP fixed height trapped.

KVT162/50

50 mm fixed height untrapped.

KVT162/50(T)

50 mm fixed height trapped.

Loading class to BS EN 1253

L15

R50

M125

N250

P400

Material

Grade 1.4301 (304) stainless steel

Grade 1.4401 (316) stainless steel

Finish

Satin

Outlet

Nipple

Optional for 1.5 and 2" BSP floor gullies.

Socket

Standard.

Strainer

Not required

Required

Optional

Standard product features

Size (w x d):

162 x 162 mm.

Product Options

Type (height/ outlet/ flow rate):

  • KHT162/1.5"BSP: 140–185 mm/ 1.5" BSP/ 0.9 L/s.
  • KHT162/50: 140–185 mm/ 50 mm/ 0.9 L/s.
  • KVT162/1.5"BSP: 75 mm/ 1.5"BSP/ 0.9 L/s.
  • KVT162/1.5”BSP(T): 200 mm/ 1.5"BSP/ 0.9 L/s.
  • KVT162/110: 200–250 mm/ 110 mm/ 1.4 L/s.
  • KVT162/110TP: 93 mm/ 110 mm/ 1.4L/s.
  • KVT162/2"BSP(T): 200 mm/ 2"BSP/ 1.1 L/s.
  • KVT162/2"BSP: 75 mm/ 2"BSP/ 1.1 L/s.
  • KVT162/50(T): 225 mm/ 50 mm/ 0.9 L/s.
  • KVT162/50: 100 mm/ 50 mm/ 0.9 L/s.
