Description

Unplasticized polyvinyl chloride (PVC-U) and aluminium window with integrated sun and privacy protection between the panes. The flush window offers quadruple protection high thermal insulation and sound reduction values.

The opaque Duette® blind offers complete privacy protection and can be controlled via a photovoltaic module without an external power source. Operation with I-tec Smart Window App is available via a tablet or smartphone. Up to ten-year warranty - consult manufacturer for details.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

PVC-U with highly thermally insulating thermal foam and aluminium cladding. Frame and post connections are butt welded

Uniclass 2015
Pr_30_59_98_15 Composite window unitsPrimary
Specification data - Composite window units
Product Reference

KV 440 UPVC/ Aluminium Window With Integrated Blinds

Size

As drawing

Insert reference.

As schedule

Insert reference.

Type

Fixed

Tilt and Slide

Tilt

Tilt/ turn

Turn

Frame stopper gasket

Black

Light grey

Ventilation

Not required

I-tec Ventilation

Integrated within frame.

Glazing -
Type

2KU

Triple glazed, argon infill.

3AD

Quadruple glazed, argon infill.

3AE

Quadruple glazed, krypton infill.

Spacer

Alu

Iso

Coating

Light

SolarXPlus

Not available with 2KU, lets increased light and energy into the interior.

Thickness

Insert requirement, consult manufacturer's literature for information.

Design

Insert requirement, consult manufacturer's literature for information.

Colour/ Finish -
Internal

Dunkelgrau

Décor foil.

Edel-Weiß

Décor foil.

Eiche-Gold

Décor foil.

White

External

Insert requirement, consult manufacturer's literature for information.

Accessories

Insert requirements, consult manufacturer's literature for information.

Handle

Insert requirement, consult manufacturer's literature for information.

Standard product features

Material:

PVC-U with highly thermally insulating thermal foam and aluminium cladding. Frame and post connections are butt welded.

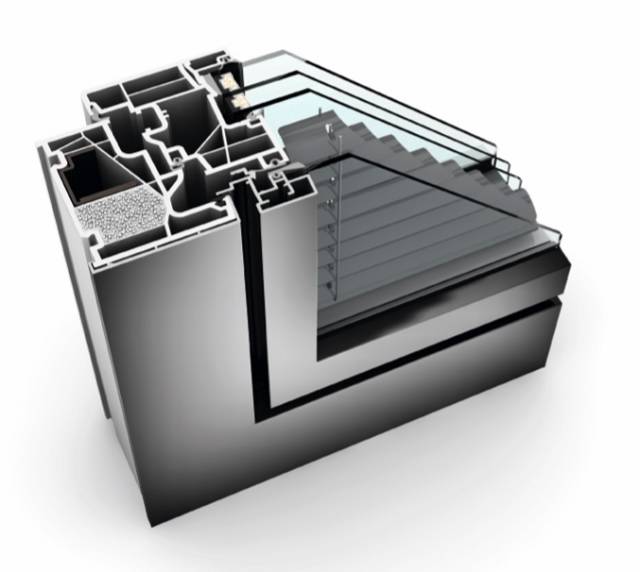

Frame profile:

Five-chamber system, square edged.

Construction depth:

  • Frame: 93 mm.
  • Sash: 118 mm.

Design style:

Home Pure.

I-tec Glazing:

Toughened and insulated. The glass pane is glued all around into the window frame, staying securely and tightly. It cannot be pushed out. Light coating.

I-tec Shading:

Integrated blinds can be powered by a self-sufficient photovoltaic module. I-tec shading works without an external power source and the decorative feel of the window is retained. The intelligent automatic mode with day/ night recognition allows automatic opening and closing of the blinds at sunrise and sunset. Measuring solar radiation and temperature, it also helps to prevent overheating of the rooms. In winter, the automatic control keeps the blinds open and enables maximizing of solar gains and therefore a reduction in heating costs.

Locking:

Solid, concealed designer locking elements in silver, together with a hexagonal mushroom shaped closing bolt in the window frame locks the window.

Gasket:

Two light grey gaskets in sash profile; stopper gasket and centre gasket.

Hinges:

Concealed, ensuring that windows cannot be levered out of their hinges. It also provides a discreet appearance and easy cleaning.

Performance:

  • Thermal insulation: As low as 0.64 W/m²K, dependent on glazing.
  • Sound reduction: Up to 45 dB, dependent on glazing.
  • Security: RC1N, RC2.

Product Options

External colour/ finish:

Anodized, RAL, highly weather resistant structural, metallic and timber decor colours available, consult manufacturer's literature for information.

Handle:

Many options are available dependent on type, consult manufacturer's literature for information.

Fixing:

Wall anchor, rawlplug or screw installation.
