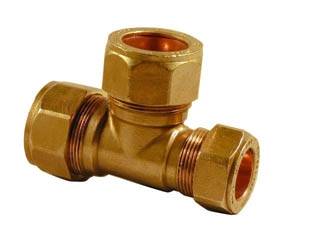

Kuterlite K700 Compression Fittings
Application

Suitable for use on cold water services above and below ground with metric sized medium density polyethylene pipe (MDPE) to EN 12056-2 or BS 6730.

Description

A range of non-manipulative (type A) compression fittings with one-piece dezincification resistant alloy (DZR) or gunmetal body, copper compression rings and liners and DZR nuts. Manufactured to BS EN 864-5 and available in sizes from 20–63 mm.

Applications:

Suitable for use on cold water services above and below ground with metric sized medium density polyethylene pipe (MDPE) to EN 12056-2 or BS 6730.

The range includes:

  • Straight and adaptor couplings.
  • Elbows.
  • Equal tees.
  • Adaptors.
  • Tee, reduced branches.
  • Stop ends.

25 year guarantee. WRAS approved.

General information
Uniclass 2015
Pr_65_52_62_27 Elastomeric ring sealsPrimary
CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

Specification data - Elastomeric ring seals
Product Reference

Kuterlite K700 Compression Fittings

Type

Consult literature for details and insert requirements.

Standard product features

Service temperature/ pressure (20–32 mm):

20°C: 12 bar.
