Kudos hinged sliding folding partitions, also known as folding walls, are UK manufactured to the highest specification.
Suitable for offices, hotels, meeting rooms, clubs and restaurants, leisure centres and educationalestablishments or wherever head fixings are restricted.
Hinged sliding folding partitions which can either be top hung or floor supported. The manual operation offers a simplistic and low maintenance approach. It is strong and durable with good acoustic values, and provides an option for areas having multiple functions or where rapid layoutchanges are required.

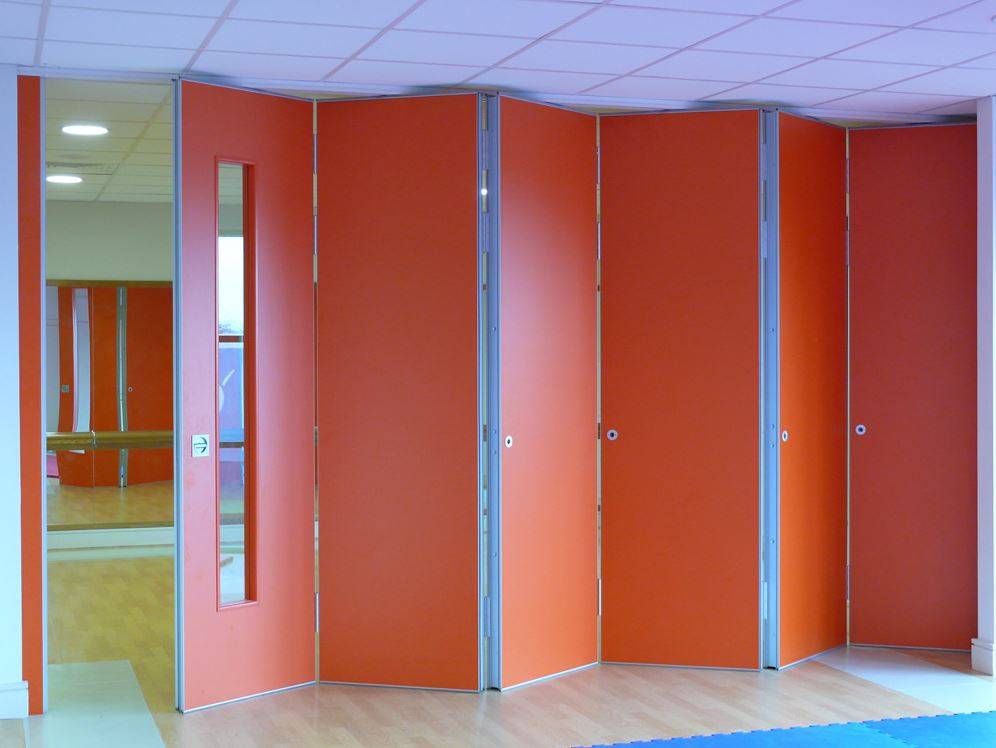

The system incorporates a series of flat panels (each up to 900 mm wide) that are hinged togetherto give a flush appearance when closed. It is a flexible solution for creating multiple configurations within an interior space and can be used as single units or in pairs, operating with an aluminium track. The panels are manoeuvred on either a ceiling mounted track or an ultra-low-profile floor track system.
Available in a range of acoustic ratings from 38–50 dB, which is achieved with a combination of acoustic infills. Kudos can be supplied for openings of unlimited width on straight or curved tracks. The panels can manufactured in a selection of finishes and colours, partially or fully glazed panels, ceiling or floor track and a choice of hardware.
Features and benefits:
Applications:
Suitable for offices, hotels, meeting rooms, clubs and restaurants, leisure centres and educationalestablishments or wherever head fixings are restricted.
Size | As drawing Insert reference. As schedule Insert reference. |
Features | Good space management, good acoustics, floor supported on a bottom roller track with guide at the top, can be top hung without floor track, sweep seals minimise sound transfer, centre bi parting folding, adaptable configurations |
Finish | White, grey, cream, birch, maple, ash, beech, oak |
Shape | Rectangle |
WarrantyDescription | 12 months |
Uniclass 2015 | |
CAWS | L20/545 Sliding stacking panel partitions |
Product Reference | Kudos Sliding Folding Partition |
Size | As drawingInsert reference. As scheduleInsert reference. |
Arrangement | Floor supportedStandard. Top hung with floor trackTop hung without floor track |
Finish/ Colour | BeechBirchDark oakMapleOakWalnutWoodline creamSpecial orderInsert requirement from 'Options' below. |
Stacking position | Centre folding - bi-partingConsult manufacturer's literature for information. Centre folding - single wingConsult manufacturer's literature for information. End folding - bi-partingConsult manufacturer's literature for information. End folding - single wingConsult manufacturer's literature for information. |
Glazing/ Vision panels | Insert requirement, consult manufacturer for more information |
Pass doors | Insert requirements. |
AcousticRating | Insert requirement, 38–50 dB available. |
Hardware | Insert requirements, consult manufacturer for information. |
Standard product features | Head track: 90 x 40 mm (w x h), white polyester powder coated finish. Floor track: 100 x 10 mm (w x h), satin anodized finish. |
Product Options | Finish/ Colour: Partitions can be supplied in various surface finishes, including melamine faced chipboard (MFC), laminates and veneers. Dry wipe magnetic finishes, wall coverings from Muraspec and Tektura or bespoke stretch fabrics are also available to compliment different decorative schemes and location types. The option exists for walls to have one finish or colour scheme on one side and a different finish or colour scheme on the other. Consult manufacturer for more information. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 1 | 2.1 |
![]() | Revit 2017 | 1 | 2.1 |
