Krystalite Glazed Louvre AOV - Smoke & Natural Ventilator NSHEV

Verified by manufacturer 3 months ago

Powrmatic Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

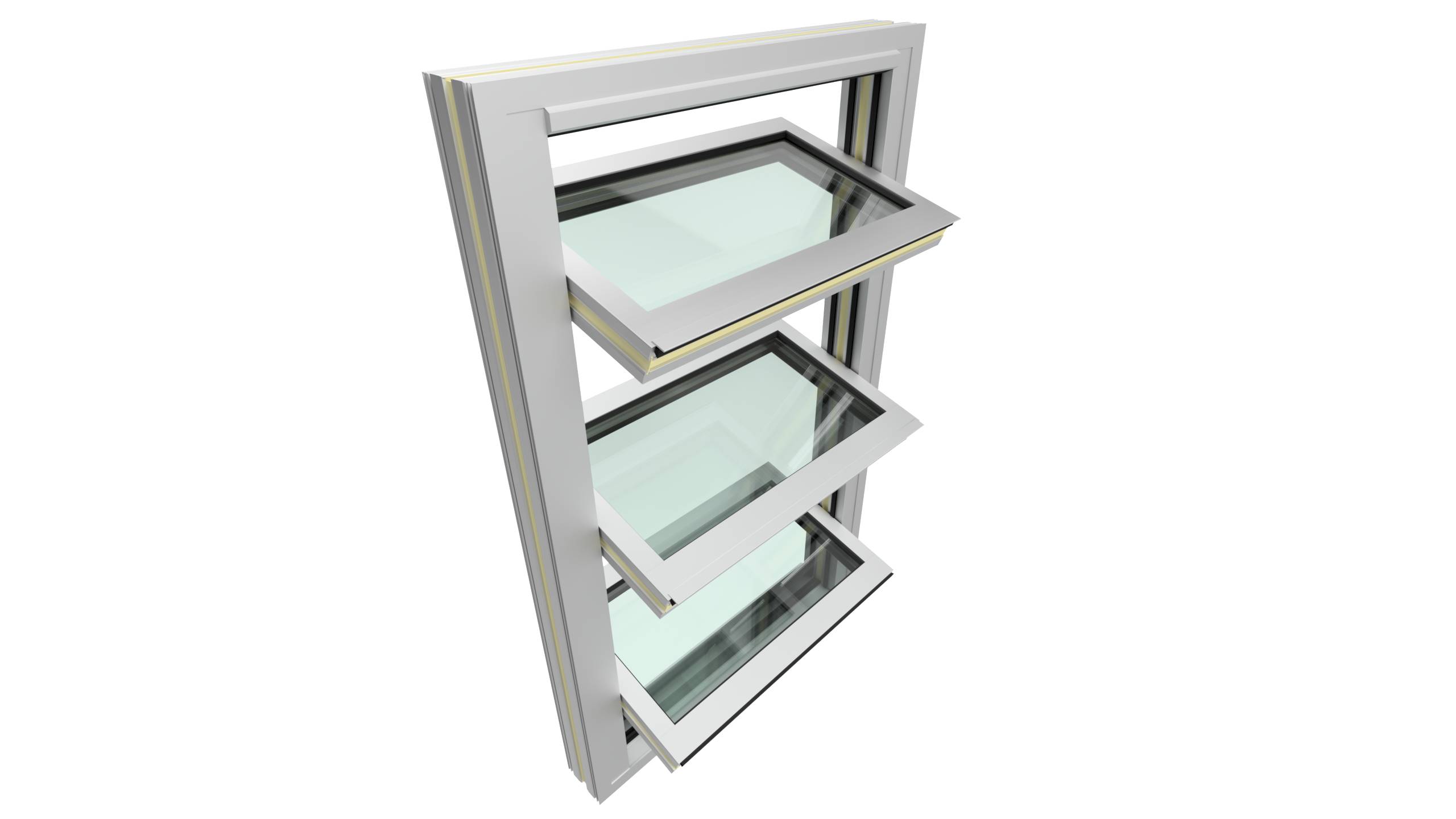

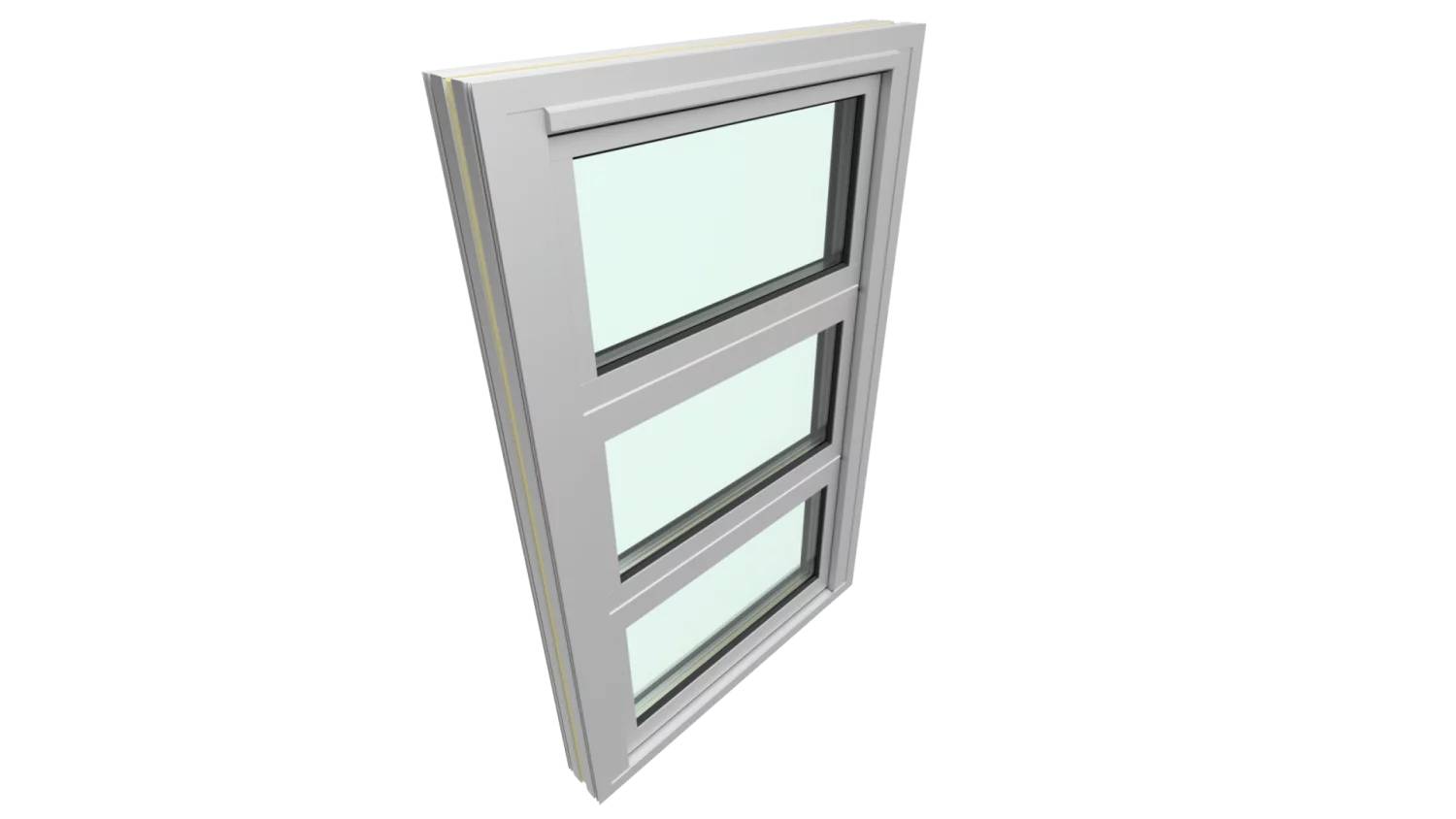

A louvred ventilator for natural ventilation and smoke control.

Jump to:
+44 (0)1460 53535 Website

Application

  • For natural ventilation and SHEV applications.
  • Suitable for glazing systems, facades, curtain wall frames and block work openings.
  • Offices, shopping centres, industrial buildings and atriums.

Description

Krystalite is a louvred ventilator for natural ventilation and smoke control. The system is comprised of glass or aluminium louvres, aluminium blade channels and extruded aluminium frames and adaptors.


Features and benefits:

  • High free area, acoustic and thermal performance.
  • Meets 1.0 m² and 1.5 m² free area requirements.
  • Glazing and facade system integration.
  • Opens within 60 seconds.
  • Dual functionality for smoke and day-to-day ventilation.
  • Anodized finish or custom RAL colour.
  • Tailored options to suit any sized opening.
  • Concealed blade operating mechanism.
  • Tested to BS EN 12101-2.

General information

Color

Silver

Other

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Width

-

Manufacturer guidance

Minimum Width = 500mm (EN12101-2 Certified Product)

Maximum Width = 2500mm (EN12101-2 Certified Product)

Height

-

Manufacturer guidance

Minimum Height = 400mm (EN12101-2 Certified Product)

Maximum Height = 5950mm (EN12101-2 Certified Product)

Warranty description

One year

Uniclass

Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary

CAWS

L10/54 Louvres

L10/650 Metal louvres

H11/140 Louvres

Specification data - Natural smoke and heat exhaust ventilators

Standard

To BS EN 12101-2.

Mounting

Wall-mounted, glazing system.

Wall-mounted, curtain wall.

Wall-mounted, block work.

Aerodynamic free area

Manufacturer's standard.

Reliability classification

Re 1000.

Low ambient temperature classification

T (00).

Wind load classification

WL 2500.

Resistance to heat classification

B 300.

Arrangement

Louvred.

Dimensions

-

Width

-

Manufacturer guidance

Insert requirements or refer to a drawing or schedule.

Height

-

Manufacturer guidance

Insert requirements or refer to a drawing or schedule.

Controls

Electric.

Guidance for specification option:

24 V Electric drive open/drive close actuators (chain or spindle).

Pneumatic.

Guidance for specification option:

Natural vent only.

Manual.

Materials

-

Ventilator

-

Frame

Aluminium.

Louvres

G6 Single Glazed.

G8 Single Glazed.

G12 Single Glazed.

TG24 Twin Glazed.

TG28 Twin Glazed.

TG32 Twin Glazed.

Insulated aluminium panels.

Finish

Anodized.

Principal components polyester powder-coated.

Guidance for specification option:

Polyester powder-coated to a standard RAL colour.

Colour

Natural.

Guidance for specification option:

For anodized finish.

RAL.

Guidance for specification option:

Insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 - EMS 750440

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 - FM 00414

Literature

Krystalite Product Specification Sheet

Krystalite Product Specification Sheet

Powrmatic Ventilation Products Overview

Powrmatic Ventilation Products Overview

Case studies

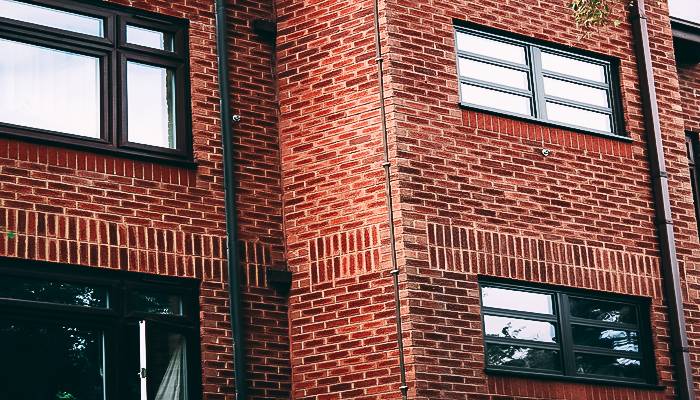

Bournemouth Council - Residential Apartment Smoke Ventilation
