Kronodesign® Upstands
Verified by manufacturer 9 days ago

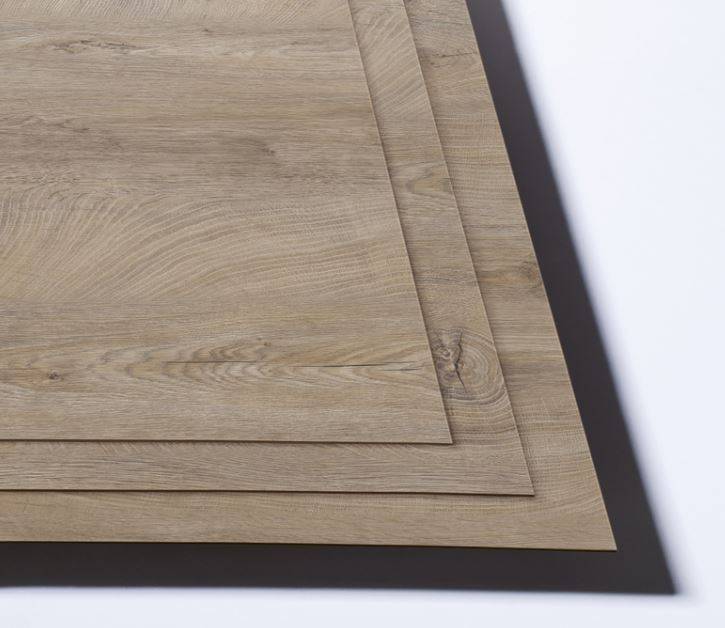

High-pressure laminate (HPL) upstands.
Application
Designed for use in kitchen applications.
Description
High-pressure laminate (HPL) upstands. Produced by pressing multiple core layers and a decorative resin-impregnated paper, it is hardwearing, durable and hygienic.
UK only. See the Worktops collection for decors and textures. Consult with manufacturer direct for options and availability.
Features and benefits:
- Attractive, aesthetic appearance.
- High resistance to surface abrasion.
- Impact and scratch resistance.
- Resistance to moisture, heat, cold and stains.
- Good dimensional stability.
- Non-corrosive.
- Antibacterial in accordance with ISO 22196:2011.
General information
Color | Gold Silver Brown Grey White |
Finish | Matt Gloss Smooth Textured |
Material | Laminate Guidance for specification option: High pressure laminate. |
Shape | Rectangle |
Length | 4100 mm |
Width | 100 mm |
Height | 20 mm |
Uniclass | |
CAWS | N10/10 Purpose-made N12/440 Purpose-made N12/440 Purpose-made K13/160 Proprietary K13/160 Proprietary N10/110 Purpose-made N11/380 Purpose-made units K13/150 Purpose-made |
Product range |
Specification data - High-pressure decorative laminates (HPL or HPDL)
Standard | To BS EN 438-3. |
Classification | HPL/ EN 438-3/ VGF.HPL/ EN 438-3/ VGP.HPL/ EN 438-3/ VGS. |
Fire rating | To BS EN 13501-1, class C-s1, d0 or better (laminate material only). |
Thickness | 20 mm. |
Finish | Double sided. |
Colour | Manufacturer guidancePlease consult manufacturer's literature and insert requirements. |
Material | High pressure laminate. Guidance for specification option: Please consult manufacturer regarding substrate. |
Sheet size | 4100 x 100 mm. |
Scratch resistance | To EN 438-2. Smooth finishes: 1. Textured finishes: ≥2. |
Sustainability data
Country of product manufacture | Poland |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kronodesign® Product Brochure
Kronodesign® UK Stock List
