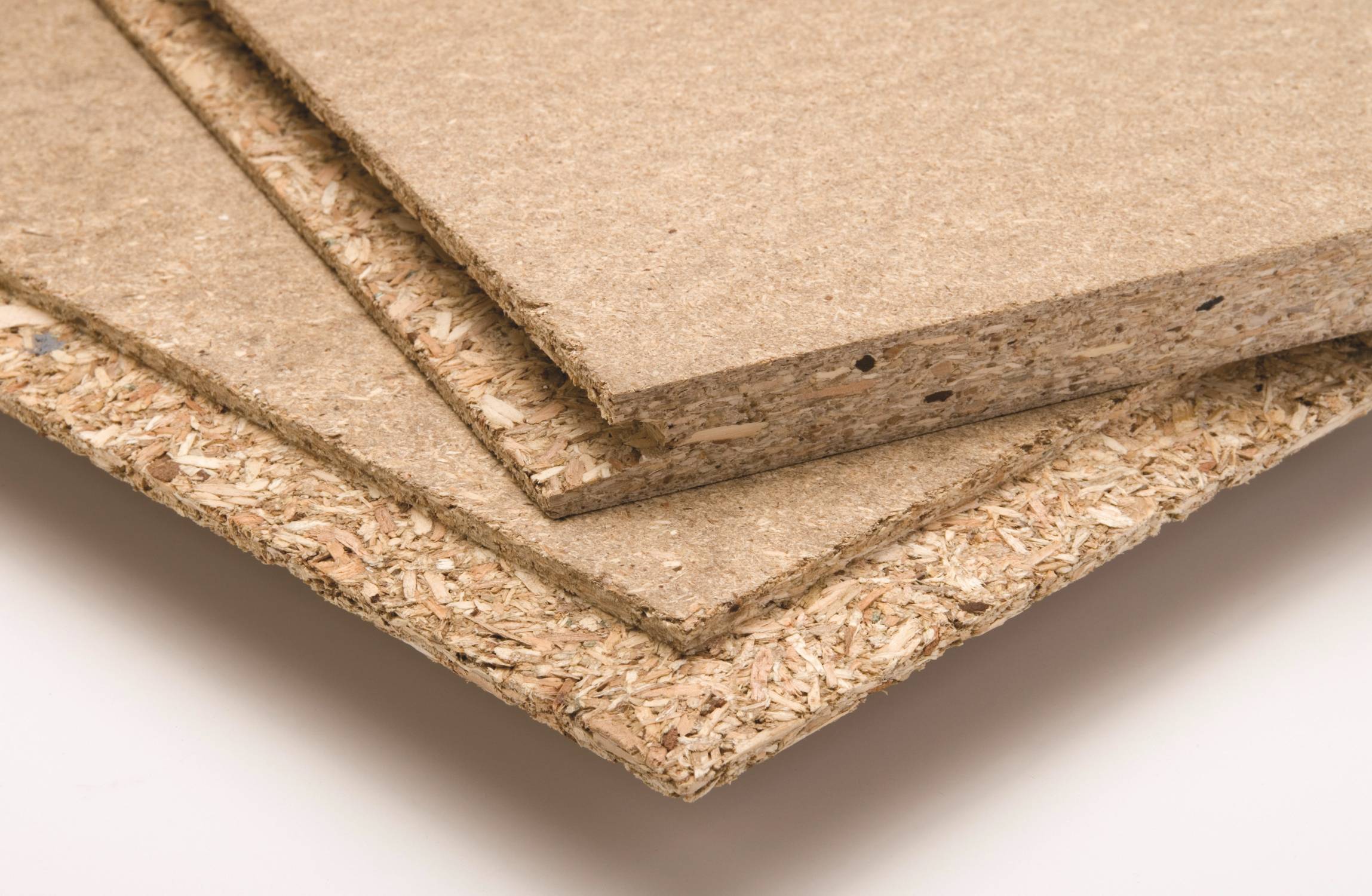

Kronobuild Particleboard P5 T&G Flooring
Verified by manufacturer 5 months ago
2400 x 600 x 18 mm
2400 x 600 x 18 mm
Particleboard flooring panel for use in dry and humid conditions for both domestic and commercial applications.
Application
For domestic and commercial flooring applications.
Description
Particleboard flooring panel for use in dry and humid conditions for both domestic and commercial applications.
Features and benefits:
- Increased resistance to humid conditions.
- Low swelling in thickness.
- Simple processing with conventional woodworking tools.
- Smooth surface.
- T&G profiling.
- Emission class E1 (EN ISO 12460-5).
- FSC certified.
Consult with manufacturer direct for options and availability.
General information
Color | Other Guidance for specification option: Natural. |
Finish | Smooth |
Material | Particleboard |
Shape | Rectangle |
Length | 2400 mm |
Width | 600 mm |
Height | 18 mm 22 mm |
Uniclass | |
CAWS | M50/530 Particleboard flooring K11/345 Cement-bonded particleboard flooring K11/30 Particleboard flooring K11/325 Particleboard flooring |
Product range |
Specification data - Particleboards
Standards | To BS EN 312. |
Board type | To BS EN 312, type P5. |
Grade | MR (moisture-resistant). |
Reaction to fire classification | |
Flooring | To BS EN 13501-1, Class D-s2,d0. |
Format | Standard. |
Thickness | 18 mm. |
Edges | Tongued and grooved all edges. |
Dimensions | 2400 x 600 mm. |
Type | Rawboard, load-bearing. |
Sound absorption | 0.1 α (Frequency range 250–500 Hz). 0.25 α (Frequency range 1000–2000 Hz). |
Bond | 0.45 N/mm². |
BendingStrength | 13.3 N/mm². |
Modulus of elasticity | 1900 N/mm². |
CompressiveStrength | 11.8 N/mm². |
Swelling capability | 10%. |
Moisture resistance | 0.22 N/mm². |
Sustainability data
Country of product manufacture | United Kingdom Guidance for specification option: Please contact the manufacturer for international availability. |
Material | Particleboard |
Recyclability | Guidance for specification option: Maintaining the principles of Circular Economy, these materials can be reused, they can also be recycled by reintroducing the material(s) back into production processes. For further information please consult with the manufacturer directly. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
