Krest Ceiling raft - Acoustic Panel

Verified by manufacturer 4 months ago

Soundtect

Product certifications:

Global-Mark
Certificate type
SRL
Certificate type
QA Certificate
Certificate type
VOC Content test Certificate
Certificate type

Acoustic suspended raft

Jump to:

+44 (0)203 0402939 Website

Application

Acoustic Panel for Wall and ceiling applications

office
break out areas
restaurants
lecture hall
education
gymnasium
public area
lecture hall
auditoriums
home cinema
meeting room
hospitality
medical centre
airport
library
hotel
reception area
atrium
dining hall
assembly hall
classroom
sales area

Description

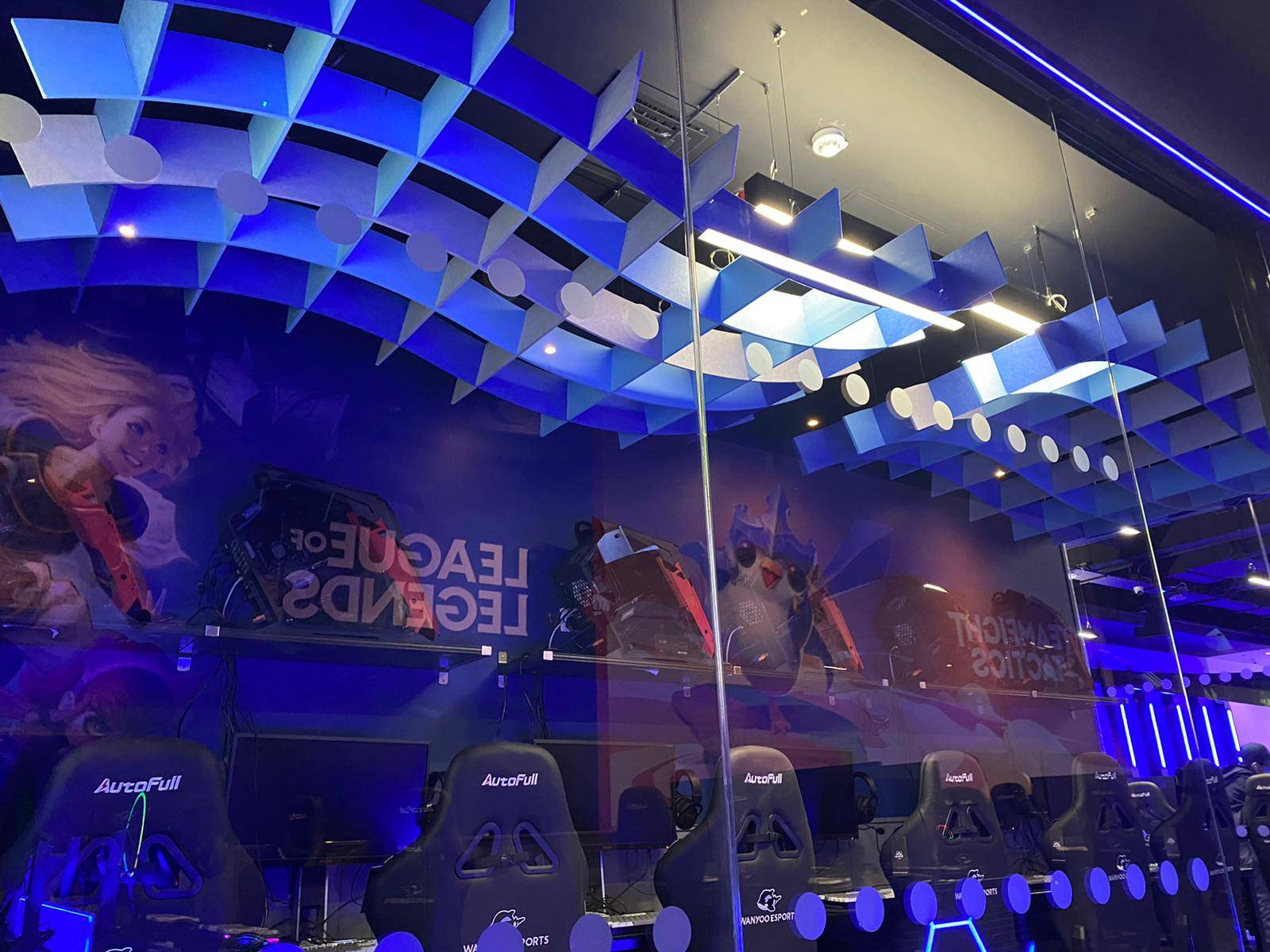

An architecturally-inspired curved grid-shaped ceiling product available in a range of colours and finishes. With up to 70% recycled content and finely-tuned reverberation and sound control.

Features and benefits:

Elevated design potential.
Incredible versatility.
Available in a wide range of colours.
Create bespoke designs in specific corporate or design colours.
Suspend from the ceiling to create functional room or space dividers with sound control properties
Excellent sound absorption.
Finely turned reverberation thanks to Soundtect’s pioneering acoustic technology.
Environmentally friendly and recyclable, Freestyle™ Acoustic Panels are suitable for projects when there is an eco-conscious consideration to be made.
Manufactured by Soundtect®.
Independently certified.
Composition: 100% polyester.
Low VOC.
Colorfastness to Light, AATCC16(3), Class 4.5.
ISO 14006 certified manufacturing facility.
Certified 100% recyclable.
Recycled content: Up to 70% (minimum 50%) post consumer recycled content.

10-12 weeks sea shipment

2-3 air freight

General information

Color	Beige Black Blue Brown Green Grey Orange Other Red White Yellow Show more
Material	Polyester fibre (PET)
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	100 mm 200 mm 300 mm
Warranty description	Ten year

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K40/20 Board-suspended ceiling systems K40/135 Board-suspended ceiling system

Specification data - Sound attenuator infill units

Form	Baffle. Raft.
Application	Ceiling mounting.
Material	Polyester.
Material density	10 mm, 2 kg/m². 20 mm, 4 kg/m².
Acoustic performance	-
Sound absorption	NRC 0.65 (20 mm), NRC 0.35 (10 mm).
Fire performance	-
Reaction to fire	To EN 13501, Bs1,d0.
Dimensions	-
Size (length x width)	1200 x 300 mm.
Thickness (overall)	10 mm. 20 mm.
Profile	Curved.
Colour	Ballet. Bolero. Calypso. Chacha. Conga. Contemporary. Disco. Flamenco. Hiphop. Jive. Lambada. Latin. Mambo. Passo. Polka. Quickstep. Rumba. Salsa. Tango. Twist. Vogue. Waltz. Zumba.

MoistureContent	Polyester fibre when exposed to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption of less than 0.03% by weight. Polyester is not affected by moisture.
Colour fastness	Colourfastness to Light, AATCC16(3), Class 4.5.

Sustainability data

Contains Red List materials	No
Country of material origin	China
Country of product manufacture	Hong Kong
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 %
