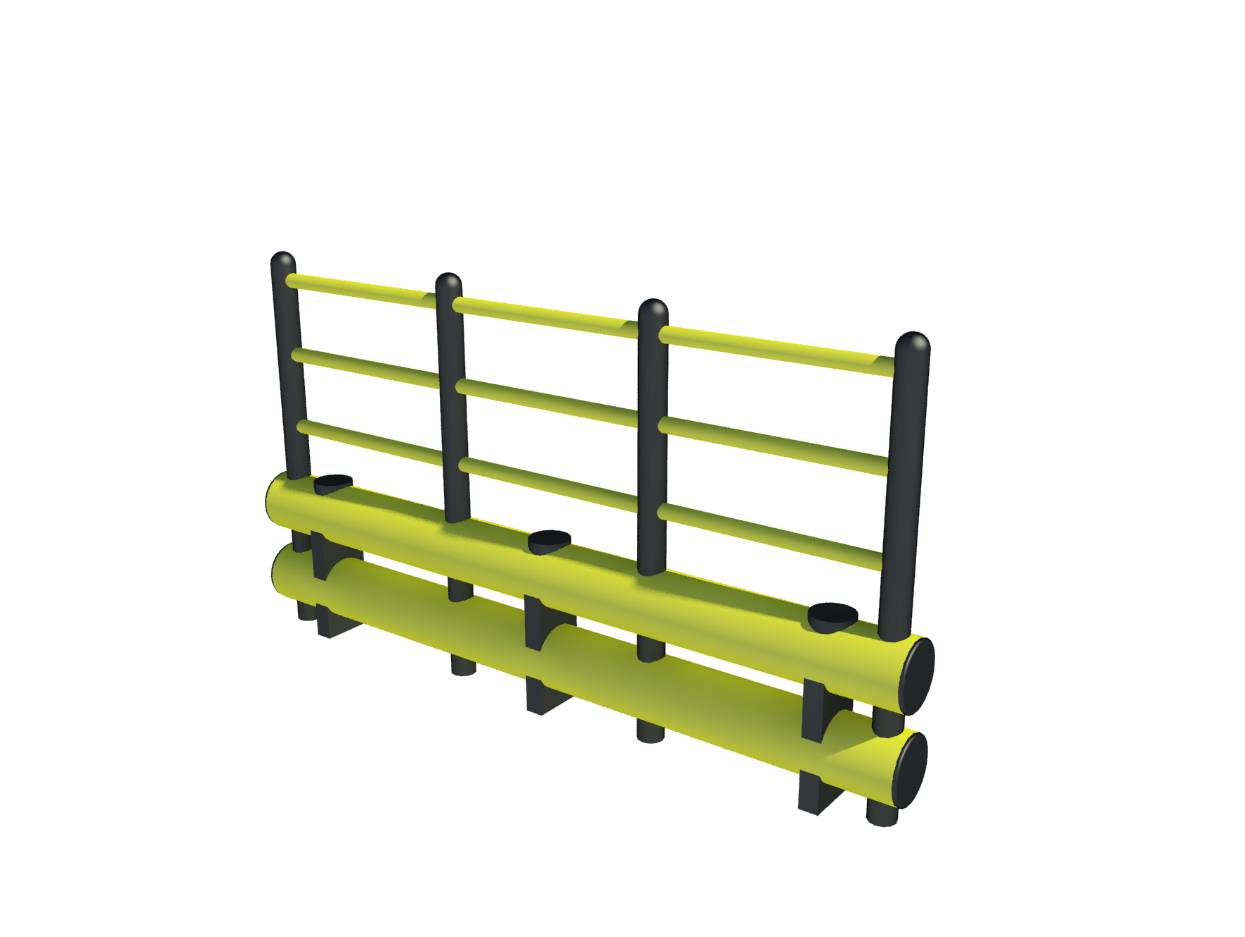

KPSDoubleBarrierRail-H
Compare variants

Application

Designed for the protection of people, equipment, and assets in High Traffic Areas.

Description

FLEXsafeTM High-Performance flexible protection technology designed to deflect, and safely absorb impacts.

Features and Benefits:

  • FLEXsafeTM High-Performance flexible protection technology designed to deflect, and safety absorb impacts.
  • Available in various lengths. - Unique “Hidden” steel threaded rod anchoring system.
  • Hygienic and easy to clean and maintain.
  • Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
  • Suitable for temperatures between -100°C to +80°C.
  • Zero exposed steel or risk of exposed corrosion.
  • High resistance against acids, alkali, and solvents.
  • 40% recycled polymer content.
  • 100% recyclable at end-of-life.
  • Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.
  • Unique Kingspan IQ Warranty – up to 25 years. - Bespoke branding capability.
  • Contact Kingspan for mechanical and impact resistance performance.

General information

Material

High-density polyethylene (PE-HD).

Color

Yellow

Black

Other

Size

∅170/170/70/40 x 1000 x 1100 mm

∅170/170/70/40 x 1500 x 1100 mm

∅170/170/70/40 x 2000 x 1100 mm

WarrantyDescription

25 years

Unique Kingspan IQ Warranty – up to 25 years

Uniclass 2015

Ss_25_16_94_65 Protective rail systemsPrimary

CAWS

null Proprietary protective barriers

Q41/135 Proprietary protective barriers

Specification data - Protective rail systems Enhanced data

Rails

Protective frames.

Product Reference

KPSDoubleBarrierRail-H

Steel reinforcement

Steel threaded rod anchoring system, ∅16 mm.

Length below ground

150 mm.

Drill ∅38 mm.

Colour

Yellow.

RAL1021 - standard.

Black.

RAL 9004.

Bespoke.

Other non-standard colours available – Contact Kingspan for further information.

Material

High-density polyethylene (PE-HD).

Width

1000 mm.

Height

1100 mm.

Environmental information

Recyclability

100%

Recycled content

40
