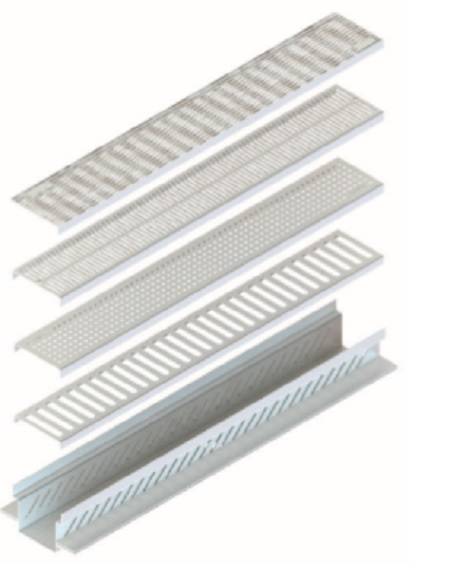

KPPC125 – Permeable Paving Channel

Application

  • Typically used in pedestrian areas.
  • Roofs.
  • Balconies.
  • Door Thresholds.
  • Decks.

Description

The Permeable Paving Channel KPPC125 with side inlet slots have been designed specifically for use in 'level access' areas. The product has a low flow rate in comparison to industrial channels as they deal mainly with rainwater run-off.

Features and benefits:

  • Meets BS EN 1433 loading class A15 (class B125 option available).
  • Manufactured from 1.4401 (316) or 1.4301 (304) grade stainless steel.
  • Constant depth of 50 mm.
  • Lock down option available.
  • The channel is shallow in depth with perforated/ slotted sides to allow maximum ingress of water.
  • The product is generally used in conjunction with Kent Stainless roof drains to funnel and direct rainwater to the roof drain or existing rainwater outlets. This is particularly useful for areas of permeable paving and areas with decorative stone or gravel such as balconies.
  • It is supplied with fully welded end plates and joining brackets for easy on site installation.
  • Kent Stainless full range of gratings can be used with the channel or a simple light duty perforated or slotted grating can be used as an alternative.
  • CE marked.

Applications:

  • Typically used in pedestrian areas.
  • Roofs.
  • Balconies.
  • Door Thresholds.
  • Decks.

General information

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/310 Floor channels

Product range

External Drainage

Specification data - Floor gullies

Product Reference

KPPC125 – Permeable Paving Channel

Type

KPPC125

KPPC150

Loading class to BS EN 1433

A15 to BS EN 1433

B125 to BS EN 1433

Optional.

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Grating

Heelproof slotted

Perforated

Punched slotted

Wedge heelmesh

Standard product features

Size (h x w):

  • KPPC125: 100 x 125 mm.
  • KPPC150: 100 x 150 mm.

Outlet:

  • KPPC125: 75 mm.
  • KPPC150: 100 mm.
