KPHMG150/ 207/ 199

Application

Suitable for areas with a propensity for high heel traffic – including streetscapes, railway stations, airports, and public plazas. It is often also used internally on drainage channels in leisure centres or public areas.

  • Hospitals.
  • Front door thresholds.
  • Barefoot.
  • Pedestrian.
  • Pallet trucks.
  • Delivery areas.

Description

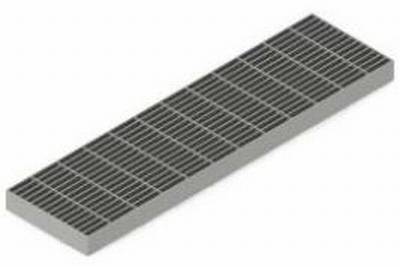

Pedestrian heel mesh channel grating with 8 x 44 mm opening and either 2 or 3 mm load bearing bars depending on the loading required and the free span of the channel.

The grating is a low-cost alternative to stainless steel wedge wire grating.

The product has an electropolished finish as standard for extra hygiene and corrosion resistance. It can alternatively be supplied with a Bead Blasted (higher SRV) or Satin Finished top.

Typical sizes are 123 mm wide x 990 mm for Kent Precinct Channel but covers can be manufactured 150/ 200 mm wide on KAF Angle Frame, or to suit any Gully covers - typically the KV215 and KV315 Gullies.

Top bars are typically 2 mm – can be increased to 3 mm where required either for loadings or for aesthetic reasons or where a wider surface area is preferred under barefoot.

Applications:

Suitable for areas with a propensity for high heel traffic – including streetscapes, railway stations, airports, and public plazas. It is often also used internally on drainage channels in leisure centres or public areas.

  • Hospitals.
  • Front door thresholds.
  • Barefoot.
  • Pedestrian.
  • Pallet trucks.
  • Delivery areas.

Suitable for:

- Gullies:

  • KV/KH215.
  • KV/KH280.
  • KV/KH220.
  • KVA/KHA265.
  • KVA/KHA205.

- Channels:

  • KSBC.
  • KVBC.
  • KDTC.
  • KPC.

- Angle frame:

  • KAF.

The product is often used as an Air Vent Cover – e.g. in an office block or on a connecting bridge at an airport or railway station. Can be supplied for these applications with cut-outs for LED uplighters. Often depth is reduced to 20 mm for Edge Air Vent Covers as these have little or no traffic overhead.

General information

Finish

Bead Blasted (higher SRV)

Optional.

Electropolished

Standard.

Satin

Optional.

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Uniclass 2015

Pr_65_52_24_29 Floor channel covers and gratingsPrimary

CAWS

R11/310 Floor channels

R11/315 Floor drains

R11/5 Floor drains

Product range

Drainage Gratings

Specification data - Floor channel covers and gratings

Product Reference

KPHMG150 Pedestrian Heelmesh Channel Grating

Size

-

Width

123 mm

Standard.

150 mm

200 mm

Depth

25 mm

Standard.

40 mm

50 mm

Load class

A

B

C

Finish

Bead Blasted (higher SRV)

Optional.

Electropolished

Standard.

Satin

Optional.

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Standard product features

Length:

990 mm.
