Konekt Thermostat - Thermostat

Verified by manufacturer 2 months ago

Warmup plc

Wireless thermostat.

Jump to:
+44 0345 345 2288 Website

Application

Heating systems.

Description

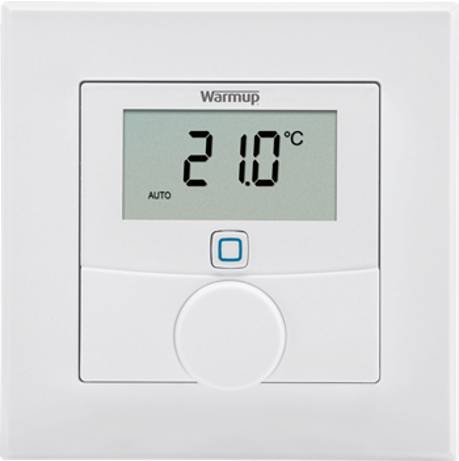

The Wall Thermostat is part of the Warmup konekt wireless smart home system.

Wall thermostats can be easily paired with konekt eTRV’s for temperature control of your radiators or with the konekt Wiring Centre for control of your hydronic underfloor heating system.

Once connected and paired to the konekt Wireless Smart Hub the thermostats function can be easily assigned using the konekt wireless App. The App provides a clear overview of all connected devices in a smart home and allows easy programming of home heating and hot water system (requires konekt boiler switch).


Powered using two AAA batteries the thermostat can be mounted in any location in any room for accurate temperature control. It can be wall mounted using screws provided or the self adhesive strips as well as integrated into 55 mm switch frames or flush mounted boxes. The thermostat also features a Boost mode which opens the paired eTRV’s and activates the heat source to boost the controlled rooms temperature for a short period of time.


Kit includes:

Warmup konekt Wireless Thermostat with Humidity Sensor, Clip-on frame, Mounting plate, fixings, batteries and quick start guide.


Features and benefits:

  • Intelligent control.
  • Easy and flexiuble installation.
  • Automatic control of any smart home.
  • Data security with 129 bit encryption. Reliable radio protocol based on 868/869.525 MHz.
  • CE and UKCA marked. BEAB approved.


General information

Color

White

Shape

Square

Length

86 mm

Width

86 mm

Height

25 mm

Uniclass

Pr_75_50_76_03 Air temperature sensorsPrimary

CAWS

T90/475 Underfloor heating systems

T90/485 Thermostats

T90/485 Thermostats

Specification data - Air temperature sensors

Application

Room.

Voltage

Two 1.5 V LR03/micro/AAA.

Ingress protection

IP20.

Current

50 mA maximum.

Ambient temperature

0–35°C.

Method of operation

Type 1.

Frequency

868.3 MHz / 869.525 MHz.

Duty cycle

< 1% per hour/< 10% per hour.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

Recyclable under WEEE regulations

Literature

Konekt Thermostat Speicification Sheet

Konekt Thermostat Speicification Sheet
