Knurled Thumb Turn and Emergency Release on Slimline Rose (CHTT12) - Turn and Release Bolt
Verified by manufacturer 18 days ago
CFP17
CFP17

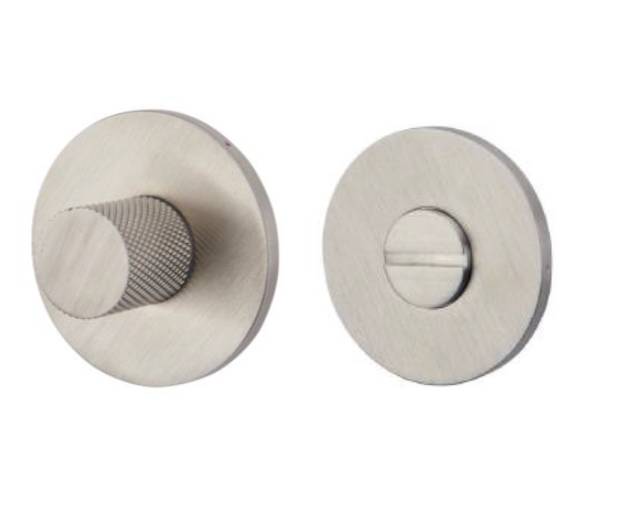

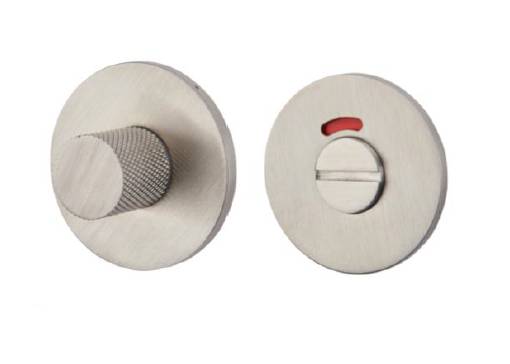

Premium range knurled thumb turn and emergency release on slimline rose, with or without indicator.
Application
Suitable for timber or steel door applications.
Description
Premium range knurled thumb turn and emergency release on slimline rose, with or without indicator.
Features and benefits:
- Sharp angled turn and rose cover, create and aesthetically pleasing design.
- Suitable for timber or steel door applications.
- Slimline low friction 52 x 4 mm unsprung rose.
- Bolt through fixings specifically measured for 44 and 54 mm doors to reduce install time.
- Lock tight used on both bolt through products stays firmly fixed once installed on the door.
General information
Color | Silver Black Gold Bronze Other |
Finish | Satin Polished |
Material | Stainless steel |
Shape | Circle |
Length | 26.5 mm Guidance for specification option: Depth. |
Width | 52 mm Guidance for specification option: Diameter. |
Height | 52 mm Guidance for specification option: Diameter. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/36 Privacy indicator bolts P21/586 Privacy indicator bolts |
SKU Code | CHTT12.ER, CHTT12.BR |
Product range |
Specification data - Door privacy indicator bolts
Classification data | |
Bolt type | Rotary, internal thumb-turn, with indicator (ER). Rotary, internal thumb-turn, without indicator (BR). |
Material and finish | SSS - grade 316 satin stainless steel. DUO - grade 316 satin/ polished stainless steel. SVB - grade 304 satin PVD, black. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. SVG - grade 304 satin PVD, gold. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. SVZ - grade 304 satin PVD, bronze. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. SB - grade 304 satin brass. Other. Guidance for specification option: On request. Consult manufacturer for options and insert requirements. |
Colour | As finish. |
Emergency-release facility | Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel |
Recyclability | 90% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Literature type
Consort Premium Hardware Catalogue
CHTT12.ER TDS
CHTT12.BR TDS
Case studies
OQT Office, Dubai
Siemens Energy - Sustainability Pavilion Campus, Dubai
Sushi Samba Restaurant, Riyadh
