Knob Furniture - KG.128.DR
Verified by manufacturer 8 months ago

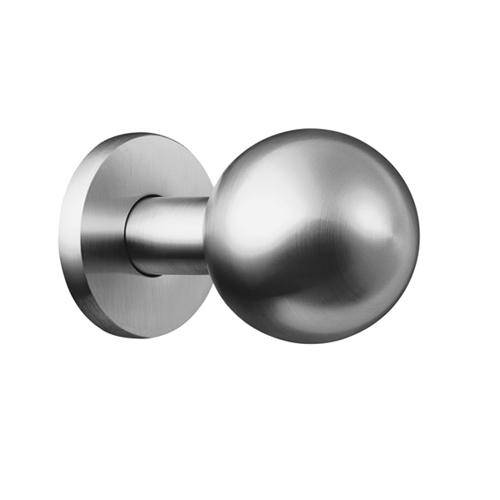

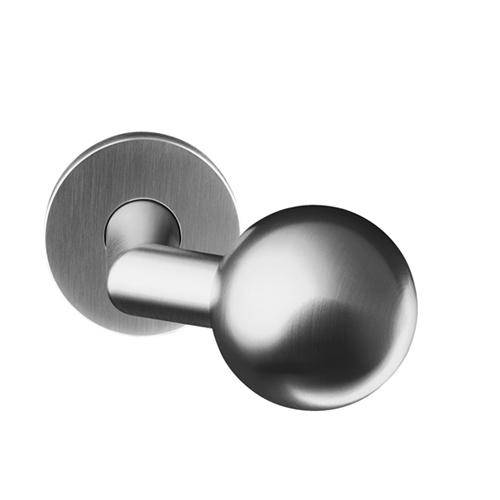

Satin stainless steel 54 mm diameter knob furniture on concealed fixing spring assisted ball bearing roses.
Application
Suitable for a wide range of applications including residential, commercial, retail, education and healthcare.
Description
Satin stainless steel 54 mm diameter knob furniture on 55 mm diameter x 10 mm concealed fixing spring assisted ball bearing roses. Exact door thickness TBC.
Features and benefits:
- Special roller race ball bearing
- Warp resistant solid square spindle of hardened and galvanized steel
- Precise finished brushed satin stainless steel, formed surface, secure fitting back to back TORX® fixing bolts
- Can be produced in a variety of finishes depending on the application
General information
Color | Black Guidance for specification option: Flat matt black. Bronze Guidance for specification option: Light and dark bronze. Gold Silver Other Guidance for specification option: Colour coated. |
Finish | Satin Guidance for specification option: Stainless steel and brass. Polished Guidance for specification option: Stainless steel and brass. PVD Matt Antiqued Guidance for specification option: Brass. |
Material | Stainless steel Bronze Brass |
Shape | Circle |
Length | 78 mm |
Width | 55 mm |
Height | 55 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/620 Door knobs P21/40 Door knobs |
Specification data - Knobs
Style | Ball. |
Size | 54 mm diameter. |
Material and finish | Satin stainless steel.Polished stainless steel.Light bronze.Dark bronze.Flat matt black.Polished brass.Satin brass.Antique brass.Colour coated.PVD. |
Colour | Manufacturer guidanceColour coated finish: Consult manufacturer and insert requirements. |
Mounting | Sprung rose with hidden screw fixing, 55 mm diameter. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg·CO₂e/kg Self declared |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
