Knauf Ceiling Solutions HYGENA Plain
Verified by manufacturer 7 months ago
Exposed demountable - Board edge (square)
Exposed demountable - Board edge (square)
A plain ceiling tile with smooth white surface for healthcare environments.
Application
For use in healthcare environments and laboratories.
Description
HYGENA Plain offers a white, smooth surface that creates an elegant ceiling appearance and provides excellent light reflection.
The surface is washable and anti-microbial
Features and benefits:
- Limits the growth of bacteria and fungi.
- Cleanable with dry and damp cloth.
- White, smooth surface that provides excellent light reflection.
- Complies with Zone 4 risk requirements according to NF S 90-351:2013.
- Ideal for healthcare environments and laboratories
General information
Color | White |
Finish | Smooth |
Material | Mineral wool |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm |
Height | 15 mm |
Warranty description | One year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system |
Specification data - Mineral fibre infill units
Standard | To EN 13964. |
Third-party certification | Indoor Air Quality Rating A+, Eurofins Indoor Air Comfort Gold certification. |
Fire performance | |
Reaction to fire | To EN 13501-1, Euroclass A2-s1, d0.Guidance for specification option: Class A as per ASTM E 84. |
Unit type | Ceiling tile. |
Material | Fibre. |
VOC emissions | To EN 13964, Class E1.Guidance for specification option: For formaldehyde emissions. |
Recycled content | 26% (minimum) to BS EN ISO 14021. |
Unit size | |
Face dimensions | 600 x 600 mm.610 x 610 mm.1200 x 600 mm.1220 x 610 mm. |
Thickness | 15 mm. |
Surface texture | Plain. |
Colour | White. |
Edge profile | Board. |
Sound absorption | To BS EN ISO 354 and EN ISO 11654, αw = 0.20 (L) - Class E. |
Light reflectance | 87%. |
Weight | 3.8 kg/m². |
Sound attenuation | To EN ISO 10848-2 and EN ISO 717-1, Dn,f,w = 34 dB. |
System | Exposed demountable - System C. |
Sound reduction | To EN ISO 10140-2 and EN ISO 717-1, Rw = 21 dB. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Mineral wool |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidancePlease refer to EPD |
Recyclability | Manufacturer guidancePlease refer to EPD |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 26 % |
Literature

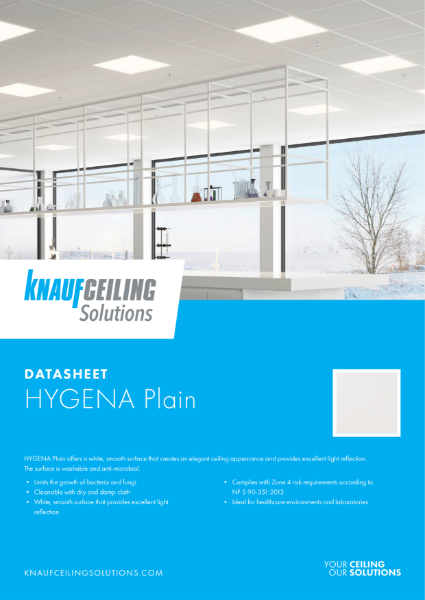

HYGENA Plain Data Sheet
