Knauf AMF Topiq Sound

Knauf AMF Topiq Sound

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Knauf AMF Ceilings Ltd

Fleece-lined rock mineral wool tiles coated on all sides to meet a wide range of design requirements and with the highest Class A sound absorption.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk
Application

For use with Knauf AMF suspended ceiling system C.

Description

Soft board, fleece-lined rock mineral wool tiles with a coating on all sides to meet a wide range of design requirements. As standard, the finish consists of a fleece coating on both sides with a high quality colour coating on the face and edge areas. Provides the highest Class A sound absorption.

Features and benefits:

  • Soft board tiles have a low surface weight.
  • Straightforward handling.
  • Humidity resistance.
  • First-rate sound absorption.

Application:

For use with Knauf AMF suspended ceiling system C.

General information

Finish

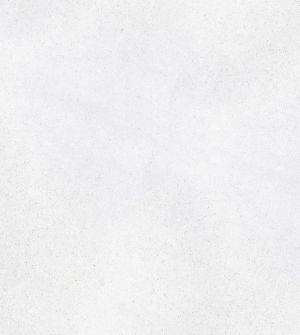

Smooth textured finish with micro perforations

Features

Soft board tiles have a low surface weight, straightforward handling, humidity resistance and first-rate sound absorption

Material

Mineral fibre

Size

600 x 600 mm

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units

Product Reference

Knauf AMF Topiq Sound

Type

Modern smooth textured ceiling tile

Unit size

-

Face dimensions

600 x 600 mm, SK square edge

15 or 24 mm exposed Knauf grid system.

600 x 600 mm, VT-S-15 rebated edge

15 mm exposed Knauf grid system.

600 x 600 mm, VT-S-24 rebated edge

For 24 mm exposed Ventatec grid system.

Thickness

40 mm

Surface texture

Smooth textured finish with micro perforations

Colour

White, similar to RAL 9010

Edge profile

Square

Rebated

Perimeter trim

Not required

A-RWL

24 x 24 mm angle.

I-RWL

31 x 31 mm angle.

C-SRW shadow angle, 20 x 20 x 20 x 20 mm

C-SRW shadow angle, 25 x 15 x 8 x 15 mm

I-SRW

25 x 15 x 10 x 15 mm shadow angle.

Fire safety

Complies with BS EN 13501-1: Class A1

Sound absorption

To BS EN ISO 354: aw 0.90. Sound absorption: Class A

RelativeHumidity

90% (maximum)

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes

Weight

4.5 kg/m²

Sound attenuation

Rating to BS EN 20140-9 Dn,f,w: 34 dB

Light reflectance

Up to 88%

Standard product features

Colour:

White, similar to RAL 9010.

Features:

Soft board tiles have a low surface weight, straightforward handling, humidity resistance and first-rate sound absorption.

Finish:

Smooth textured finish with micro perforations.

Material:

Mineral fibre.

Size:

600 x 600 mm.

Product Options

Type:

Other sizes and edge details are available for special order.

Literature
Third party certifications
  • Regulation (EC) No 1272/20: RAL-GZ certified
