Knauf AMF Thermatex Mercure

Knauf AMF Thermatex Mercure

Knauf AMF Ceilings Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

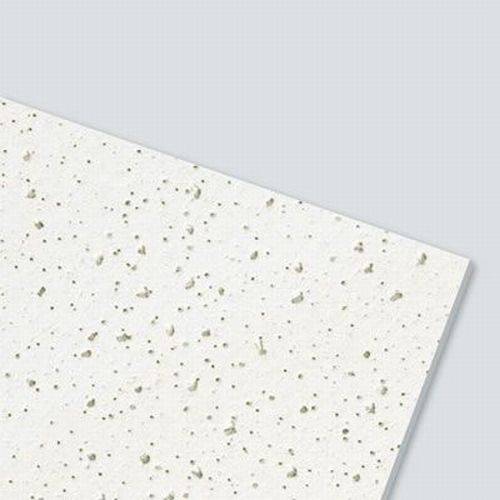

Ceiling tile with fine, non-directional fissures and micro perforations offering fire protection and acoustic properties.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk
Application

For use with the following Knauf AMF suspended ceiling systems: System A: Concealed, demountable ceiling/ non demountable option, System C: Exposed, Ventatec grid system, demountable ceiling, System F: Free span, demountable ceiling and System I: Bandraster, demountable ceiling.

Description

Ceiling tile with fine, non-directional fissures and micro perforations providing fire protection and acoustic properties.


Features and benefits:

  • Contemporary, high quality finish.
  • The surface combines needle perforations with fine fissures in an irregular pattern.
  • Good sound absorption.

General information

Finish

Contemporary

Color

White

Material

Mineral fibre

Shape

Square

Size

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

Ceiling tile with fine, non-directional fissures and micro perforations. Semi-concealed grid, concealed grid or exposed Ventatec grid system.

 Other sizes and edge details are available for special order.

Material

Mineral fibre.

Unit size

-

Face dimensions

300 x 1600 x 19 mm thick.

AW/SK shiplap/ square edge; semi-concealed grid.

300 x 1800 x 19 mm thick.

AW/SK shiplap/ square edge; semi-concealed grid.

300 x 2000 x 19 mm thick.

AW/SK shiplap/ square edge; semi-concealed grid.

300 x 2500 x 19 mm thick.

AW/SK shiplap/ square edge; semi-concealed grid.

600 x 600 x 19 mm thick.

AW/GN shiplap/ concealed edge; concealed grid.

600 x 600 x 15 mm thick.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 600 x 40 mm thick.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick.

VT15 rebated edge; 15 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick.

VT24 rebated edge; 24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick.

VT24 rebated edge; 24 mm exposed Ventatec grid system.

Thickness

As specified above.


Surface texture

Non-directional fissures and micro perforations.

Colour

White.

Similar to RAL 9010.

Edge profile

Shiplap/square, concealed or rebated.

Product Reference

Knauf AMF Thermatex Mercure

System F I

Not required.

Semi-concealed grid.

300 x 1200 x 19 mm thick, AW/SK shiplap/ square edge.

Semi-concealed grid.

400 x 1200-1250 x 19 mm thick, AW/SK shiplap/ square edge.

Semi-concealed grid.

600 x 1200 x 19 mm thick, AW/SK shiplap/ square edge.

Semi-concealed grid.

312.5 x 1250 x 19 mm thick, AW/SK shiplap/ square edge.

Semi-concealed grid.

Show more

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle.

I-RWL.

31 x 31 mm angle.

C-SRW shadow angle.

20 x 20 x 20 x 20 mm.

C-SRW shadow angle.

 25 x 15 x 8 x 15 mm.

Show more

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0.

Sound absorption

To BS EN ISO 354: aw 0.60. Sound absorption: Class C. Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.55.

RelativeHumidity

95%.

 (maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Weight

4.5 kg/m².

15 mm thick tiles.

5.7 kg/m².

19 mm thick tiles.

13.2 kg/m².

40 mm thick tiles.

Sound attenuation

Rating to BS EN 10848 Dn,f,w: 34 dB.

Literature
Third party certifications
  • Der Blaue Engel: Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
