Knauf AMF Thermatex Fine Stratos Unperforated

Knauf AMF Thermatex Fine Stratos Unperforated

Knauf AMF Ceilings Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

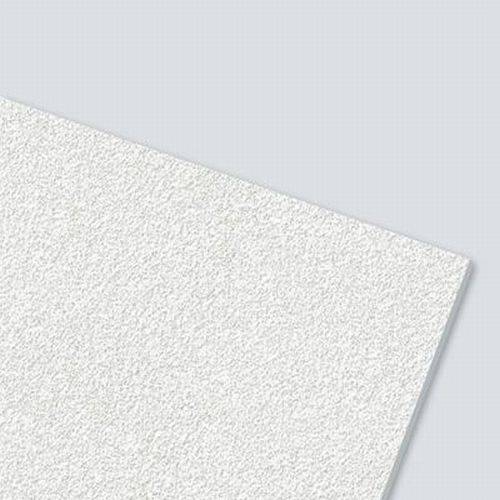

High quality sand textured face ceiling tile.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk

Application

For use with the following Knauf AMF suspended ceiling systems: System A: Concealed, System C: Exposed, Ventatec grid system demountable ceiling. System F: Free span, with exposed Ventatec grid system or concealed suspension and System I: Bandraster, with concealed cross sections.

Description

Ceiling tile with outstanding physically properties in fire resistance and acoustic performance.


Features and benefits:

  • High quality sand textured ceiling tile.
  • Physical properties include fire resistance and acoustic performance.
  • Contributes to a classic ceiling design due to its fine sanded surface.

General information

Finish

Textured

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile.


Color

White

Material

Mineral fibre

Shape

Square

Rectangle

Size

600 x 600 x 15 mm

Various other sizes available.

WarrantyDescription

Material: 15-year warranty, System: 30-year warranty.

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

High quality sand textured face ceiling tile. Exposed Knauf AMF grid system.

Other sizes and edge details are available for special order.

Material

Mineral fibre.

VOC emissions

0%.

Recycled content

45.49.

Surface texture

Sand textured.

Colour

White.

Similar to RAL 9010.

Edge profile

Square.

Rebated.

Product Reference

Knauf AMF Thermatex Fine Stratos Unperforated

System C

Not required.

600 x 600 x 15 mm SK.

24 mm exposed Knauf Grid system.

600 x 1200 x 15 mm SK.

24 mm exposed Knauf grid system

300 x 1200 x 15 mm SK.

24 mm exposed Knauf grid system.

400 x 1200 x 1500 x 15 mm.

24 mm exposed Knauf grid system.

Show more

System A

Not required.

600 x 600 x 15 mm AW/GN.

Concealed Knauf grid system.

300 x 1200 x 15mm AW/GN.

Concealed Knauf grid system.

312.5 x 1250 mm x 15 mm AW/GN.

Concealed Knauf grid system.

600 x 600 x 15 mm GN/GN.

Concealed Knauf grid system.

Show more

System F I

Not required.

300 x 1800-2500 mm x 15 mm SK.

Free span and parallel bandraster exposed Knauf grid system.

312.5 x 1800-2500 mm x 15 mm SK.

Free span and parallel bandraster exposed Knauf grid system.

400 x 1800-2500 mm x 15 mm SK.

Free span and parallel bandraster exposed Knauf grid system.

300 x 1800-2500 mm x 15 mm VT/SK.

Free span and parallel bandraster exposed Knauf grid system.

Show more

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle

I-RWL.

31 x 31 mm angle

C-SRW shadow angle., 20 x 20 x 20 x 20 mm

C-SRW shadow angle., 25 x 15 x 8 x 15 mm

Show more

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0.

RelativeHumidity

95%.

(maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Weight

4.0 kg/m².

15 mm thick tiles.

5.3 kg/m².

19 mm thick tiles.

12 kg/m².

40 mm thick tiles.

Anti-microbial treatment surface finish (Hygena)

Not required.

Required.

Sound absorption (15 mm thick tiles)

To BS EN ISO 354 αw 0.20 as per EN ISO 11654. Sound absorption: Class C. Noise reduction coefficient (NRC) to ASTM C 423 0.15.

Sound attenuation (15 mm thick tiles)

To BS EN 20140-9 Dnfw: 34 dB.

Sound solution

Rw = 21 dB as per ISO 10140-2.

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Recyclability

100%

Recycled content

45.49%

Literature

AMF Thermatex Ceiling Tile Range

AMF Thermatex Ceiling Tile Range

Third party certifications

  • Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
