Knauf AMF Thermatex dB Acoustic 41 mm
Application

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

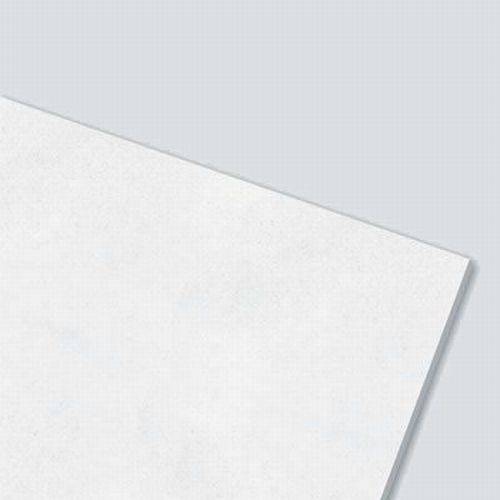

High sound-attenuating, sound-reducing mineral ceiling tile with a white unperforated surface appearance. It is made from a combination of high density, bio-soluble mineral wool with clay and starch.


Features and benefits:

  • The fleece offers a smooth surface finish.
  • Designed for use with Knauf AMF suspended ceiling system C,F,I,A.
  • Perforations provide sound absorption.


General information

Finish

Smooth

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile. Fleece offers a smooth surface finish.

Color

White

Material

Mineral wool

Mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.

Shape

Square

Rectangle

Size

600 x 600 x 24 mm

WarrantyDescription

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

High sound attenuation and sound reduction mineral ceiling tile. Exposed Ventatec grid system.

Material

Mineral wool.

VOC emissions

0%.

Recycled content

48.86.

Unit size

-

Face dimensions

600 x 600 x 24 mm.

AW, GN Knauf grid system.

Thickness

24 mm.

Surface texture

Smooth surface.

Colour

White.

Similar to RAL 9010.

Edge profile

Square.

Rebated.

Product Reference

Knauf AMF Thermatex dB Acoustic 24 mm

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle.

I-RWL.

31 x 31 mm angle.

C-SRW shadow angle.

20 x 20 x 20 x 20 mm.

C-SRW shadow angle.

25 x 15 x 8 x 15 mm.

Show more

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0.

Sound absorption

To BS EN ISO 354: aw 0.60 as per EN ISO 11654. Sound absorption Class: C. Noise reduction coefficient (NRC) to ASTM C 423: 0.70.

RelativeHumidity

95%.

Light reflectance

85%.

(maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Sound attenuation

Rating to BS EN 20140-9 Dn,f,w 41 dB.

Rating to BS EN 10848 Dn,f,w: 41 dB.

Cleanroom classification

Class 4 as per ISO 14644-1.

Weight

8.4 kg/m².

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Recyclability

100%

Recycled content

48.86

Literature
Third party certifications
  • Der Blaue Engel: Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
