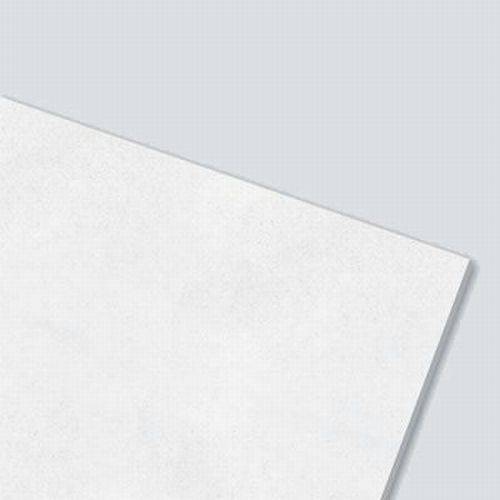

Knauf AMF Thermatex Alpha
Application

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

A high performance lightweight wet felt mineral ceiling tile. Core board perforations provide Class A sound absorption. New generation bio-soluble mineral wool, clay and starch contribute to the acoustic performance.

Features and benefits:

  • Designed for use with Knauf AMF suspended ceiling system C.
  • Strong, smooth white surface.
  • Wet felt mineral tile with physical properties to assist installation.

Application:

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

General information

Finish

Smooth surface finish

Features

Designed for use with Knauf AMF suspended ceiling system C. Wet felt mineral tile with physical properties to assist installation

Material

Mineral fibre. New generation bio-soluble mineral wool, clay and starch, contribute to the acoustic performance

Shape

Square

Size

600 x 600 mm, 600 x 1200 mm

WarrantyDescription

Material: 15-year warranty, System: 30-year warranty

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units

Product Reference

Knauf AMF Thermatex Alpha

Type

High performance mineral ceiling tile with Class A sound absorption. Exposed Ventatec grid system

VOC emissions

0%

Recycled content

36.84%

Unit size

-

Face dimensions

600 x 600 mm, SK square edge

15 or 24 mm exposed Knauf grid system.

600 x 600 mm, VT-S 15 rebated edge

15 mm exposed Knauf grid system.

600 x 600 mm, VT-S 24 rebated edge

24 mm exposed Knauf grid system.

600 x 1200 mm, SK square edge

15 or 24 mm exposed Knauf grid system.

600 x 1200 mm, VT-S 15 rebated edge

15 mm exposed Knauf grid system.

600 x 1200 mm, VT-S 24 rebated edge

24 mm exposed Knauf grid system.

Thickness

19 mm

Surface texture

Smooth

Colour

Standard: White, similar to RAL 9010. Coloured tiles are available for special order

Edge profile

Square

Rebated

Perimeter trim

Not required

A-RWL

24 x 24 mm angle.

I-RWL

31 x 31 mm angle.

C-SRW shadow angle, 20 x 20 x 20 x 20 mm

C-SRW shadow angle, 25 x 15 x 8 x 15 mm

I-SRW

25 x 15 x 10 x 15 mm shadow angle.

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0

Sound absorption

To BS EN ISO 354: αw 0.95. as per EN ISO 11654. Sound absorption Class: A. Noise reduction coefficient (NRC) according to ASTM C 423 0.90

Weight

3.3 kg/m²

RelativeHumidity

95%

Light reflectance

88% (maximum)

Anti-microbial treatment surface finish (Hygena)

Not required

Required

Sound insulation

Rw = 14 dB as per EN ISO 10140-2

Cleanroom classification

Class 4 as per ISO 14644-1

Standard product features

Colour:

Standard: White, similar to RAL 9010. Coloured tiles are available for special order.

Features:

Designed for use with Knauf AMF suspended ceiling system C. Wet felt mineral tile with physical properties to assist installation.

Finish:

Smooth surface finish.

Material:

Mineral fibre. New generation bio-soluble mineral wool, clay and starch, contribute to the acoustic performance.

Size:

600 x 600 mm, 600 x 1200 mm.

Shape:

Square.

Warranty description:

Material: 15-year warranty, System: 30-year warranty.

Recycled content:

48.86%.

Recyclability:

100%.

Red listed materials:

No.

Country of origin:

Germany.

Environmental information

Recyclability

100%

Recycled content

36.84%

Literature
Third party certifications
  • Der Blaue Engel: Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
