Knauf Adit - Acoustic Demountable Wall Panel System
Verified by manufacturer 3 days ago

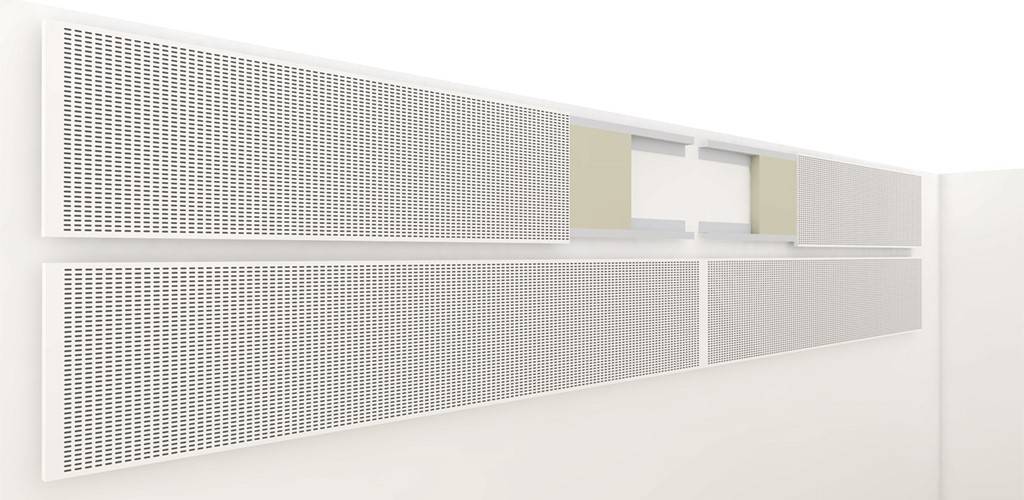

Standard white panel
Standard white panel
Fast to install demountable wall panel for instant improvement of acoustics, Knauf Adit has the possibility to instantly change the look and acoustics of the room.
Application
Suitable for vertical or horizontal installation on walls.
Description
Fast to install demountable wall panel for instant improvement of acoustics, Knauf Adit has the possibility to instantly change the look and acoustics of the room.
Features and benefits:
- Ready to install kit.
- Suitable as a DIY product.
- Printable surface.
- Compliance standards: to EN 14190:2014.
General information
Color | White Other |
Finish | Foil Manufacturer guidanceFoil covered with preimpregnated white paper (RAL 9016, gloss 10) |
Material | Gypsum |
Shape | Rectangle |
Length | 2400 mm |
Width | 450 mm |
Height | 9.5 mm |
Uniclass | |
CAWS | K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
SKU Code | 00180369 |
GTIN/EAN | 5709636391128 |
Specification data - Sound attenuator infill units
Classification data | |
Standard | To EN 14190:2014. |
Form | Panel. |
Rigidity | Rigid. |
Application | Wall mounting. Ceiling mounting. |
Material | Adit glass fibre-reinforced gypsum boards, 2400 x 450 x 9.5 mm. |
Material density | Manufacturer's standard. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | 0.90 - Class A. Manufacturer guidanceAlpha-W (αw) and Sound Absorption Class (at 65 mm cavity depth, with 50 mm mineral wool). |
Fire performance | |
Fire resistance | N/A. |
Reaction to fire | B-s1, d0. |
Dimensions | |
Size (length x width) | 2400 x 450 mm. |
Thickness (overall) | 9.5 mm. |
Profile | Linear. |
Edges | B. Guidance for specification option: Consult manufacturer for details. |
Surface pattern | White. Perforation type: Tangent - obround, 4 x 14 mm, c/c 10 x 20 mm; 25% perforation coverage). |
Finish | Foil covered with preimpregnated paper. |
Colour | White (RAL 9016, gloss 10). |
Custom graphics | Not required. |
Weight | 8 kg per panel. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Gypsum |
Recyclability | Can be recycled, make sure it has no or minimal contamination from non-gypsum based materials as this will affect its recyclability. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option:
|
Expected Life | 60 year Guidance for specification option: Service life. Can withstand:
|
Literature
Literature type
Knauf Acoustic and Design Solutions For Hospitals and Healthcare Facilities Brochure
Knauf Acoustic & Design Solutions for Educational Buildings Brochure

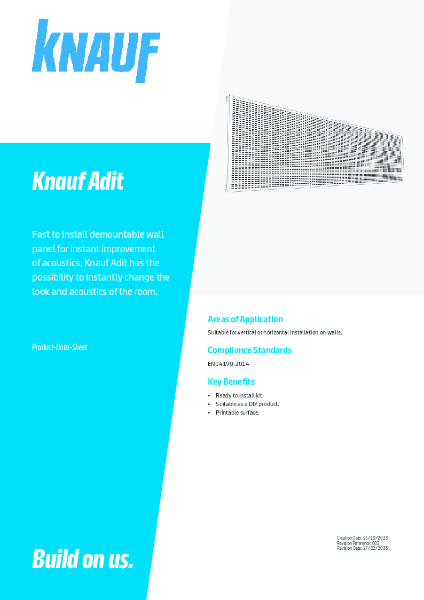

Product Data Sheet - Adit
