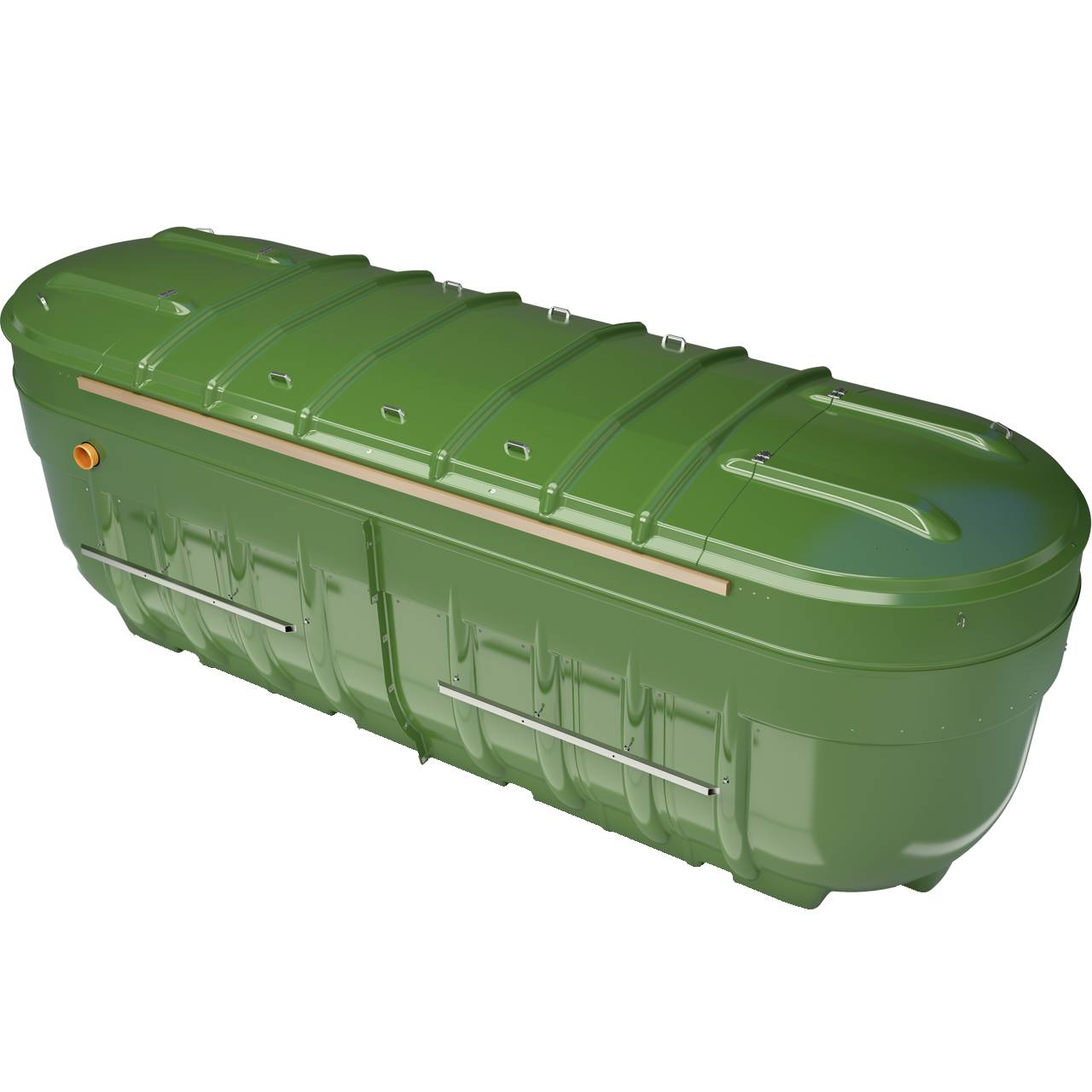

Klargester BioDisc Large Sewage Treatment Plant

Verified by manufacturer 5 months ago

BF

Kingspan Klargester Variant:

A sewage treatment plant range for commercial applications.

Jump to:
+44(0) 1296 633 033 Website

Application

  • Pubs, hotels and restaurants
  • Schools
  • Nursing/ residential homes
  • Housing developments
  • Holiday and caravan/ camping sites
  • Residential parks (mobile or static caravan sites)
  • Factories, offices, industrial estates and commercial business parks
  • Construction sites - welfare facilities
  • Distribution centres
  • Leisure parks/ attractions
  • Sports/ health centres
  • Energy from waste sites

*Commercial kitchens and catering require the use of grease traps before the treatment system.

Description

Kingspan Klargester BioDisc® is a single packaged system, which offers affordable running costs due to its design and operational efficiencies. It is suitable for a variety of commercial applications– from hotels to offices, pubs to campsites and domestic wastewater from industrial buildings. The Kingspan Klargester BioDisc® is also fully compliant with European Standards, including EN 12255 and EN 12566-3 for less than 50 PE systems.


Features and benefits:

  • Low odour – tested in accordance with EN 13725 (report available on request).
  • Low noise – utilising a rotating disc as opposed to noisy blowers.
  • Affordable running costs over the expected 20 year lifetime of the product.
  • Tailored technical support from our expert teams.
  • SmartServ Pro remote monitoring option available (as an optional extra).
  • Single piece tank delivered directly on site.
  • Flow Management Continuous treatment even with over or under load.
  • Fully removable covers for simple maintenance
  • Variable inlet invert/outlet options.
  • A fully managed package which includes; design, installation, smart commissioning, service and monitoring.

General information

Color

Green

Material

Glass Reinforced Plastic (GRP)

Shape

Other

Length

4345 mm

5235 mm

7755 mm

10420 mm

13600 mm

Width

2450 mm

Height

2825 mm

3325 mm

2830 mm

3230 mm

Warranty description

Three year

Subject to regular maintenance by either Kingspan Service or a Kingspan Klargester Accredited Installer and Service Partner. Online registration required.

Uniclass

Pr_70_55_76_66 Private packaged sewage treatment unitsPrimary

CAWS

R17/325 Packaged sewage treatment units

Specification data - Packaged sewage treatment units

Standard

To EN 12255.

BF-BN.

Process

Biodisc.

Power supply

1 Phase.

Standard.

3 Phase.

Optional.

Tank material

Glass-reinforced plastic (GRP).

Integral accessories

Control panel, full removable and lockable covers, full platform access to motor and bearings.

Current

Full Load Current - Single Phase: 1.3 A; Full Load Current - Three Phase: 0.42 A.

Dimensions

L x W x H.

4345 x 2450 x 2825 mm.

4345 x 2450 x 3325 mm.

MaximumFlowRate

10 m3 daily.

Accessories

None.

SmartServ Pro remote monitoring.

Local and remote alarm options available with SmartServ Pro. Consult manufacturer and insert requirements.


Integrated loss of rotation alarm.

Literature

Kingspan Klargester Biodisc Commercial BD-BN Brochure

Kingspan Klargester Biodisc Commercial BD-BN Brochure

BF BioDisc

BF BioDisc

BG BioDisc

BG BioDisc

BH - BL BioDisc

BH - BL BioDisc

BM BioDisc

BM BioDisc

BN BioDisc

BN BioDisc

BN BioDisc Manual

BN BioDisc Manual

BH - BL BioDisc Installation Manual

BH - BL BioDisc Installation Manual
