Klargester AquaHold - Attentation Tanks

Verified by manufacturer over a year ago

Kingspan Klargester

Stormwater attentation tanks for urban applications.

Jump to:
+44(0) 1296 633 033 Website

Application

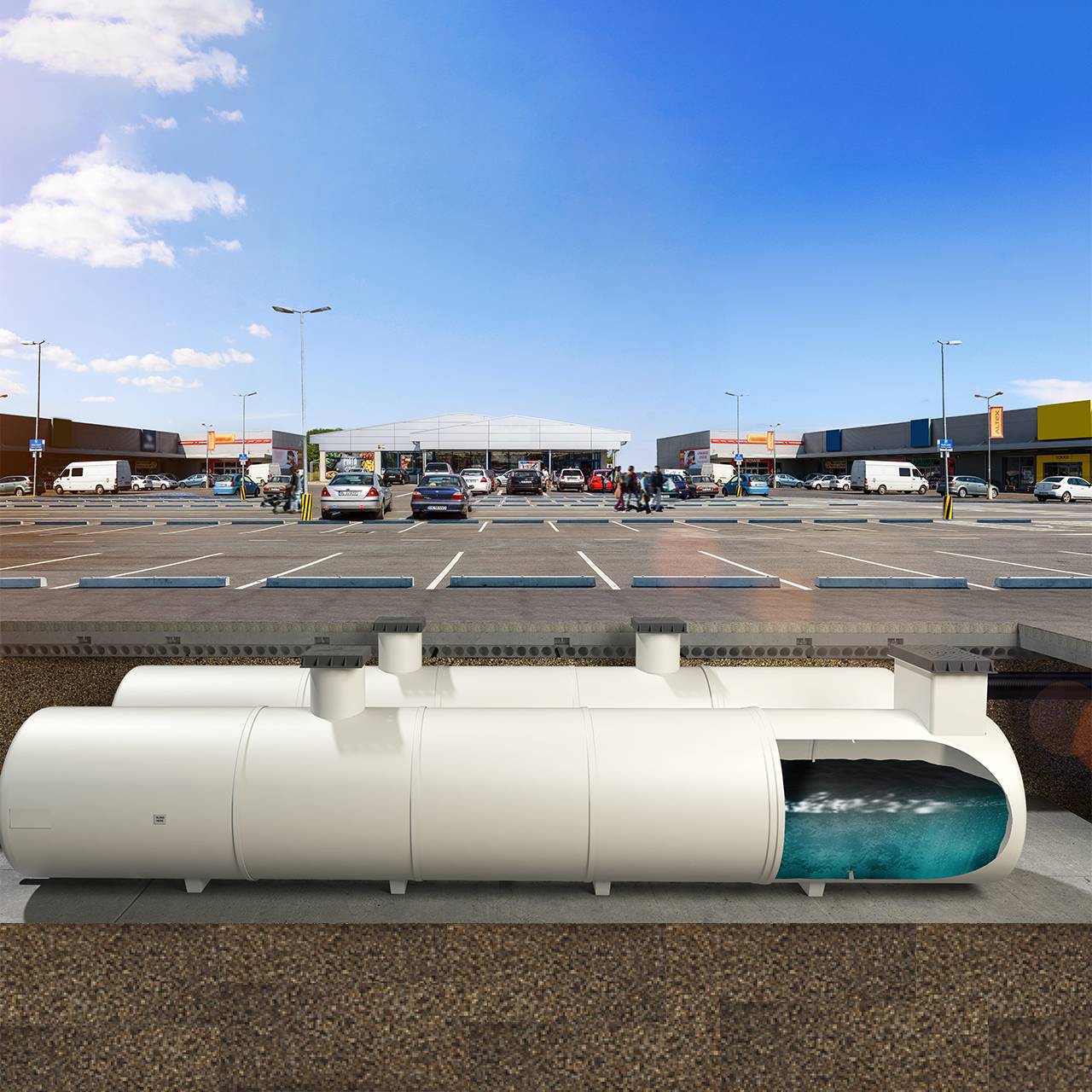

  • Car parks
  • Motorways
  • Low lying land
  • Residential developments

Description

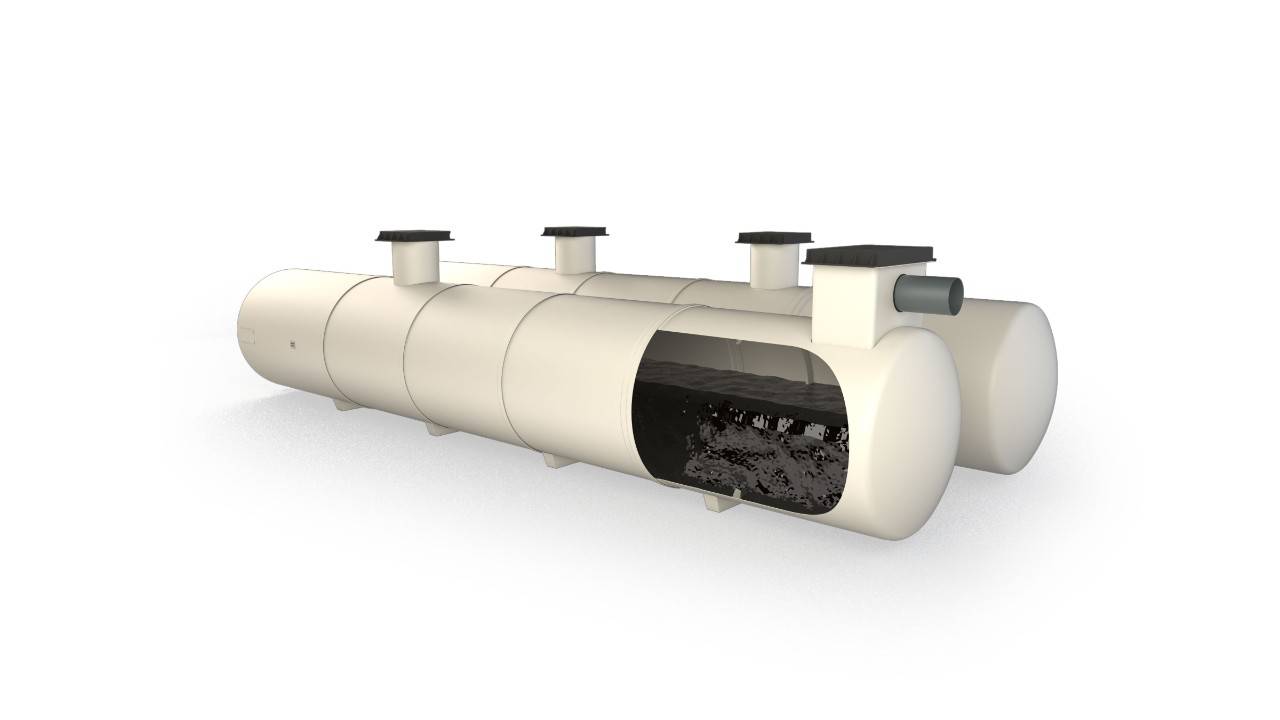

The effective management of urban drainage with the Kingspan Klargester AquaHold - Master & Storage Tanks is vital to support the sustainable development of metropolitan communities.


Klargester AquaHold tanks store increased runoff rates due to new developments and excess flows from storm events. Attenuation serves as a way to help mimic natural runoff rates that have been altered through developing sites.


The Klargester AquaHold range is available from 5000–79 000 litres in a single tank installation or larger modular solutions.


Features and benefits:

  • A single piece of pre-fabricated tank means one crane lift/drop.
  • Chamber large enough for ladder access in emergency situations.
  • Full design and technical support provided for your site.
  • Less on site labour compared with concrete chambers.
  • Easy to service and maintain, with access from manhole cover for silt removal.
  • Reduced installation time, saving you money.
  • Fewer health and safety risks on site.

General information

Color

Cream

Material

Glass Reinforced Plastic (GRP)

Shape

Other

Warranty description

Three year

Guidance for specification option:

Three year warranty when registered online and must be serviced by a Kingspan engineer or accredited service partner. Other terms and conditions apply.

Uniclass

Pr_60_50_96_36 Glass fibre-reinforced plastics tanksPrimary

CAWS

R12/460 Storage tanks

Specification data - Glass fibre-reinforced plastics tanks

Arrangement

One piece underground tank.
