Kinloch 120, 180 and 240 cm Trough Urinal Central Outlet

Kinloch 120, 180 and 240 cm Trough Urinal Central Outlet

Armitage Shanks

This economically priced trough urinal in stainless steel is available in 4 standard sizes and made to measure "bespoke" sizes.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

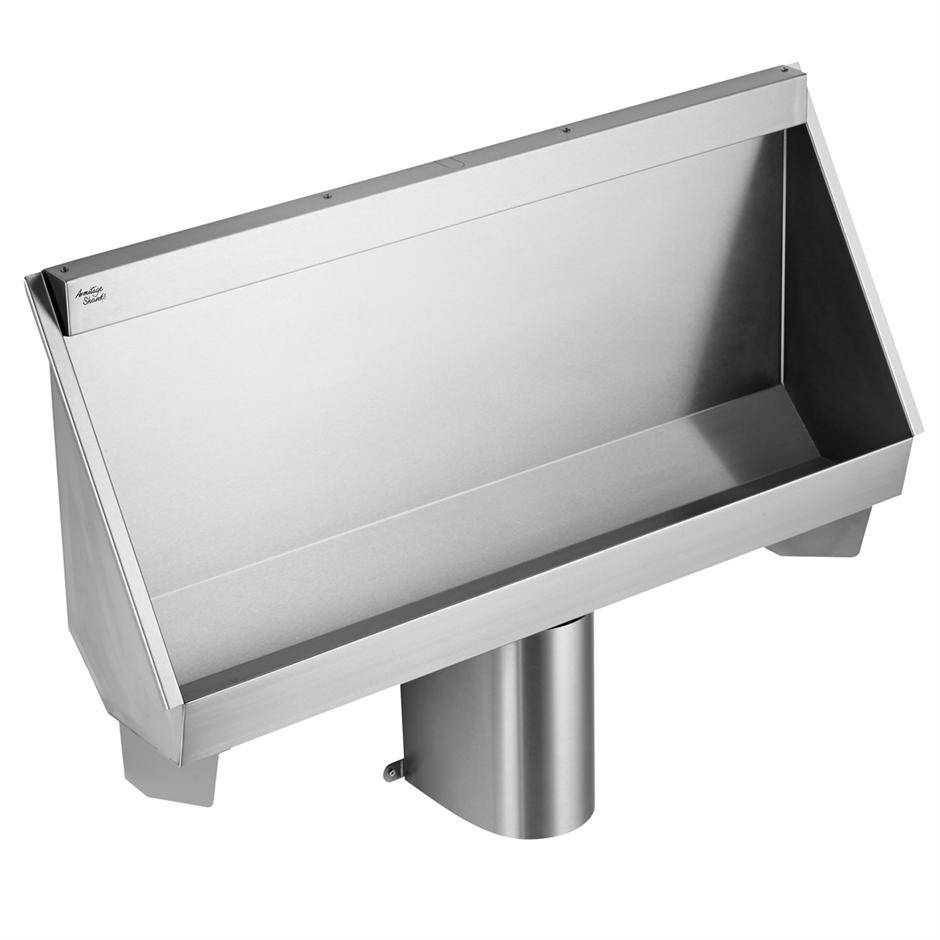

Kinloch urinal 120cm long complete with 2" domed strainer waste, central outlet, complete with flushpipes and autocistern

  • Stainless steel
  • Bespoke sizes available
  • Four sizes
  • Cost effective

General information

Finish

Stainless Steel finish - (MY)

Features

Stainless steel trough urinal 240 cm c/w auto cistern

Stainless steel trough urinal 120 cm c/w auto cistern

Stainless steel trough urinal 180 cm c/w auto cistern

Shape

Rectangular

Size

567 x 265 x 2400 mm

567 x 265 x 1200 mm

567 x 265 x 1800 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_93_82 Wall-hung urinalsPrimary

CAWS

N13/315 Urinals and auto-flushing cisterns

Specification data - Wall-hung urinals

Product Reference

S6388 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal, 120cm Top Inlet, Centre Outlet

S6389 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal, 180cm Top Inlet, Centre Outlet

S6390 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal, 240cm Top Inlet, Centre Outlet

S6384 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal To Specification, Up To 120cm Long, Centre Outlet

S6385 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal To Specification, Up To 180cm Long, Centre Outlet

S6386 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal To Specification, Up To 240cm Long, Centre Outlet

S6387 - Kinloch Trough Urinal Central Outlet

Kinloch Trough Urinal To Specification, Up To 305cm Long Centre Outlet

Finish

Stainless Steel finish - (MY)

Trough Urinal Corner Plinth

S6205 - Trough Urinal Corner Plinth

Corner Plinth For Kinloch Trough Urinal

Not required

Trough Urinal Joining Strip

S6206 - Trough Urinal Joining Strip

Kinloch Stainless Steel Cover Strip

Not required

Standard product features

Trough Urinal:

  • Material: Stainless Steel
  • Weight: 20.60 kg
  • Standards: Manufactured from 1.5mm Stainless Steel 1.4301 (304) to BSEN 10088: part 2: 2005

Product Options

Kinloch urinal complete with central domed strainer waste 2in BSP outlet. Knock out inlet position allows pipework to be exposed or concealed. Urinals on 2 or more walls can be joined using S6206MY stainless steel cover strip and S6205MY stainless steel corner plinth.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
