Application

Suitable for use on rectangular, circular and flat oval ductwork in HVAC/ building services applications for both new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.

Description

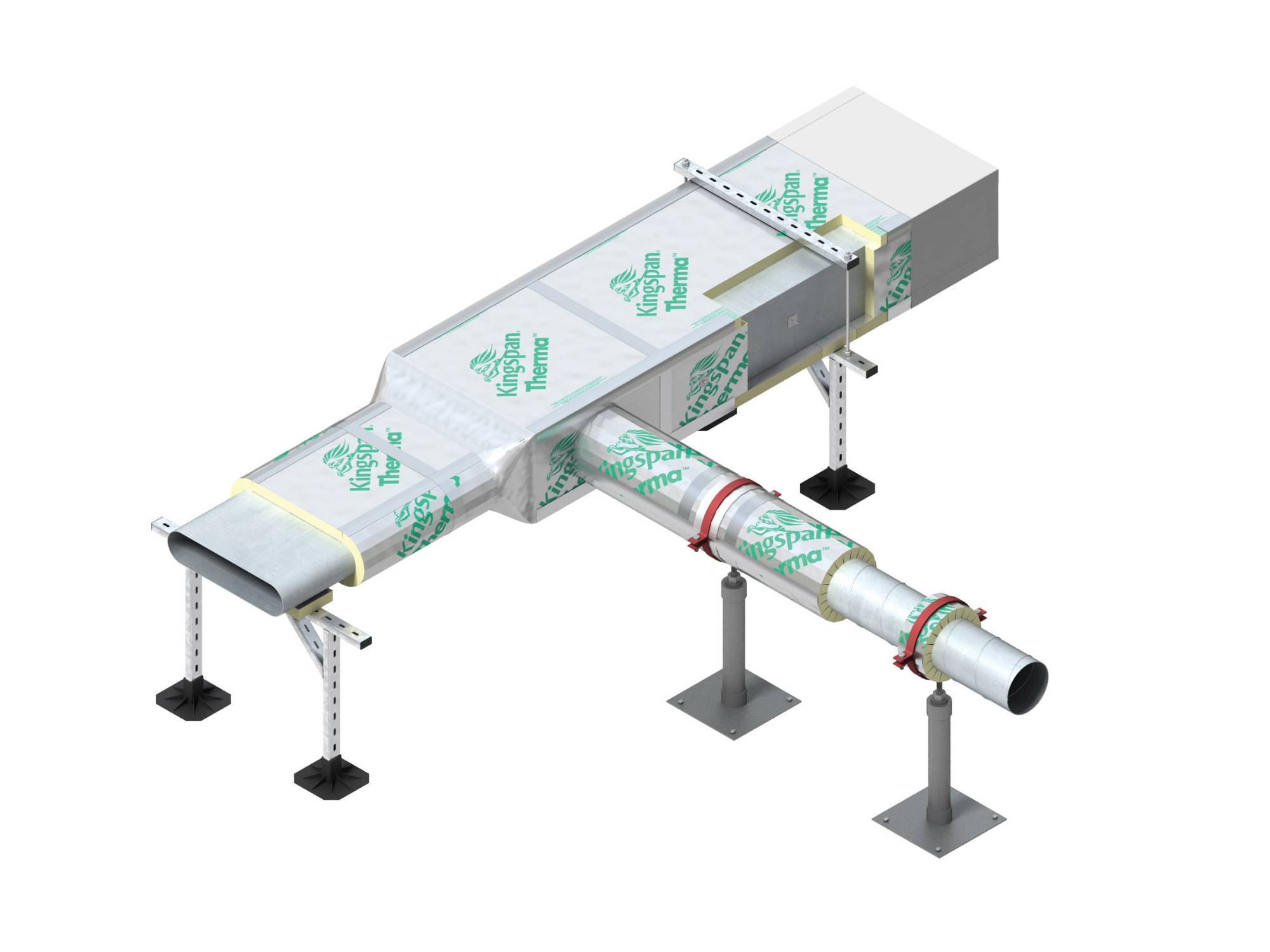

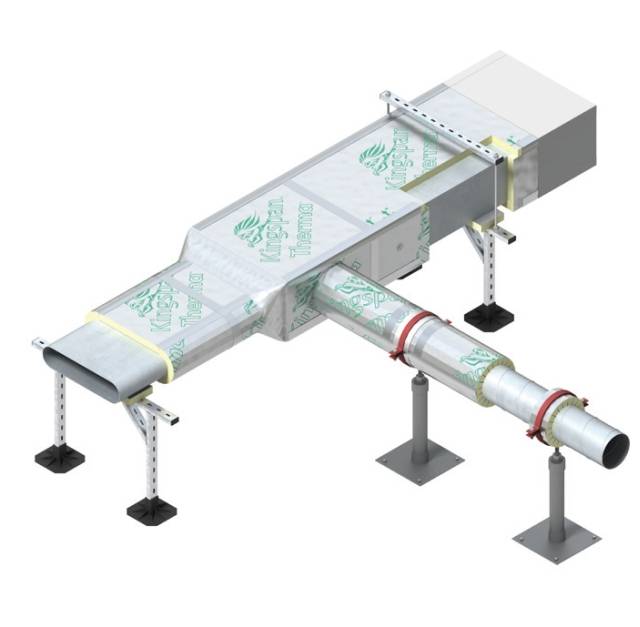

An energy efficient rigid insulation for rectangular, circular and flat oval HVAC ductwork installed outdoors that is suitable for new build and refurbishment projects in the residential, commercial, institutional and industrial sectors. The insulation has a fibre-free rigid polyisocyanurate (PIR) insulation core, faced on both sides with a protective low vapour-permeability trilaminate foil.

Insulation located outdoors must be protected with a compatible weatherproof material.

Insulated duct support inserts:

Load-bearing insulation inserts can be fabricated from standard insulation boards for ductwork installed outdoors.

Flat rectangular insulation strips are used on support brackets with rectangular and flat oval ductwork. Curved strips (crocodile strips) or strips of Tarec™pir pipe insulation are used on support brackets with circular ductwork.

Standards:

Kingspan Therma™ Duct insulation boards are manufactured to the highest standards under a quality control system certified to:

  • BS EN ISO 9001: 2015 (Quality Management Systems. Requirements).
  • BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements).
  • BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements).

Sustainability:

CFC-free and HCFC-free, with zero ozone depleting potential (ODP) with a global warming potential (GWP) of ≤5.

Green guide rating:

BRE Global Green Guide Rating of A+.

Ecoprofile:

The score obtained by Kingspan Therma™ Duct Insulation from the BRE Global environmental profiles methodology life cycle assessment is available online at Green Book Live, Certificate no. 500. The lower the ecopoints, the lower the environmental impact.

BES 6001:

Certified to BES 6001 ‘Excellent’ (Framework Standard for Responsible Sourcing).

Application:

Suitable for use on rectangular, circular and flat oval ductwork in HVAC/ building services applications for both new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.

General information
Color

Yellow

Finish

Varies

Material

Polyisocyanurate (PIR) foam

Shape

Varies

Size

1200.00 x 600.00 x 20.00mm

1200.00 x 600.00 x 50.00mm

1200.00 x 600.00 x 40.00mm

1200.00 x 600.00 x 30.00mm

1200.00 x 600.00 x 25.00mm

Uniclass 2015
Mineral wool duct slab insulation (Pr_80_77_76_53)Primary
Specification data - Mineral wool duct slab insulation
Product Reference

Kingspan Therma™ Duct Insulation

Standard

BS EN ISO 9001:2015, BS EN ISO 14001: 2015, BS OHSAS 18001: 2007

Insulation material

Polyisocyanurate (PIR) foam

Insulation thickness (minimum)

20 mm

25 mm

30 mm

40 mm

50 mm

Vapour barrier material

Factory-applied aluminium foil (standard for indoor use)

Protection

The insulation must be covered with a waterproof finish

Accessories

Banding (preferably aluminium) and matching seals for circular ductwork, mechanical fixings on rectangular ductwork and a high strength self-adhesive aluminium foil vapour barrier tape

ThermalConductivity

0.023 W/m·K from 10°C to 19°C

Reaction to fire classification

Euroclass RtF E

FM approved

No

Global warming potential

≤5

Ozone depletion potential

Zero

Compressive strength (minimum)

100 kPa at 10% compression

Closed cell content

≥90%.

Nominal density range

30–35 kg/m³

Face Size (length x width)

600 x 1200 mm

1200 x 2400 mm

Standard product features

Colour:

Yellow.

Material:

Polyisocyanurate (PIR) foam.

Size:

1200 x 600 or 1200 x 2400 mm.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
