This product is no longer available

Kingspan TEK Cladding Panel
Application

Infilling the apertures in a building or sheathing the structural frame.

Description

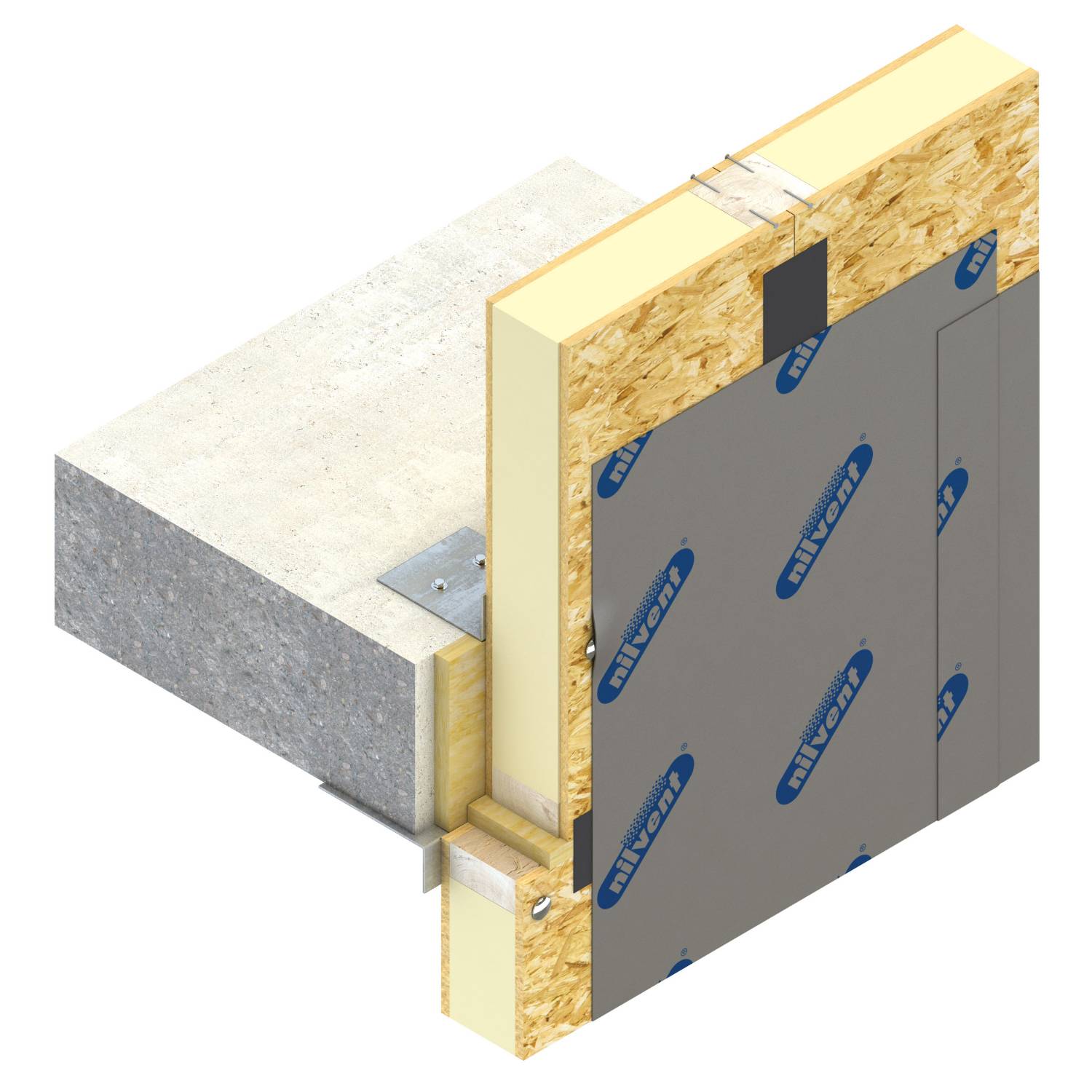

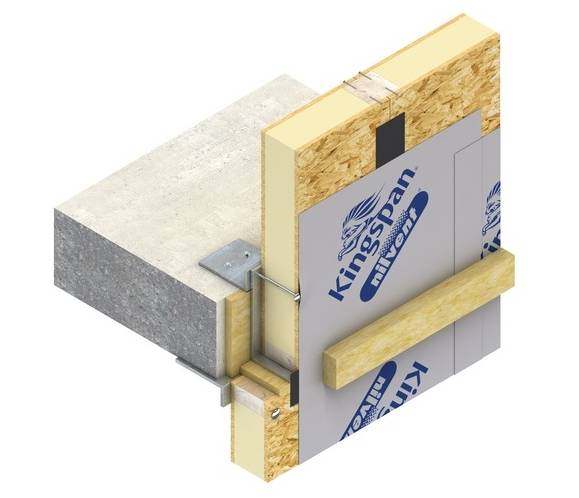

Structurally insulated panel for use within a building or fixed to the outside structural frame for infilling apertures and sheathing.

Consists of a high performance fibre-free rigid urethane insulation core, sandwiched between two layers of Oriented Strand Board type 3 (OSB/3).

As standard, panels are PEFC Chain of Custody certified in accordance of the TUV NORD CERT auditing and certification procedures and are subject to regular surveillance audits. Upon request, the panels can achieve FSC (FSC-C109304) certification.

Application:

Infilling the apertures in a building or sheathing the structural frame.

Responsible sourcing:

Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) for boards produced at Kingspan Insulation’s Selby manufacturing facility.

General information
Shape

Rectangle

Uniclass 2015
Pr_20_93_85_90 Timber structural insulated panels (SIPs)Primary
CAWS

G20/348 Structural insulated wall panels

H20/10 Sheet cladding

H20/150 Sheet cladding

Specification data - Timber structural insulated panels (SIPs)
Product Reference

Kingspan TEK Cladding Panel (142 mm)

Insulation material

Polyurethane (PUR) foam board

Thickness

112

Panel facings

15 mm OSB/3

Fire performance rating

Euroclass RtF D

Overall thickness

142 mm

Third party product certification

BBA Certificate 02/S029

Global warming potential

Less than 5

Green guide rating

A or A+ depending on the full wall construction

Ozone depletion potential

Zero

Standard product features

Colour:

Yellow.

Shape:

Rectangle.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 7 2.0
Revit
Revit 2017 7 2.0
Vectorworks
- 1.0
AECOsim
- 1.0
ARCHICAD
- 1.0
Download now from NBS National BIM Library
