Suitable for all buildings with LEED and BREEAM requirements or where primary thermally broken thermal insulation and superb airtightness is required.

Description

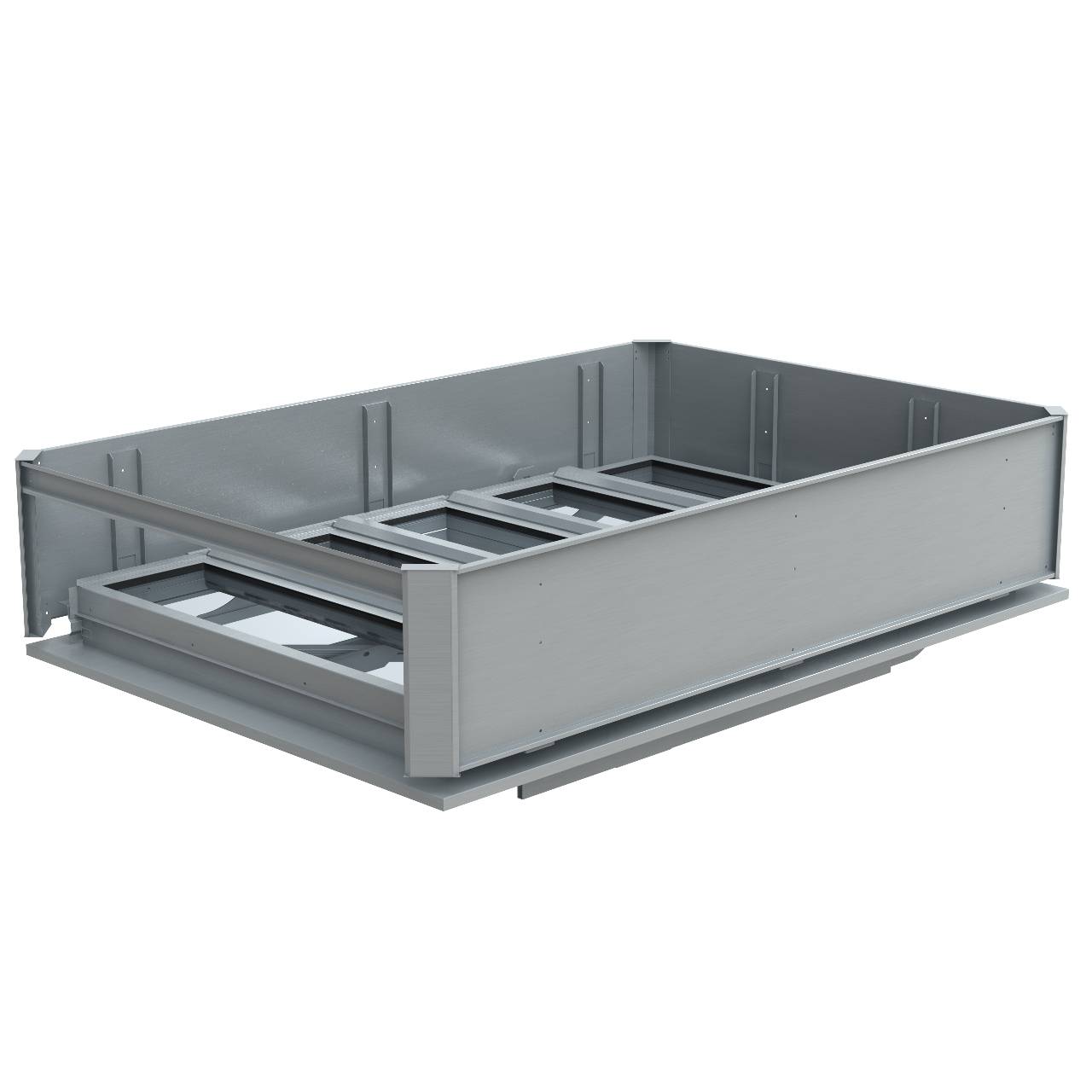

Kingspan Optima energy-efficient louvred ventilator for both smoke and heat exhaustion and ventilation. The Optima offers an optimum contribution to the fire safety, comfort and energy management of a property and is suitable for use in sustainable buildings. In contrast to other louvred ventilators, the Optima is completely thermally separated. Not only the louvres, but also the base gutter construction is thermally insulated, thereby combining the advantages of a louvred ventilator and the unique performance of a double flap ventilator.

The system is extremely airtight. With a pressure of 600 Pa, the system more than meets the requirements for Class 4 in accordance with BS EN 12207. The air leakage loss with a positive pressure difference of 100 Pa is 0.4 m³/hour/m². The Optima also performs well in other areas, it achieves high insulation values from 1.1 W/m²K, depending on the type and version. Water tightness testing up to 1050 Pa in accordance with BS EN 12208. The system has been tested and is certified in accordance with BS EN 12101-2 and is CE marked.

Features and benefits:

  • Multifunctional application (facade and flat roof application (0–15°).
  • Very large geometrical surface - up to 9.75 m².
  • Can be fully customized in louvre height and flange type to fit the exact specifications for optimal installation.
  • Fully thermally broken solution, with high insulation value.
  • High performance on air tightness (air leakage of 0.4 m³/h/m²).
  • Designed for LEED and BREEAM high performance buildings.

Applications:

Suitable for all buildings with LEED and BREEAM requirements or where primary thermally broken thermal insulation and superb airtightness is required.

General information
Finish

Anodized

Qualanod.

Polyester powder coated, double layer

Insert RAL colour requirement, 110 μ thick Qualicoat).

Polyester powder coated, single layer

Insert RAL colour requirement, 60 μ thick (Qualicoat).

Untreated

Standard.

Material

Aluminium sheet EN AW 5754

Aluminium profile EN AW 6060

Ethylene propylene diene monomer (EPDM) seals EPDM 4431 to base and gutters

Fastening materials, stainless steel A2

Uniclass 2015 Natural smoke and heat exhaust ventilators (Pr_70_65_04_56)
Specification data
Product Reference

Kingspan Optima Smoke and Heat Exhaust Ventilator - Thermally Broken

Finish

Anodized

Qualanod.

Polyester powder coated, double layer

Insert RAL colour requirement, 110 μ thick Qualicoat).

Polyester powder coated, single layer

Insert RAL colour requirement, 60 μ thick (Qualicoat).

Untreated

Standard.

Louvre -
Material

Double glazing 4 - 15 - 3.3.2

1.14 W/m²K.

Isolux five wall

1.34 W/m²K.

Sandwich panel 25 mm

1.23 W/m²K.

Type

060

040 mm width.

120

1200 mm width.

180

1800 mm width.

240

2400 mm width.

250

2500 mm width.

Quantity

3

1100 mm long ventilator.

4

1101–1500 mm long ventilator.

5

1501–1900 mm long ventilator.

6

1901–2300 mm long ventilator.

7

2301–2700 mm long ventilator.

8

2701–3100 mm long ventilator.

9

3101–3500 mm long ventilator.

10

3501–3900 mm long ventilator.

Base

GHB

Insulated high base.

GHB with flange insulation

Insulated high base.

HB

High base.

LB

Low base.

Operation

K

Cable operation.

M

Motor operation (24 V DC, 230 V AC).

M24V

Motor operation 24V (to BS EN 12101-2).

P

Single-action compressed air operation.

P2

Double-action compressed air operation.

P2B

Double-action compressed air operation with fire function (to BS EN 12101-2).

PB

Single-action compressed air operation with fire function (to BS EN 12101-2).

PB-FS

Single-action compressed air operation with fire function failsafe (up to 13 louvres) (to BS EN 12101-2).

Flanges

F

Flexible flange.

F2

For insulation glass.

F5

For upstand (folded edge 90°).

F7

Connection continuous rooflight.

Accessories

Insert requirements, can be designed to incorporate bird or insect mesh.

Standard product features

Louvre height:

Flexible between 301–400 mm.

Material:

  • Aluminium sheet EN AW 5754.
  • Aluminium profile EN AW 6060.
  • Ethylene propylene diene monomer (EPDM) seals EPDM 4431 to base and gutters.
  • Fastening materials, stainless steel A2.

Weight:

Dependent on louvre type and quantity, consult manufacturer's literature for information.

Aerodynamic surface:

Dependent on louvre type and quantity, consult manufacturer's literature for information.

Recyclability:

The aluminium used comprises 80% recycled aluminium. 60–80% less CO2 emissions are released in the recycling of aluminium than in the production of primary aluminium.

Performance:

  • BS EN 12101-2 certified: B30030, Re 1000, WL1500, SL750 (type PB/ P2B/ M24) T(-15), SL250 (type PBFS) T(-15).
  • Air permeability at positive pressure: To BS EN 1026: 600 Pa; to BS EN 12207: Class 4.
  • Water tightness: to BS EN 1027: 1050 Pa; to BS EN 12208: Class E1050.
  • Resistance to varying wind loads: Class C4, 800 Pa (=P2) deflection <1/300 in accordance with BS EN 12210 and BS EN 12211, tested for strength to 2400 Pa.
  • Acoustics (to BS EN ISO 10140-2): RW = 21/ 26/ 31 dB.
  • Impact resistance: 1200 J.
