Kingspan Kooltherm Insulated Pipe Support Inserts - Phenolic Foam Pipe Support Inserts

Verified by manufacturer 6 days ago

60 kg/m³

Kingspan Technical Insulation Ltd Variant:

Load-bearing phenolic insulation for building services pipework.

Jump to:
+44 (0) 1457 890400 Website

Application

On cold water applications Kooltherm Insulated Pipe Support Inserts shall be used to minimise the risk of thermal bridging, limit the formation of condensation and facilitate the installation of a continuous vapour barrier. On low temperature hot water (LTHW) services, Kooltherm Insulated Pipe Support Inserts shall be used to limit overall system heat loss, and to minimise the risk of heat transfer through supporting structures. Insulated Pipe Support inserts shall match the stated thickness of pipe insulation.

Description

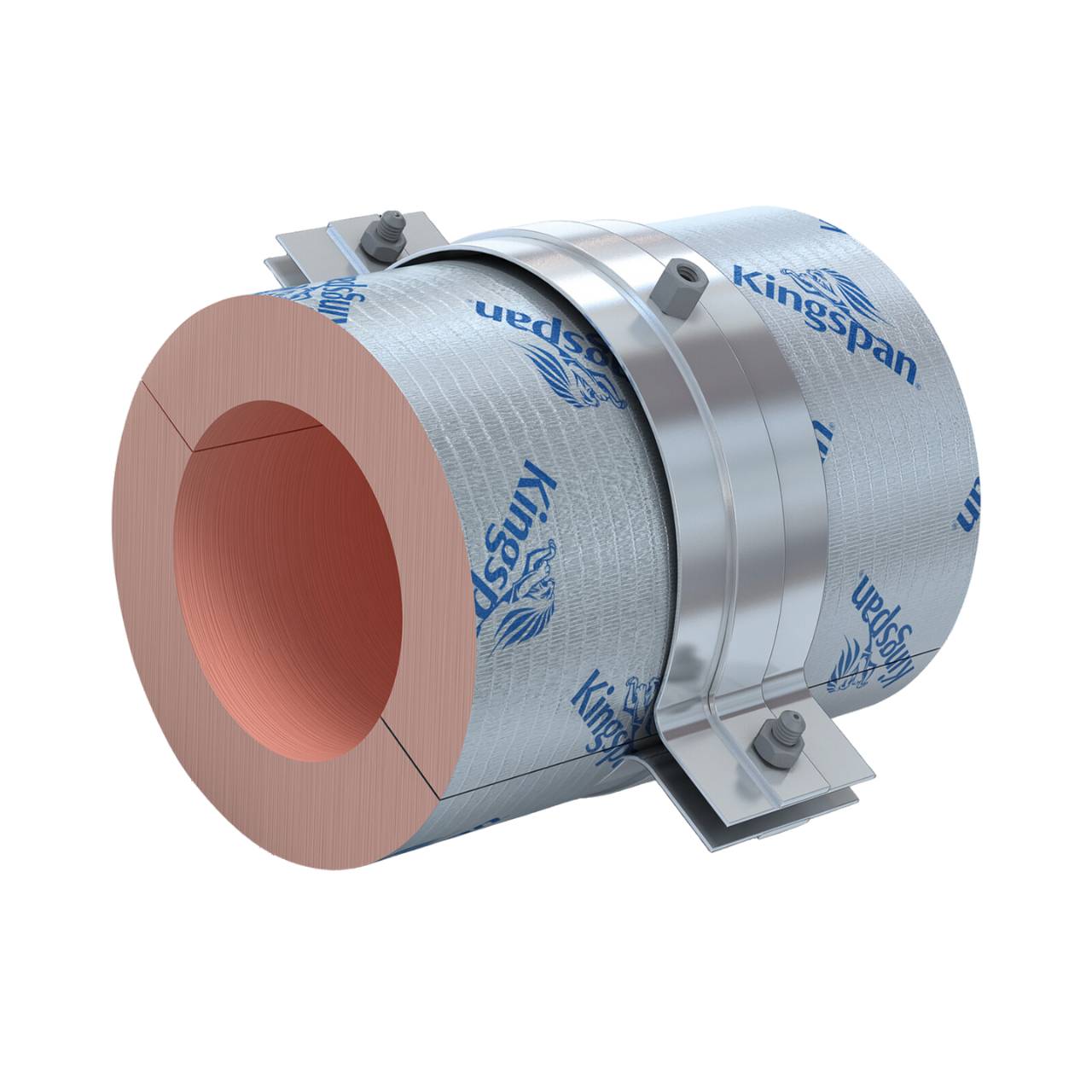

Kooltherm Insulated Pipe Support Inserts provide optimal load-bearing capacity to support the compressive loads imposed by pipework carrying water or other liquids.

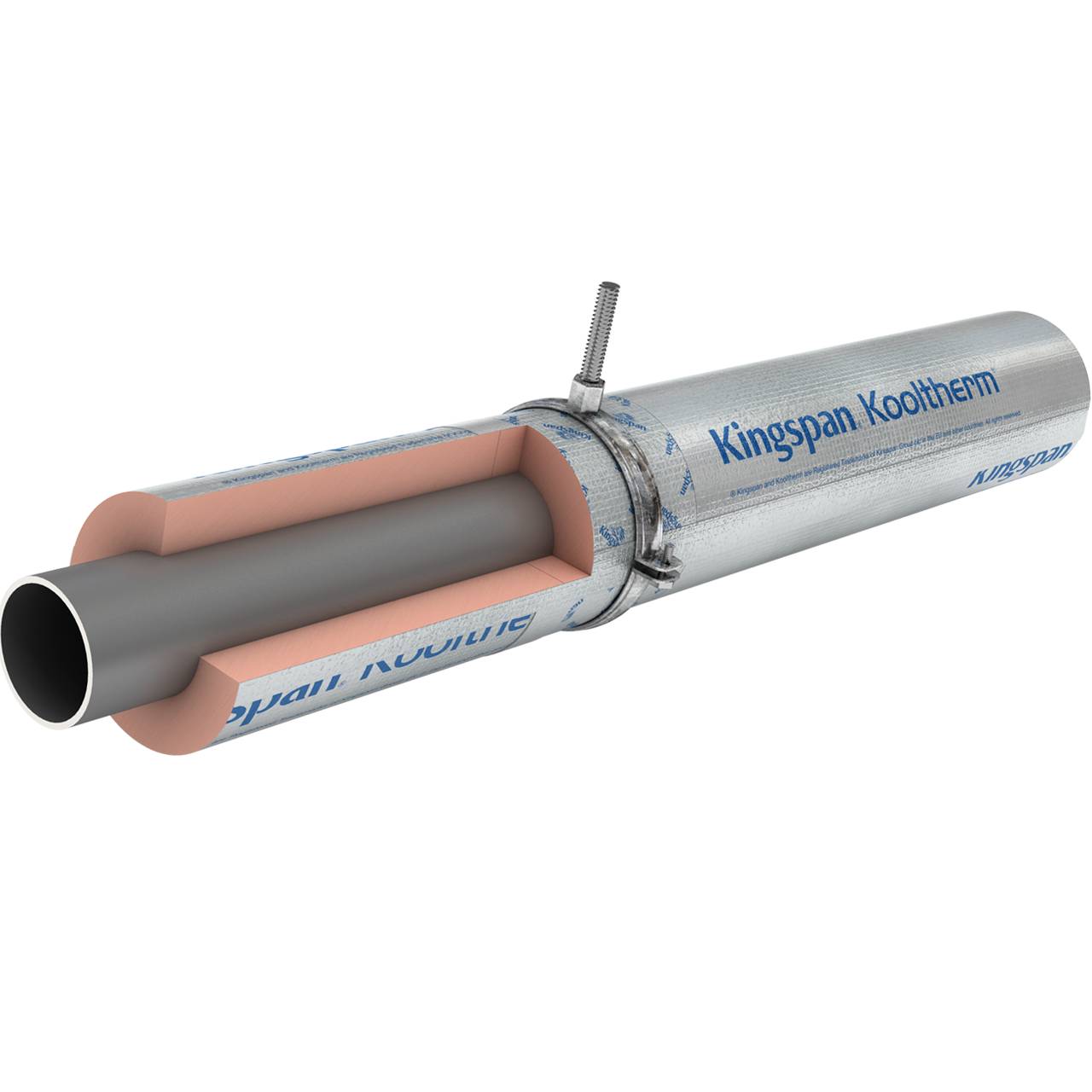

They are designed for use in pipe supports, hanger brackets and clamps, offering protection against insulation compression.

Kooltherm Insulated Pipe Support Inserts are pre-formed and pre-cut into sections, with a foil finish that serves as an integral vapour barrier. They include a self-adhesive overlap for ease of installation. They incorporate an integral metal spreader plate to enhance structural support where specified in manufacturer's guides.

Standards:

Kingspan Kooltherm Insulated Pipe Support Inserts with aluminium foil facing are CE marked to EN 14314 and are manufactured to the highest standards under a management system certified to:

  • BS EN ISO 9001:2015 (Quality Management Systems. Requirements).
  • BS EN ISO 14001:2015 (Environmental Management Systems. Requirements).
  • BS ISO 45001:2018 (Occupational health and safety management systems).
  • BS EN ISO 50001:2018 (Energy management systems. Requirements with guidance for use).

Sustainability:

CFC-free and HCFC-free with negligible ozone depleting potential (negligible ODP) and a low global warming potential (GWP) of ≤5.

Environmental

Kooltherm Insulated Pipe Support Inserts are manufactured to BS EN ISO 14001: 2015.

Features and benefits:

  • Provide optimal load-bearing capacity and offer protection against insulation compression.
  • Designed for use in pipe supports, hanger brackets and clamps.
  • Will support compressive loads imposed by horizontal pipework carrying water or other liquids.

General information

Color

Pink

Grey

Finish

Foil

Material

Phenolic foam

Shape

Other

Length

99 mm

124 mm

200 mm

Manufacturer guidance

The length of Kooltherm Insulated Pipe Support Inserts depends on the pipe size - please see the Product Brochure for details. Longer support inserts are available upon request.

Height

Bespoke

Manufacturer guidance

Thickness available from 15 mm to 150 mm cut to suit application

Uniclass

Pr_80_77_76_62 Phenolic foam insulationPrimary

CAWS

S90/570 Insulation to pipework

U90/490 Site-applied insulation to ductwork

Specification data - Phenolic foam insulation

Classification data

Standard

To EN 14314.

Form

Pipe section.

Thermal conductivity

To BS EN ISO 8497, 0.035 W/m·K at 10°C.

Guidance for specification option:

Typical value.

Finish

Aluminium.

Guidance for specification option:

Aluminium vapour barrier foil.

Fire performance

Reaction to fire to BS EN 13501-1, BL-s1, d0.

Guidance for specification option:

For diameters ≤300 mm.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0%.

Insulation thickness (minimum)

15 mm.

Guidance for specification option:

Supplied in 5 mm increments; insert requirements.

Vapour barrier

-

Material

Aluminium.

Nominal density

60 kg/m³.

Guidance for specification option:

Typical value.

Operating temperature range

110°C.

Guidance for specification option:

Typical value.

Closed cell content

To BS EN ISO 4590 Method 1, >90%.

Colour

Pink.

Guidance for specification option:

Typical value.

Grey.

Guidance for specification option:

Typical value.

Typical compressive strength

250 kPa.

Guidance for specification option:

CS(10\Y)250.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Phenolic foam

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

30 year

Literature

Kooltherm Pipe Insulation, Technical Datasheet

Kooltherm Pipe Insulation, Technical Datasheet
