Application

  • Suitable for commercial and industrial roofing applications (including retail and leisure) up to a maximum pitch of 20º (if parallel to a ridge, maximum pitch of 5°).
  • Suitable for use on all roof systems for both new builds and refurbishment projects.
  • Energy-optimized renovations.

Description

Arched rooflights that can be used for natural daylighting, ventilation and smoke and heat extraction.

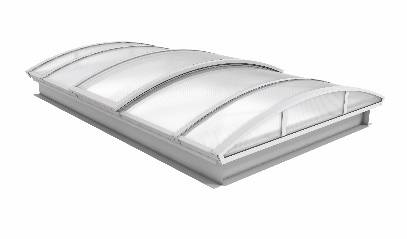

Kingspan Arcade Plus is a thermally broken continuous rooflight with a large span (1000–6000 mm) which can be individually adapted to the static requirements. The rooflight is suitable for use in new buildings or in renovation of heated commercial and office buildings to trade fair, sports and exhibition halls.

For every continuous rooflight solution, there is also the matching support construction in galvanized sheet steel. Depending on the light band span and the design of the glazing, two different inclination angles (25° and 45°) of the support will be used. Thermal insulation is guaranteed up to a height of 80 mm.

The rooflight flap comprises multi-chambered polycarbonate panels of the same thickness as the rest of the Arcade Plus rooflight, in an thermally broken aluminium/ PVC frame. The flaps can be opened for daily aeration and ventilation as well as for smoke extraction. The required fall arrest and safeguards are compatible with current Kingspan Light+Air rooflight systems.

Features and benefits:

  • A range of options and accessories allow versatile functionality.
  • Offers enhanced thermal performance to meet project specific requirements.
  • Thermally broken profile and flap system.
  • Can be designed as a melt out surface in the event of fire, or a smoke and heat extraction source.
  • Non-fragility to ACR (M)001:2014, Class B.

Applications:

  • Suitable for commercial and industrial roofing applications (including retail and leisure) up to a maximum pitch of 20º (if parallel to a ridge, maximum pitch of 5°).
  • Suitable for use on all roof systems for both new builds and refurbishment projects.
  • Energy-optimized renovations.

General information
Material

Bearing structure: Extruded aluminium and PVC

Base and span: Aluminium

Panel: Multi-chambered polycarbonate

Hinges and screws: Stainless steel/ galvanized steel

Uniclass 2015 Framed rooflights (Pr_30_59_72_31)
Specification data
Product Reference

Kingspan Arcade Plus Rooflight

Width

1000–6000 mm. Available in 10 mm increments; consult manufacturer and insert requirements.

Flap -
Ridge flap (w x l)

Not required

1500 x 2000 mm

2500 x 1000 mm

2500 x 2000 mm

Full flap (w x l)

1000–2520 x 1000 mm

1000–2520 x 2000 mm

Glazing

PC 16/ 7

2000–6000 mm span width. 1.8 W/m² K. 21 dB. Light transmission 45%. 46 g-value.

PC 20/ 7

2500–6000 mm span width. 1.6 W/m² K. 23 dB. Light transmission 44%. 45 g-value.

PC 10/ 4 + 10/ 4

1000–6000 mm span width. 1.7 W/m² K. 24 dB. Light transmission 37%. 43 g-value.

PC 10/ 4 + glass mat + PC 10/ 4

1000–6000 mm span width. 1.7 W/m² K. 24 dB. Light transmission 27%. 33 g-value.

PC 16/ 7 + PC 16/ 7

2000–6000 mm span width. 1.1 W/m² K. 25 dB. Light transmission 21%. 28 g-value.

PC 16/ 7 + 10/ 4

2000–6000 mm span width. 1.3 W/m² K. 24 dB. Light transmission 28%. 37 g-value.

PC 16/ 7 + glass mat + PC 10/ 4

2000–6000 mm span width. 1.3 W/m² K. 24 dB. Light transmission 20%. 29 g-value.

PC 16/ 7 + 6 mm PETG

2000–6000 mm span width. 1.8 W/m² K. 30 dB. Light transmission 38%. 43 g-value.

PC 10/ 2 Aerotech

1000–3300 mm span width. 2.0 W/m² K. 21 dB. Light transmission 74%. 71 g-value.

PC 16/ 3 Aerotech

2000–3500 mm span width. 1.3 W/m² K. 21 dB. Light transmission 65%.64 g-value.

PC 20/ 3 Aerotech

2500–3500 mm span width. 1.1 W/m² K. 21 dB. Light transmission 63%. 63 g-value.

PC 16/7 IR control white

2000–6000 mm span width. 1.8 W/m² K. 21 dB. Light transmission 22%. 31 g-value.

Accessories

Not required

Smoke and heat extraction system (SHE)

Opens the arcade rooflight flap to 150–170° when activated.

Ventilation motor

Standard lift of 300 mm. Enables opening for daily aeration.

Standard product features

Material:

  • Bearing structure: Extruded aluminium and PVC.
  • Base and span: Aluminium.
  • Panel: Multi-chambered polycarbonate.
  • Hinges and screws: Stainless steel/ galvanized steel.

Fire performance (to BS EN 13501):

Class B-s1-d0 for PC 10/4, PC 16/7 and PC 20/7, all aside are class E.

Product Options

Width:

The bearing structure consists of natural blank, extruded aluminium sections placed 1060 mm apart, 703 mm apart or 530 mm apart depending on required wind load and/ or snow load.

Flap:

Flap type (full or ridge) will vary dependent on size chosen and span width. Consult manufacturer's literature for information.
