Keymer Traditional Plain Roof Tile
Verified by manufacturer 11 days ago
Roof Tiling
Roof Tiling
Clay tile with flat profile laid in roofing and vertical applications.
Application
Suitable for external use for roofing or vertical cladding.
Description

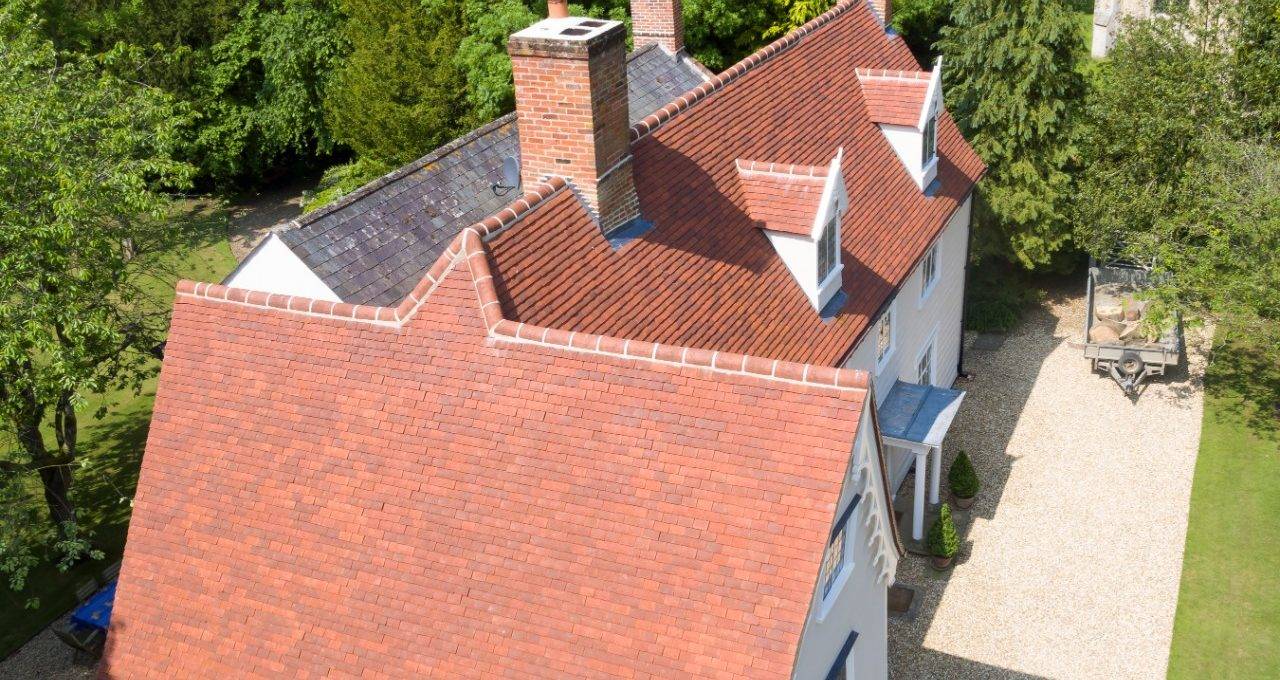

Clay tile with flat profile laid in roofing and vertical applications. Natural clay plain roof tiles with varied colour and texture that creates the appearance of an aged roof from new.
Feature and benefits:
- Varied texture.
- Appearance of aged roof.
- Textured tiling.
General information
Color | Red Brown Grey |
Finish | Textured |
Material | Clay |
Shape | Rectangle |
Length | 265 mm |
Width | 165 mm |
Uniclass | |
CAWS | H60/105 Clay roof tiling H60/3 Roof tiling H60/10 Vertical tiling H60/145 Clay vertical tiling |
Specification data - Clay plain tiles
Standard | To BS EN 1304. |
Tile type | Plain tile. |
Fire performance | |
External fire performance | A1. |
Reaction to fire | A1. |
Profile | Flat. |
Colour | RedGrey.Brown.Manufacturer guidanceVaried colour and texture of each tile. |
Surface finish | Textured. |
Size | 265 x 165 mm.Manufacturer guidanceHanging length: 245 mm. |
Thickness | 13 mm. |
Gauge | 100 mm. Guidance for specification option: Batten spacing (fixed gauge) |
Head-lap | 65 mm. |
Pitch | 40°. |
CoverWidth | 165 mm. |
Roof covering | 60 tiles/m². |
Weight | 1.2 kg. Guidance for specification option: Per tile. Weight as laid: 72.0 kg/m². Manufacturer guidanceWeight per pallet (including pallet & packaging): 0.988 tonnes. Quantity per pallet: 760. |
Battens | 38 x 25 mm. Guidance for specification option: Batten size, up to 600 mm rafter centres. Battens/m²: 10 m. |
Fixing | 38 x 3.35 mm aluminium ring shank clout head. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Clay |
