Keyfix KBJR Bed Joint Reinforcement
Verified by manufacturer 3 days ago
KBJR - 30W60
KBJR - 30W60

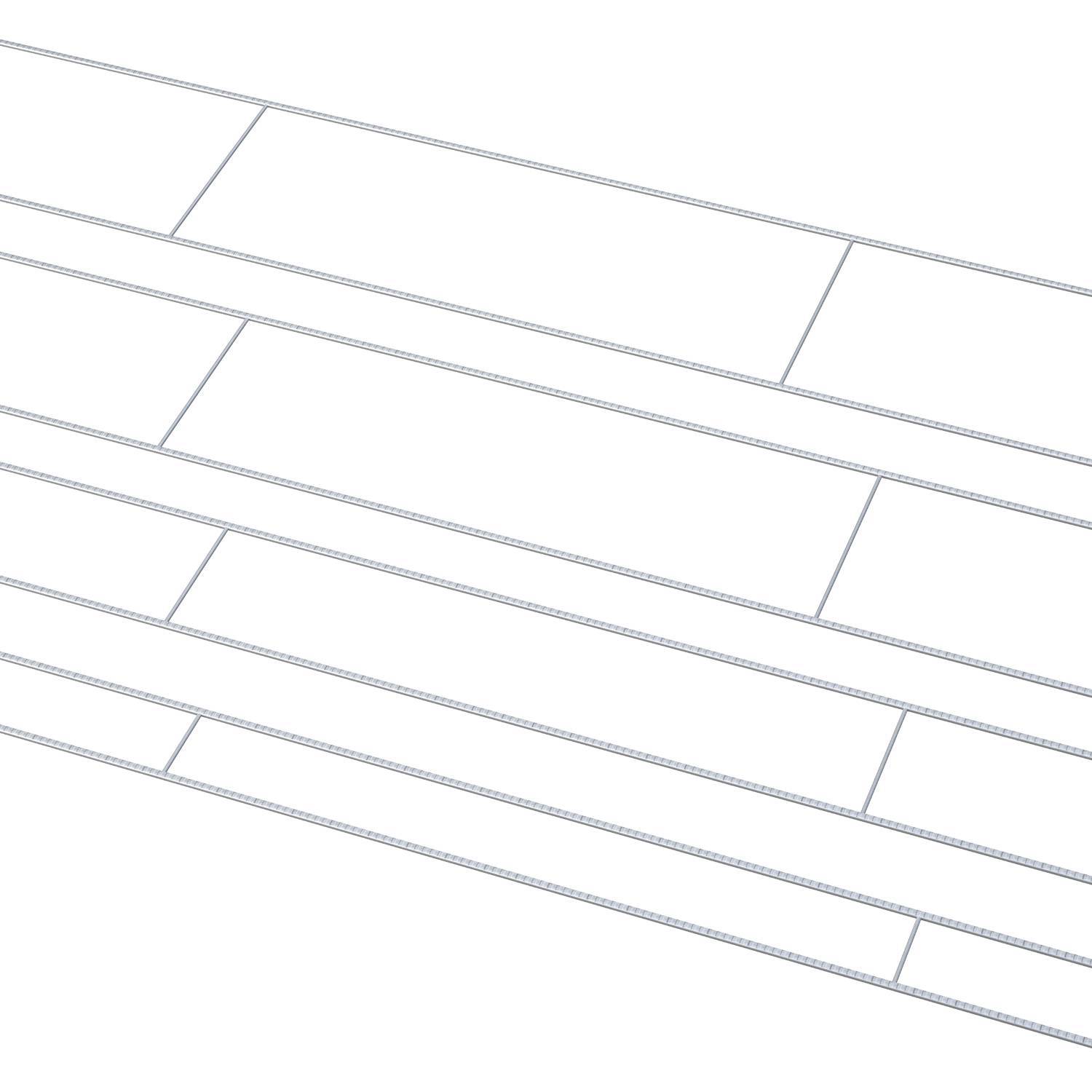

Bed joint reinforcement ladder.
Application
Helps to reduce the risk of cracking occurring in masonry walls and facades constructed from standard brickwork or blockwork up to 215 mm wide.
Description
Ladder style masonry reinforcement designed to help control the movement in masonry caused by shrinkage, stress and thermal movement in standard brickwork or blockwork up to 215 mm wide.
Features and benefits:
- UKCA and CE accredited.
- Manufactured from A1 non-combustible grade 304 stainless steel.
- Supplied in 2.7 m lengths, 20 lengths per pack to give 54 m per pack.
- Four standard KBJR widths to suit up to 215 mm wide blockwork.
- Flattened profile wire provides improved anchorage.
General information
Color | Silver |
Finish | Natural |
Material | Stainless steel |
Shape | Other |
Length | 2700 mm |
Width | 60 mm 100 mm 150 mm 175 mm |
Uniclass | |
CAWS | F30/43 Meshwork joint reinforcement F30/270 Meshwork joint reinforcement |
SKU Code | KBJR - 30W60 |
Specification data - Stainless steel bed joint reinforcement
Classification data | |
Standard | To BS EN 845-3. |
Third-party certification | UKCA and CE accredited. |
Configuration of bed joint reinforcement | Welded wire ladder. |
Dimensions | |
Wire size | 3 mm. |
Ladder or truss width (overall) | 60 mm. |
Corrosion protection | Grade 304 stainless steel (MX2, MX3 and MX4 exposure classes). |
Fire performance | |
Reaction to fire | A1, as defined in BS EN 13501-1. |
Bond strength | 8370 N. |
Shear load (maximum) | 3500 N. Manufacturer guidanceShear load capacity of welds. |
Suitable wall thickness | 102 mm brick or 100 mm block. |
Sustainability data
Material | Stainless steel |
