Keyfix EDL Frame Cramp Wall Tie
Verified by manufacturer 4 days ago
EDL-75 | 0–25 mm Cavity Width | 75 mm Length
EDL-75 | 0–25 mm Cavity Width | 75 mm Length
Masonry to in-situ structure frame cramp wall tie.
Application
- Suitable application determined by type performance.
- Type performance determined by fixing location in slotted upstand.
Description

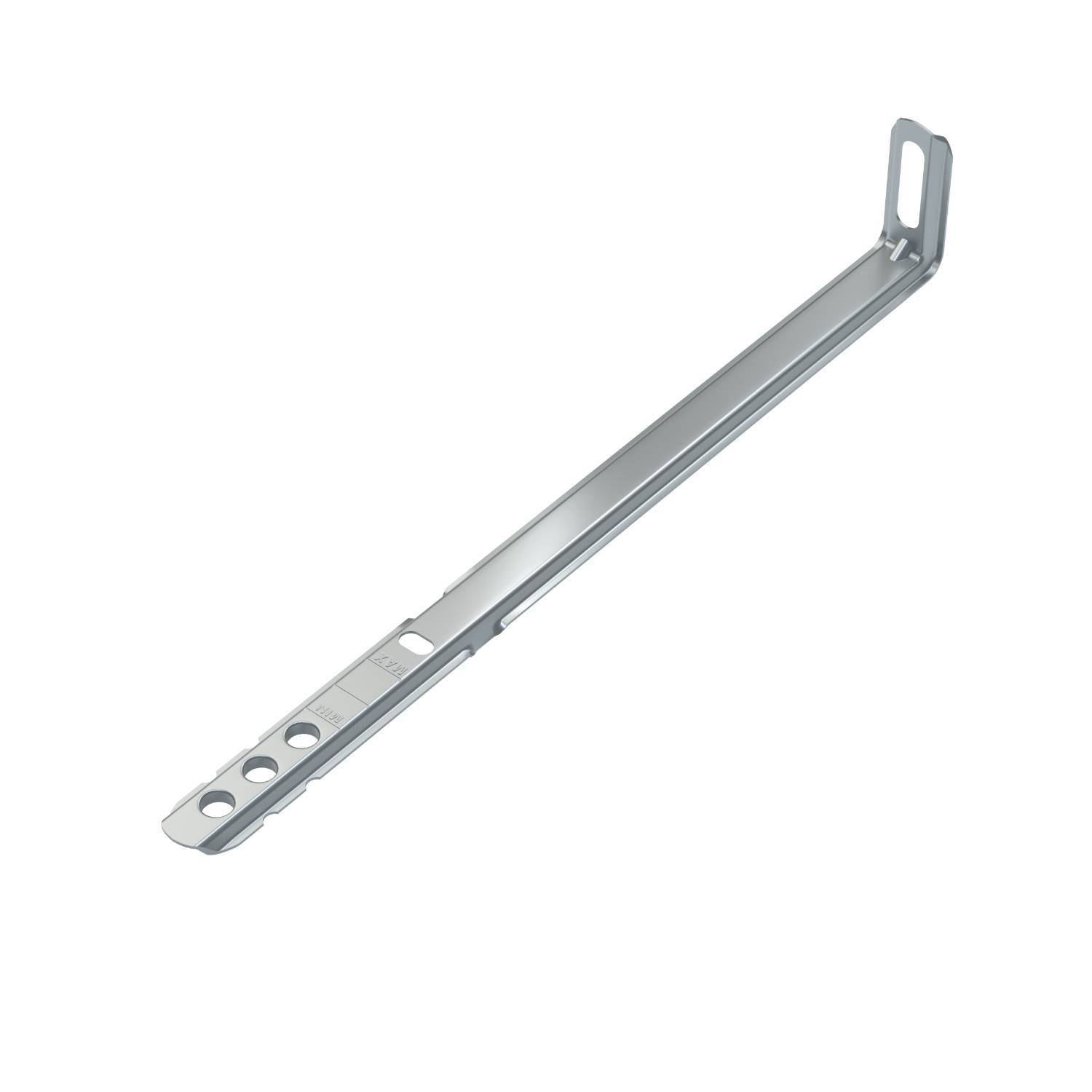

Stainless steel frame cramp wall tie to connect a masonry leaf to a concrete or steel inner structure up to a maximum overall cavity width of 400 mm.
Features and benefits:
- Wall tie in accordance with PD 6697:2019.
- UKCA and CE accredited.
- Manufactured from grade 304 austenitic stainless steel (grade 316 available on request).
- Suits up to a maximum cavity width of 400 mm.
- Embedment markings to aid installation.
- Slotted upstand to provide 22 mm vertical adjustment during installation.
- Integral drip feature.
General information
Color | Silver |
Finish | Natural |
Material | Stainless steel |
Shape | Other |
Length | 75 mm 100 mm 125 mm 150 mm 175 mm |
Uniclass | |
CAWS | F30/26 Wall ties F30/220 Wall ties F30/24 Cavity wall ties F30/214 Cavity wall ties |
SKU Code | EDL-75 |
Specification data - Shear wall ties
Classification data | |
Standard | To BS EN 845-1. |
Tie type | PD 6697 . |
Material | Stainless steel. |
Length | 75 mm. |
End types | Asymmetrical plate with slotted upstand to provide 22 mm vertical adjustment. |
Design embedment length (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Additional requirements | |
Compressive load capacity | 3290 N. |
Tensile load capacity | 680 N (top); 1140 N (middle); 2820 N (bottom). |
Cavity width | 0–25 mm. |
Sustainability data
Material | Stainless steel |
