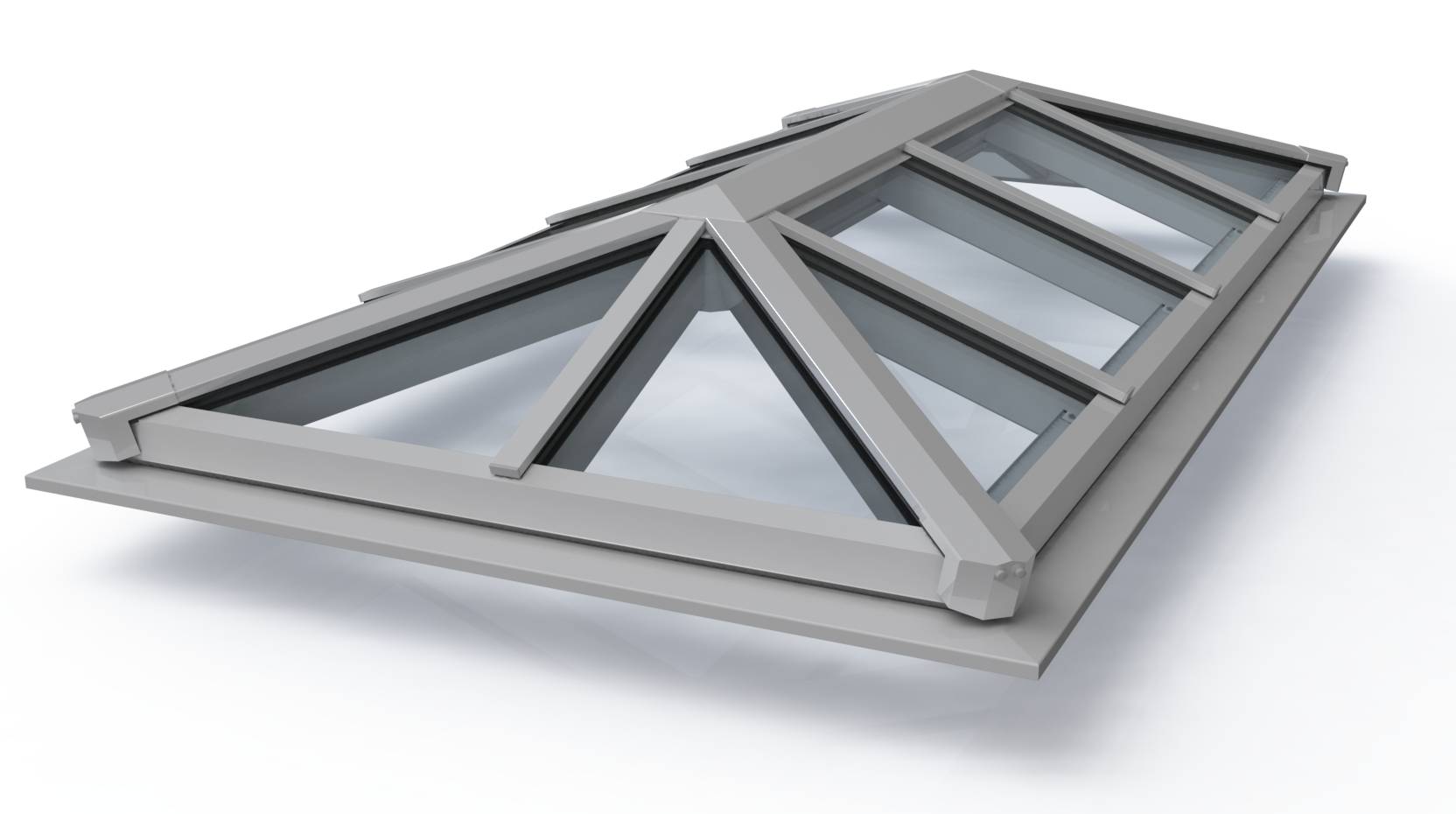

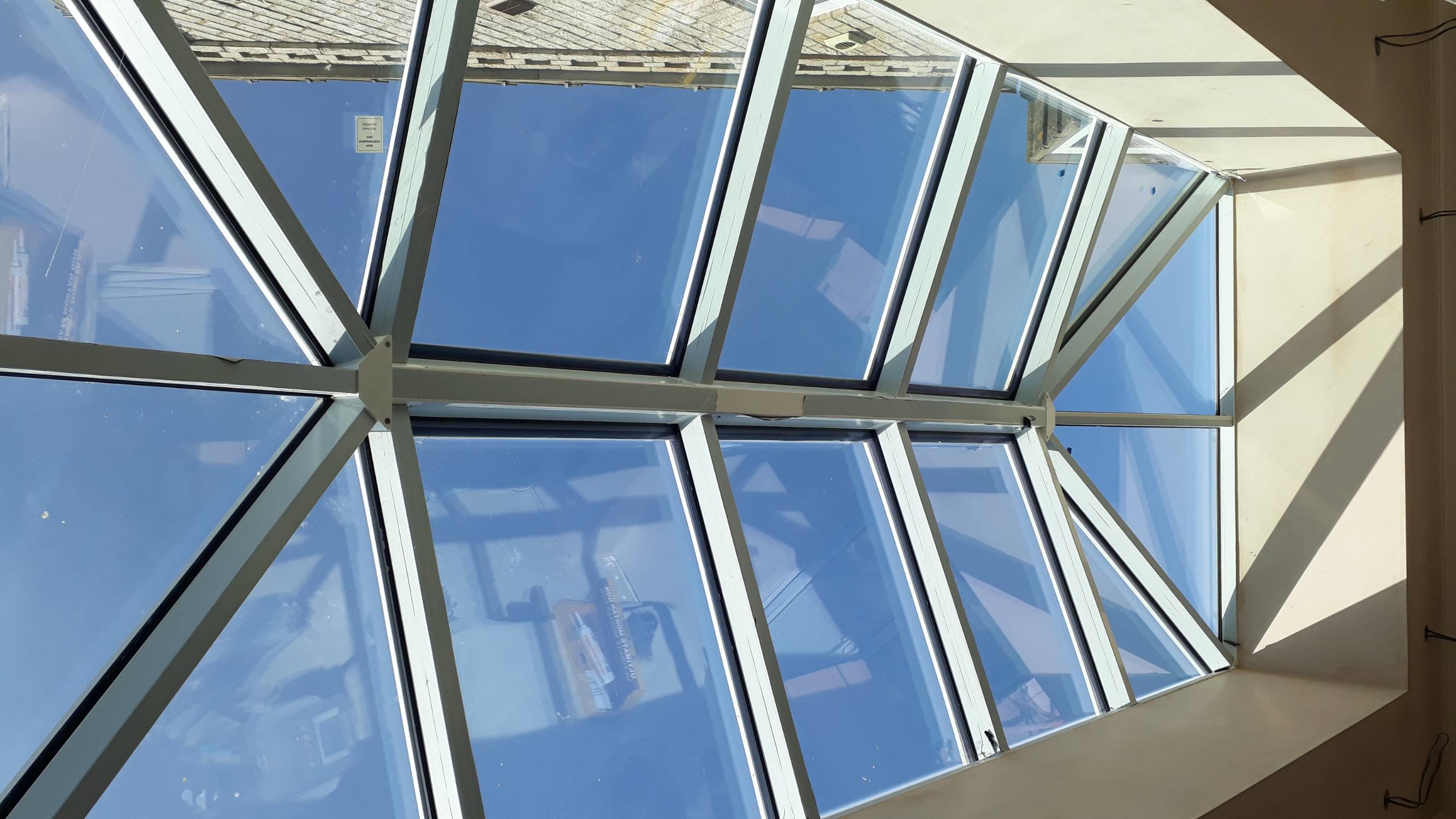

Kestrel Aluminium Roof Lantern System - Aluminium rooflight system

Verified by manufacturer 4 months ago

Kestrel Aluminium Systems

Lantern rooflight system.

Jump to:
+44 (0)1213333575 Website

Application

Residential new build, refurbishment and light commercial.

Description

Designed for both residential and light commercial

applications, our thermally efficient Lantern Rooflight System incorporates a wealth of design options. It is particularly suitable for use in residential properties where it complements the oudoor living effect with the folding, sliding door system.


Maximizing natural light, this fabricator friendly system

has been designed to create a contemporary appearance

with low line ridges and round edge glazing bars.


Features and benefits:

  • Mechanical jointing.
  • Corner joints.
  • Render stop.
  • Pre-machined glazing and hip bars.
  • Sills that echo the residential range of products.
  • Fixed 20 degree pitch to eliminate compound mitre cuts.
  • Thermally broken eaves ridges and bars.
  • Secure.
  • Slim profile.
  • Ease of transportation.
  • On-site assembly.
  • Made to measure.
  • Thermally efficient.

General information

Finish

Anodized

Powder-coated

Mill

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Manufacturer guidance

Maximum length (between upstands): 5800 mm.

Width

Bespoke

Manufacturer guidance

Maximum width (between upstands): 3700 mm.

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

Pyramid.

Size

-

Manufacturer guidance

  • Maximum width (between upstands): 3700 mm.
  • Maximum length (between upstands): 5800 mm.

Frame

-

Material

Aluminium.

Finish

-

Coating

Mill finish.

Etched and anodized Silver AA25.

Guidance for specification option:

other colours on request.

Polyester powder coated.

Guidance for specification option:

See separate list for standard colour range available.

Colour

-

Manufacturer guidance

Single or dual colour profile options available, consult manufacturer for details and insert requirements.

Glazing or infill

-

Type

24 mm double glazed.

32 mm double glazed.

Manufacturer guidance

24 - 32 mm double glazed units.

Construction

40 mm slimline glazing bars.

Pitch

20°.

Sill

Design coordinated to rest of residential range.

Jointing

Mechanical.

Thermal performance

Polyamide thermally broken profiles.

U-value

1.66 W/m²K.

Standards

BS EN 12020-2, BS 3987, BS EN 12206.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

4.0 kg CO₂ eq/kg

Self declared

Recyclability

Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

79 %
