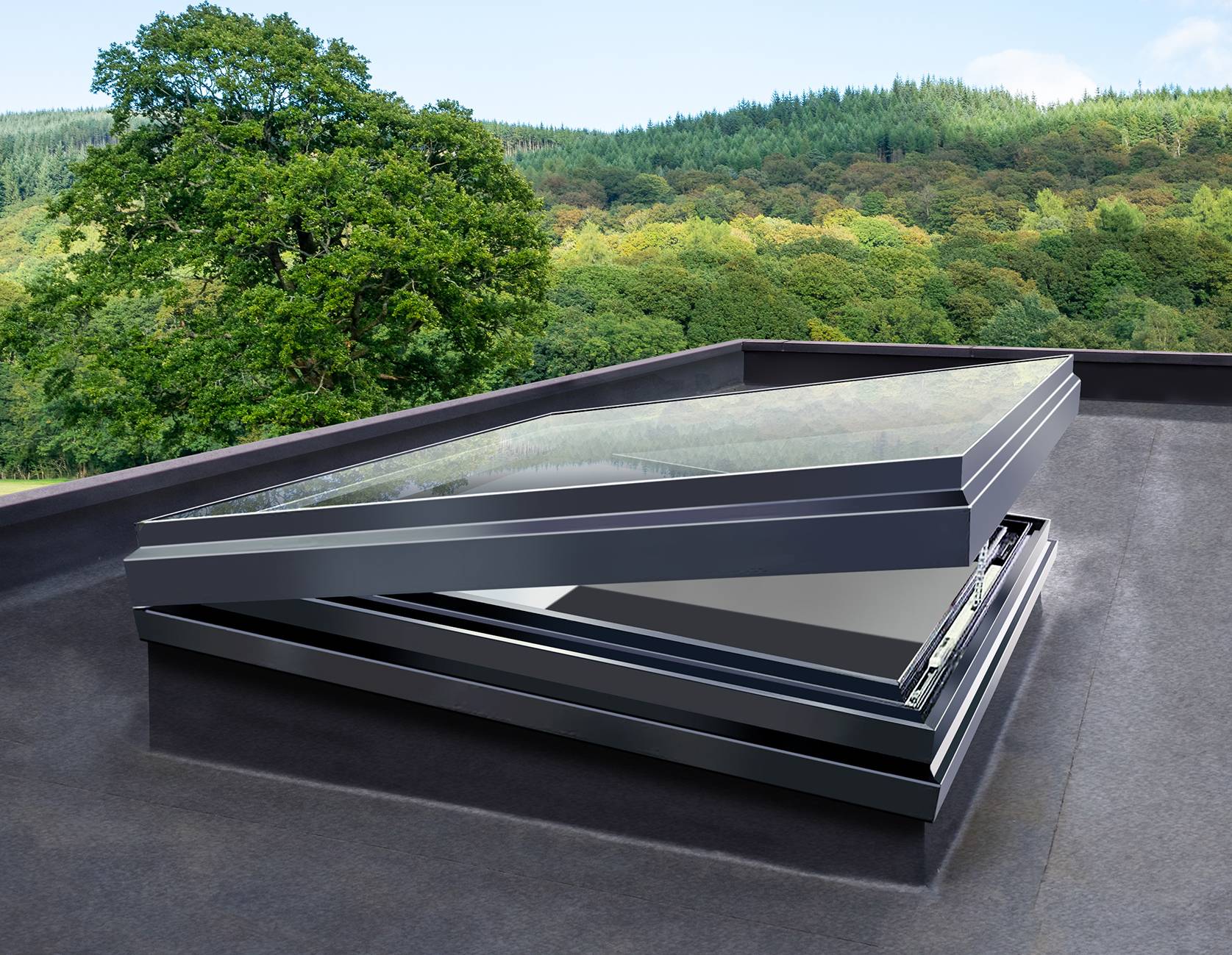

Kestrel Aluminium Opening Flat Rooflight System - Aluminium rooflight system

Verified by manufacturer 4 months ago

28.4 mm unit

Kestrel Aluminium Systems Variant:

Made to measure rooflights.

Jump to:
+44 (0)1213333575 Website

Application

Residential new build, refurbishment and light commercial.

Description

A contemporary but practical Flat Rooflight designed to meet the needs of the modern commercial building using sustainable materials which deliver superior aesthetics and crisp clean lines. Once installed the secure rooflight maximizes natural light providing an elegant appeal to any office, school or hotel whilst offering a steady airflow for ventilation purposes.

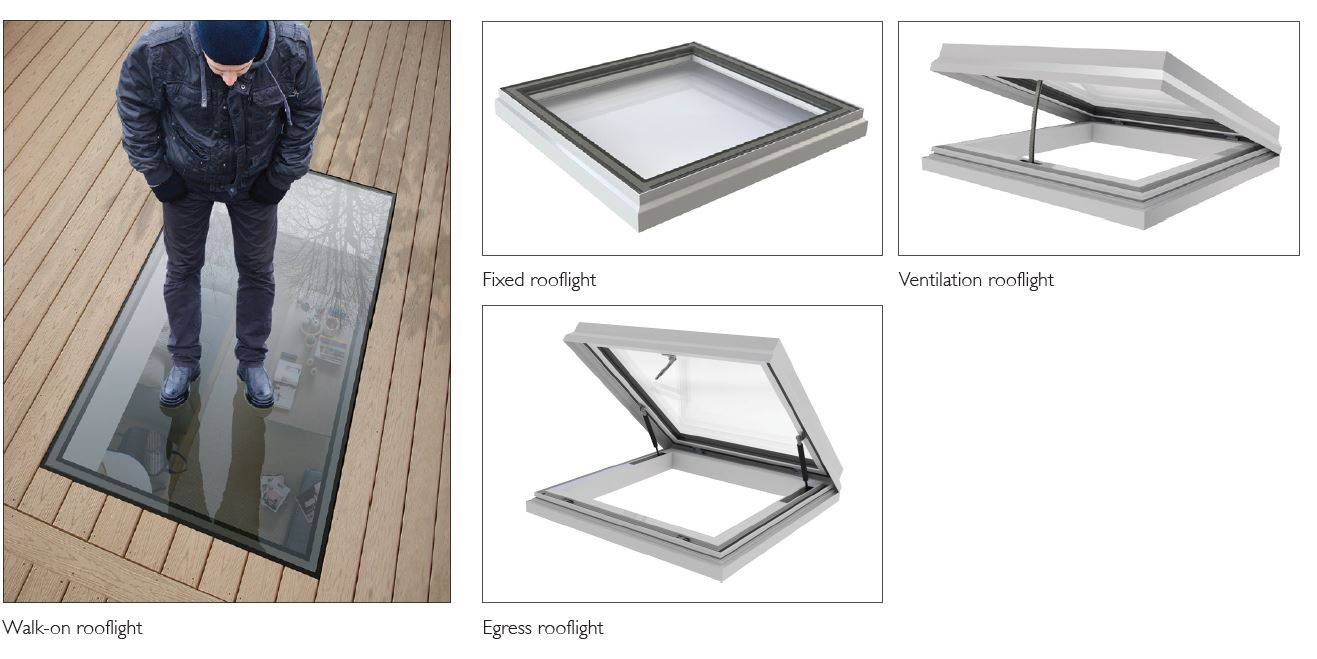

The made to measure rooflight is available in three different designs;


Fixed (Standard or Walk-On):

Perfect for any office allowing natural light to flow freely throughout the building through the roof. Fully thermal efficient and secure it is the perfect way to create a pleasant environment in which to work, rest and play. Available as a Standard or Walk-On option.


Ventilation:

Designed to allow a natural source of ventilation into a working space. Our Ventilation version opens up by 360mm to enable air to filter into any room using fully concealed chain drive actuators to create an airy and light working space.


Egress:

Suitable for any office, school or hotel that may require an alternative means of egress for maintenance purposes. With built in gas springs and espagnolete locking, the rooflight is designed to open up to a 70 degree angle allowing access to the rooftop if required.


Features and benefits:

  • Stepped edge unit.
  • Flush edge unit.
  • Minimal glazing bars.
  • Narrow sightlines.
  • Dual colour powder coating.
  • Removeable PCV cassette.
  • Thermally efficient.
  • Rafter Bar option available for longer runs of fixed glazing.

General information

Color

-

Manufacturer guidance

Available in any RAL or BS colour.

Finish

Anodized

Mill

Powder-coated

Material

Aluminium

Guidance for specification option:

Aluminium profiles are extruded from alloy 6060/6063 T6 complying with the recommendations of BS EN 12020-2:2008.

Shape

Square

Rectangle

Length

Bespoke

Manufacturer guidance

Maximum length:

  • 28.4 mm unit: 2500 mm.
  • 30.8 mm unit: 2600 mm.


Width

Bespoke

Manufacturer guidance

Maximum width:

  • 28.4 mm unit: 1100 mm.
  • 30.8 mm unit: 1500 mm.


Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_03 Aluminium frame roof window unitsPrimary

CAWS

L10/46 Roof windows

L10/460 Rooflights

Specification data - Aluminium frame roof window units

Standard

BS EN 12020-2, BS 3987 and BS EN 12206-1.

Product performance

-

Whole window U-value

1.12 W/m²K.

Guidance for specification option:

based on fixed version with IGU centre pane 1.1W/m2K and upstand 1250mm x 1250mm.

Frame

-

Finish as delivered

-

Coating

Etched and anodized Silver AA25.

Guidance for specification option:

Etched and anodised to BS 3987:1991. Silver AA25 or colours on request.

Mill finish.

Powder coating to BS EN 12206-1:2004.

Guidance for specification option:

Polyester powder coat paint.

Colour

Guidance for specification option:

Insert requirement. Available in any RAL or BS colour.

Glazing or infill

-

Composition

28.4 mm - (6 mm toughened outer, 16 mm cavity, 6.4 mm laminated inner).

Triple glazing.

Guidance for specification option:

44–48 mm with varying make-ups available. Recommended triple glazing make up: 6 mm toughened/14 mm spacer/6 mm toughened/14 mm spacer/ 6.4 mm laminated inner.

Walk on glass.

Guidance for specification option:

44–48 mm with varying make-ups available. Consult manufacturer.

Manufacturer guidance

It is preferable that IGU's be assembled with silicone edge seal to prevent degradation from UV light.

Type

Fixed (standard).

Fixed (walk-on).

Ventilation.

Guidance for specification option:

Opens up to 360 mm using fully concealed chain drive actuators.

Egress.

Jointing

Mechanical.

Size:

1100 x 2500 mm.

Manufacturer guidance

Maximum width x length.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

4.0 kg CO₂ eq/kg

Self declared

Recyclability

Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

79 %

Literature

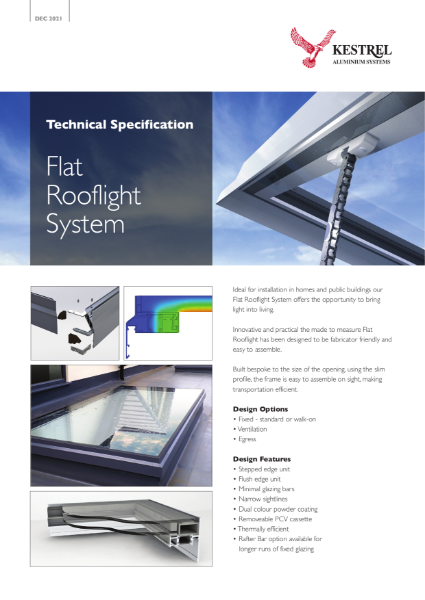

Datasheet Kestrel Flat Rooflight System
