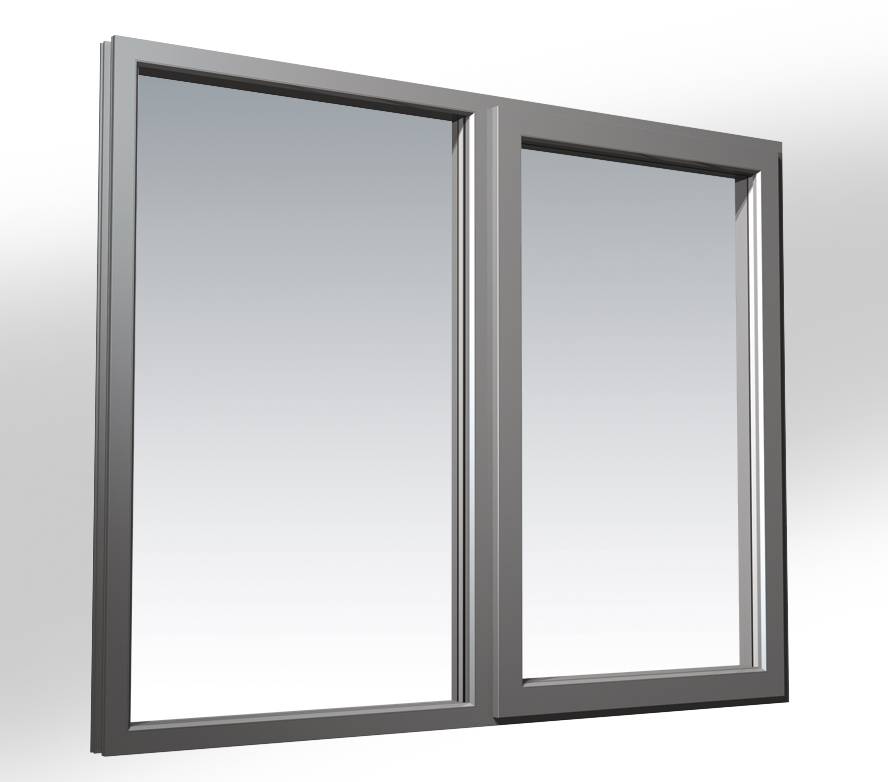

Kestrel Aluminium 70mm Polyamide Window System - Aluminium window system
Verified by manufacturer 6 months ago
A polyamide window system suitable for all types of buildings.
Application
For both residential and commercial application such as homes, schools, offices and leisure facilities. Suitable for new build and refurbishment projects.
Description
A polyamide window system suitable for all types of buildings. The systems allows for construction of open out casement, and flush/ flush vent types. The 70 mm polyamide window system is designed generally to BS 4873: 2009, British standard for aluminium alloy windows.
Construction consists of outer frame and ventilator frames mitred and mechanically jointed using prepared extruded aluminium corner cleats or die cast mechanical corner cleats and die cast mechanical corner chevrons. Infills are secured by clip fit beads externally or internally. Integral mullions and transoms are secured by driving screws into extruded screw ports. Structural coupling mullions and transoms are available to construct larger composite window units. Weather stripping is by purpose designed bubble seal gaskets. Consult the manufacturer's product manual for limitations on frame and vent size and contact the technical department for details of the maximum spans and loadings applicable to the site conditions.

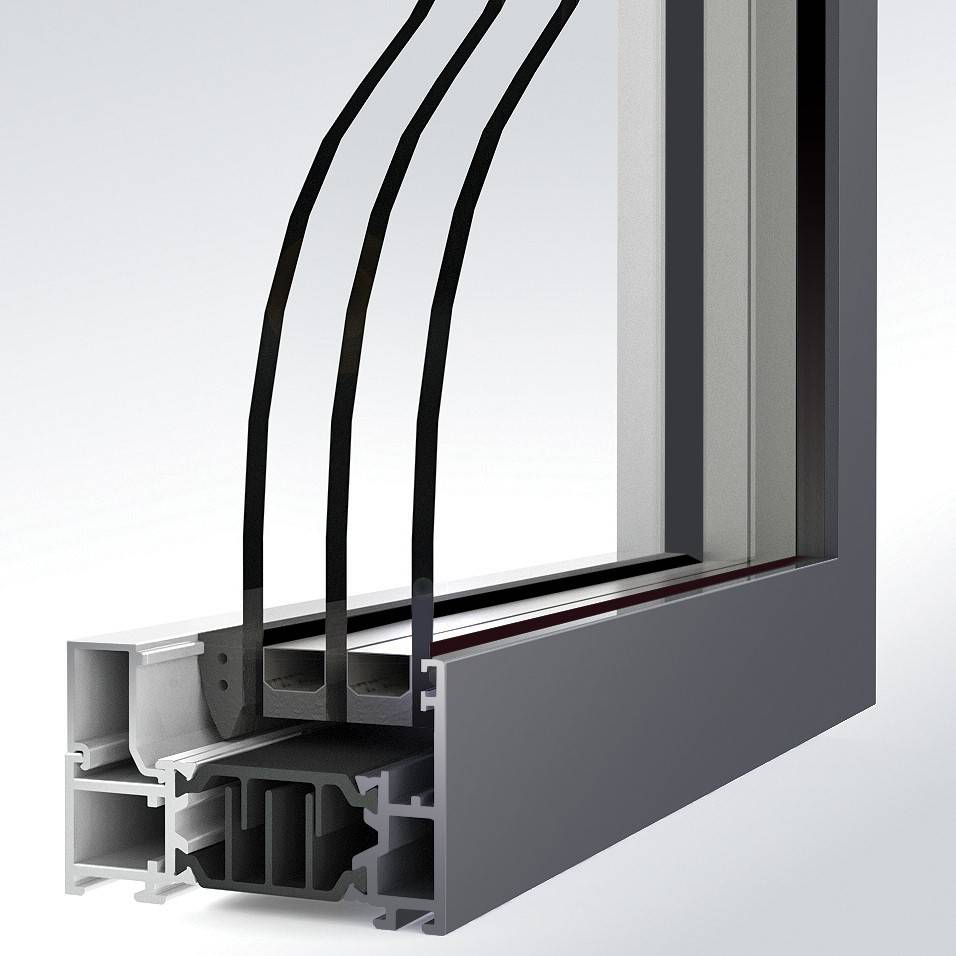

The system will accommodate a range of glazing thicknesses from 24 mm to 40 mm for double and triple glazed units or infill panels. Glass is dry set between TPE/EPDM bespoke gaskets internally and externally.
Features and benefits:
- Slim sightlines.
- Low u-values.
- Thermal performance.
- Flush internal appearance on casement.
- Ergonomic hardware.
- Commonality of design.
- Mechanical cleats.
- Integral trickle vents.
- Ease of fabrication and installation.
- Low maintenance.
- Single or dual colour option.
General information
Color | Silver Other Manufacturer guidanceAnodizing: Silver AA25 or colours on request. Powder coating: Contact manufacturer for available colours. |
Finish | Anodized Mill Powder-coated |
Material | Aluminium Manufacturer guidanceAluminium alloy 6060/6063 T6, complying with the recommendations of BS EN 12020-2:2016 |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidance
|
Height | Bespoke Manufacturer guidanceCasement, top hung: Maximum vent height 1200 mm. Casement, side hung: Maximum vent height 1500 mm. |
Warranty description | Ten year Guidance for specification option: Kestrel Aluminium profiles carry a ten-year warranty. See powder coating guarantee. |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | To BS 4873:2016, BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017. |
Third-party certification | PAS 24:2016. |
Dimensions and configurations | Manufacturer guidanceCasement, top hung: Maximum vent height: 1200 mm. Maximum vent width: 1000 mm. Casement, side hung: Maximum vent height: 1500 mm. Maximum vent width: 1000 mm. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, 1600 Pa. |
Air permeability | To BS EN 1026:2016, Class 4. |
Watertightness | To BS 6375-1, Class 9A. |
Resistance to wind load | To BS 6375-1, Class C4. |
Durability | |
Operation and strength characteristics | To BS 6375-2.Guidance for specification option: Complies with strength characteristics in accordance with BS EN 14351 Result - Pass. |
Load bearing capacity of safety devices | In accordance with BS EN 14351-1.Guidance for specification option: Complies with strength characteristics in accordance with BS EN 14351, Result - Pass. |
Safety | |
Security level | To PAS 24:2016. |
Thermal | |
Whole window U-value | Manufacturer guidanceAs low as 1.2 W/m²K. Consult manufacturer for details. |
British Fenestration Rating Council Window Energy Rating | A. |
Frame | |
Finish as delivered | |
Coating | None.Guidance for specification option: Mill finish. Polyester powder coating to BS EN 12206-1:2004.Anodizing to BS 3987:1991.Mill finish. |
Colour | Manufacturer guidanceAnodizing: Silver AA25 or colours on request. Powder coating: Consult manufacturer for details. Dual colour option available. |
Film thickness (minimum) | 60–80 micrometres. |
Ventilator | None.KAS 231 Trickle Vent.KAS 231.SL.BL Slimline Trickle Vent. |
Glazing or infill | |
Standard | Manufacturer guidanceIn accordance with Building Regulations including Document L and BS 6180 where applicable. |
Requirements | Manufacturer guidanceInsert requirements. Will accept double or triple IGU and infill panels 24–40 mm thick. |
Hardware | KAS 2907, 2908, 2909 friction hinges 13 mm stack height.KAS 240 inline Virage key locking espagnolette handle.KAS 241 Virage Key locking cockspur handle.KAS 2901 Slide a side espagnolette and keeps.KAS 2901 TSL Bi-part espagnolette and keeps.Opening restrictors.Manufacturer guidanceNominal 13.5 mm cavity accepts most proprietary fittings. Non-handed friction hinges on standard configurations. |
Operation | |
Type | Manual. |
Glazing bead | Square KAS6010 (28mm double glazed). Square KAS6011 (34mm double glazed). Square KAS6012 (40mm double glazed). |
Sub sill | 110mm Subcill KAS621/623. 150mm Subcill KAS621/624. 180mm Subcill KAS621/625. 205mm Subcill KAS621/626. |
Handle finish | Black. White. Grey. Graphite. Silver. |
Finish | White Silver. Black. Manufacturer guidanceVisible fittings. |
Corner posts | 90° and 135°. |
Jointing | Mechanical corner and transom/mullion jointing. |
Thermal performance | Polyamide thermally broken profiles - Document L1A, L1B/L2A, L2B compliant. |
U-value | As low as 1.2 W/m²K. |
Watertightness | 600Pa. |
Air permeability | Class 4. |
Wind resistance | Class C4. |
Opening restrictors | Child and Health Care. |
Hardware | Nominal 13.5mm cavity accepts most proprietary fittings, Non-handed friction hinges. |
Security | Multi-point bi-part espagnolette locking, PAS24 compliant. |
Model | Open out casement - top hung. Open out casement - side hung. Fixed. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg CO₂ eq/kg Self declared |
Recyclability | Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % |
Literature
Weather Test Window 70mm
PAS24 Certificate Window 70mm
Datasheet Kestrel 70mm Window System
